Chapter 1 Overview

This chapter contains the following sections :

Overview

alt text

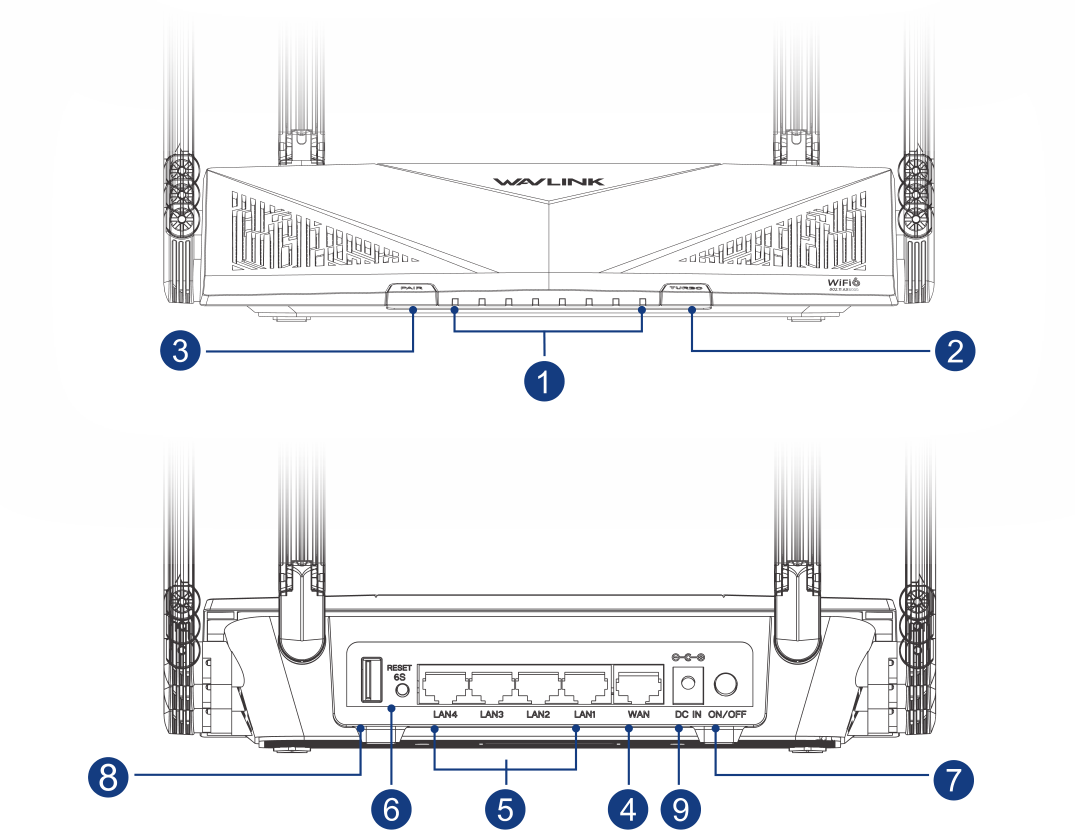

① Status LED

② Turbo Button

③ PAIR Button

④ 1 x 2.5G WAN Port

⑤ 4 x Gigabit LAN Ports

⑥ Reset Button

⑦ Power ON/Off Button

⑧ USB 3.0 Port

⑨ Power IN Port

PAIR Button: Press and hold for 2 seconds to pair with the existing Mesh WiFi system.

Reset Button: Press and hold for at least 6 seconds to reset the router.

Turbo Button: Press this button to clean the router's cache.

LED	Status and Description
WiFi	Solid on: WiFi enabled Off: WiFi disabled
WAN	Blinking: The WAN port is transmitting or receiving data Off: The WAN port is not connected properly
LAN1/2 LAN3/4	Blinking: The LAN port is transmitting or receiving data Off: The LAN port is not connected properly
Status LED	Solid on: The device is on and has network connection Slow flashing: The device is pairing Fast flashing: Turbo button is working Fast flashing: The device has no network connection Off: The device is not turned on
Power	Solid on: Powered on Off: Powered off

Mesh SSID: WAVLINK-Mesh_XXXX
