Chapter 13 NET Tools

This chapter introduces how to check network status, test network connection, and enable Wake-on-LAN function.

It contains the following sections:

• Network Check

• Diagnostics

• Wake On LAN

Network Check​

You can scan the entire network to analyse and optimize network status via network check.

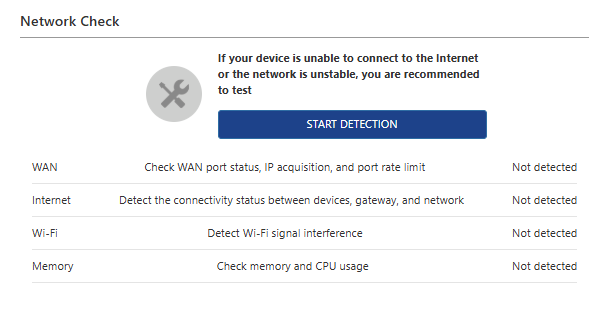

alt text

  1. Access to More>NET Tools>Network Check.

  2. Click on START DETECTION.

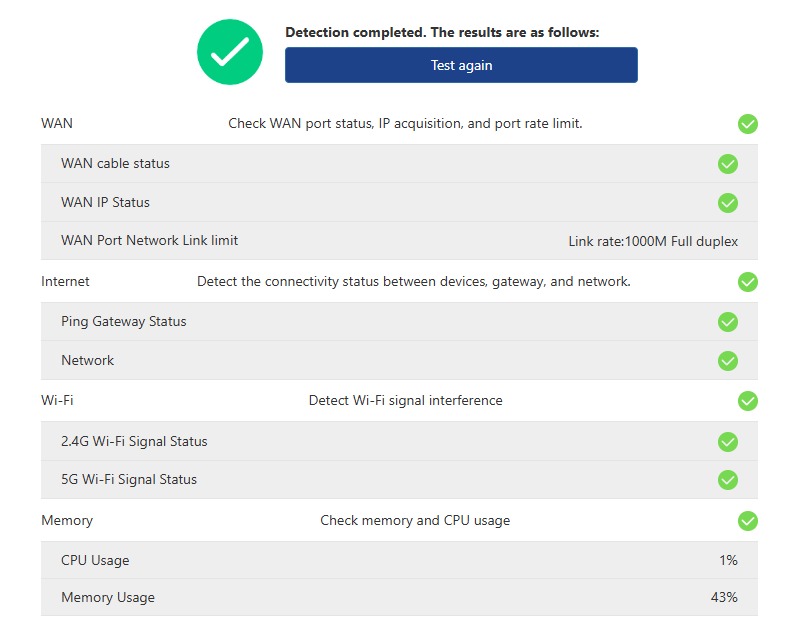

alt text

  1. Click on "ONE-CLICK REPAIR" or manually optimize your network with prompts.

Diagnostics​

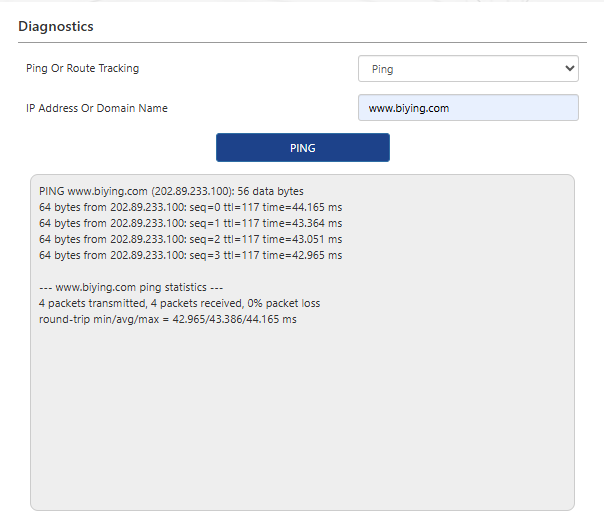

alt text

  1. Access to More>NET Tools>Diagnostics.

  2. In the dropdown list Ping Or Route Tracking, choose Ping or Traceroute.

  • Ping : used for checking the connection between the router and the target device whether normal or not.
  • Traceroute : used for checking the node information between the router and the target device.

  1. Input the IP Address Or Dormain Name that you want to test.

  2. Click on PING button for testing.

Wake On LAN​

Wake-On-LAN (WOL) is a technology where the network interface card (NIC), along with other software and hardware, sends a specific data frame to the NIC that is in standby mode, enabling the computer to start up from a powered-off state.

1 . Access to More>NET Tools>Wake On LAN.

alt text

2 . Click on Add to start Wake-On-LAN setting.

alt text

3 . Add the Discribe of the configuration.

4 . Input the Mac Address of the device that you want to remotely wake up.

5 . Set Time setting and Reboot Time.

6 . Click on SAVE, complete the configuration.
