Chapter 1 Product Basic Info

This chapter contains the following sections:

Overview

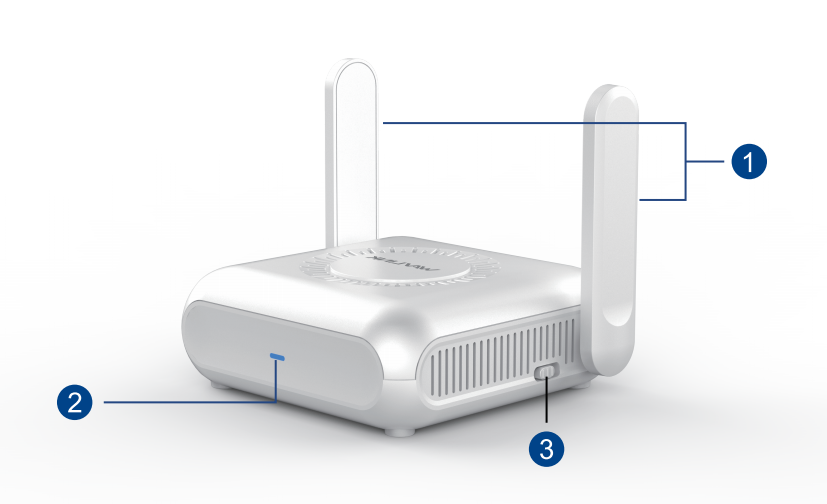

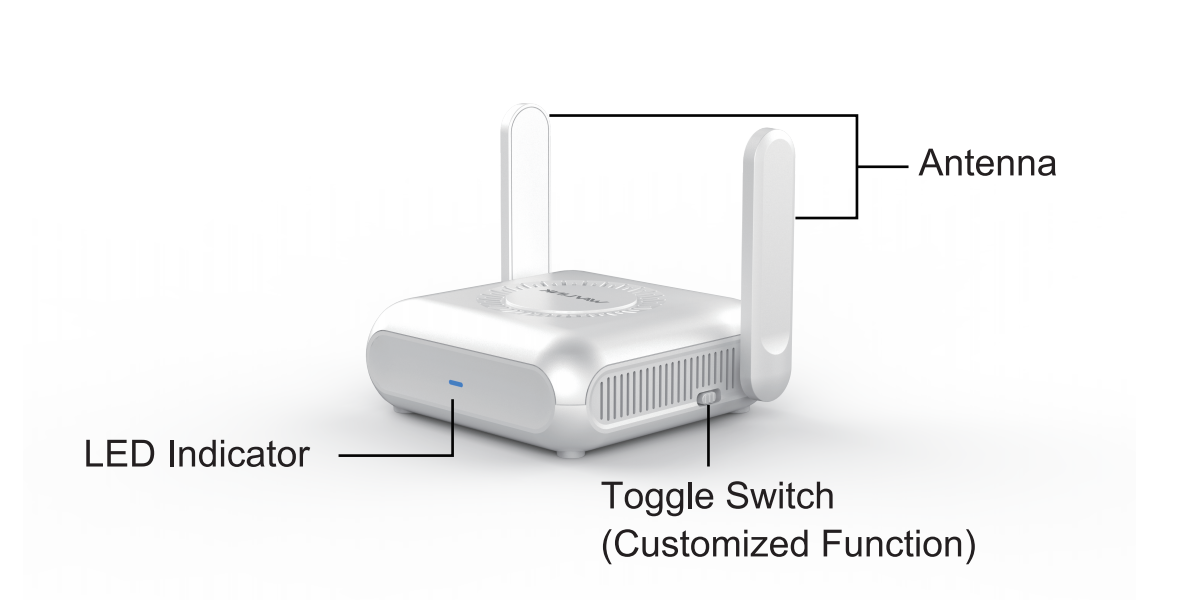

alt text

① Antenna
② LED Indicator
③ Toggle Switch (Customized Function)

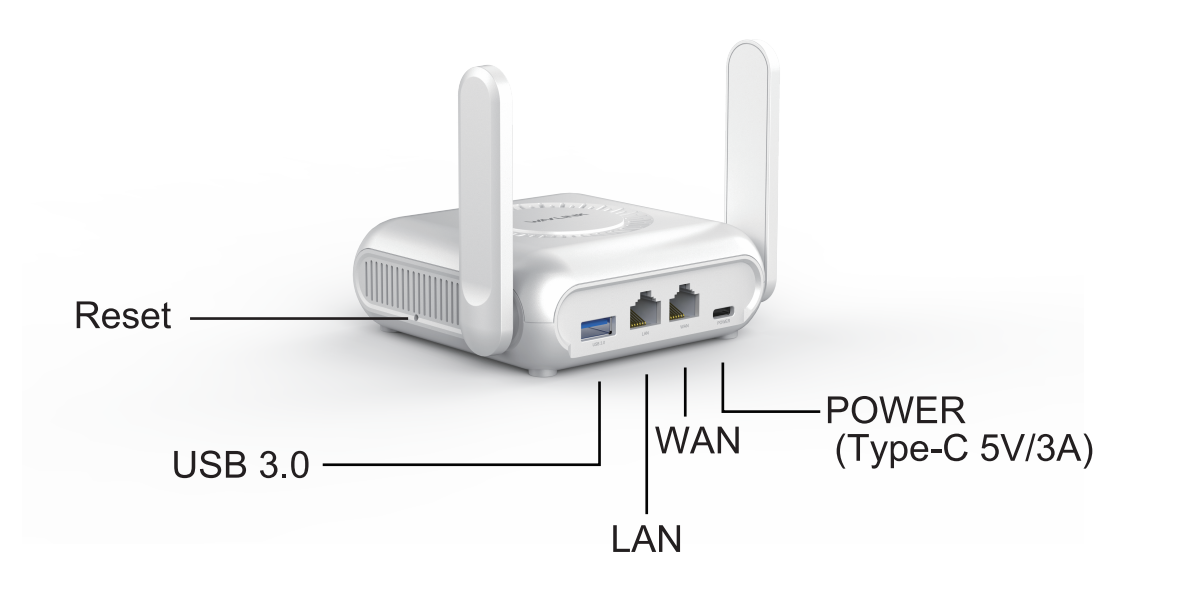

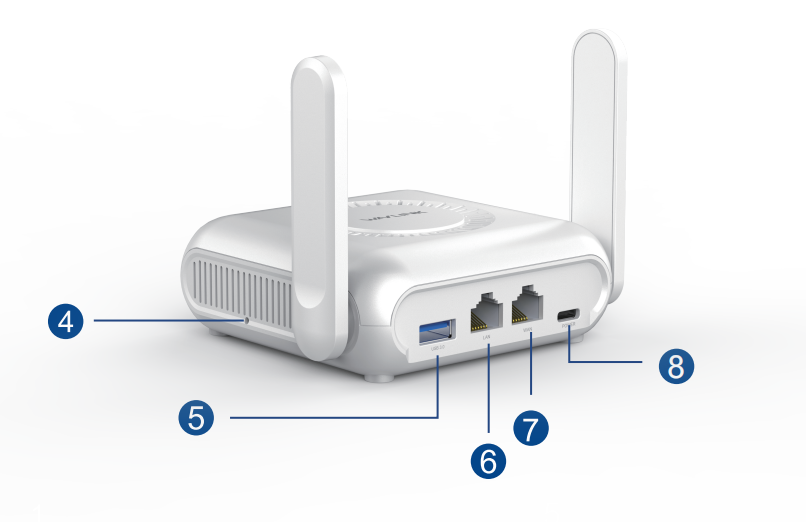

alt text

④ Reset
⑤ USB 3.0
⑥ LAN
⑦ WAN
⑧ Power (Type-C 5V/3A)

Default SSID:
2.4G/5G: WAVLINK_XXXX (XXXX indicates the MAC address)

Default IP: 192.168.20.1

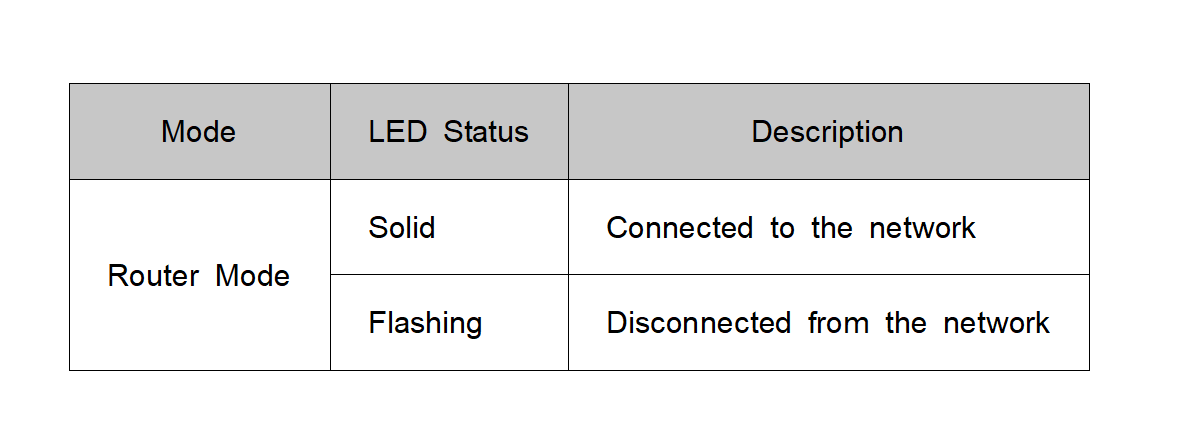

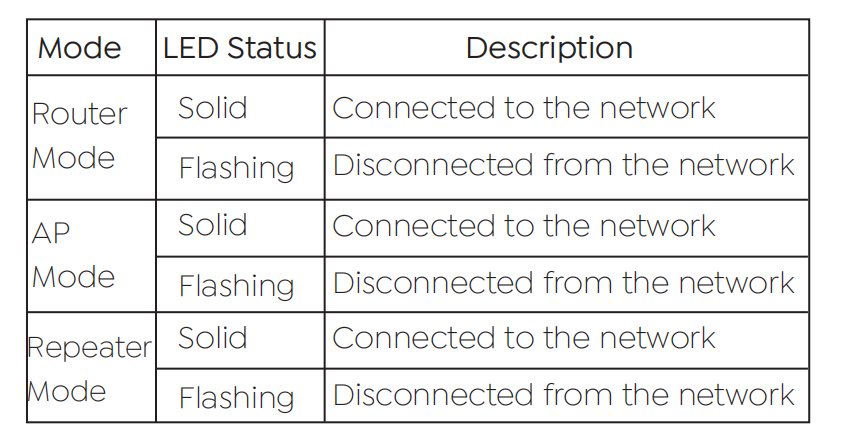

alt text

Toggle Switch Button: A customizable switch button. No specified function by default.

Reset Button: Press and hold it for 6s to reset the device.

Wi-Fi 6 AX3000 Dual Band Router with compact and lightweight design, ideal for travelers.
Wi-Fi 6 speed up to 3000Mbps (2402Mbps@5GHz and 573Mbps@2.4GHz).
Supports enhanced Wi-Fi 6(802.11ax) features: OFDMA, TWT, BSS-Coloring, MU-MIMO, Beamforming.
Supports two Gigabit Ethernet ports(1xWAN, 1xLAN) for high-speed wired connections.
USB 3.0 port for easy sharing of files and multimedia across the network or for connecting external storage devices.
Supports USB tethering to share mobile data connections from smartphones.
Built-in cooling fan for better heat dissipation, ensuring safe and stable performance.
Supports VPN to access your home or office network securely from anywhere.
Supports AdGuard Home, it is free and open source, powerful network-wide ads & trackers blocking DNS server.
Supports Multi-WAN to utilize multiple Internet connections (Ethernet, wireless repeater, and USB tethering) with failover and load balancing.
USB-C power supply for flexible power sources while traveling.
