Chapter 1 Overview

This chapter contains the following sections:

• Overview

• In the Box

• System Requirement

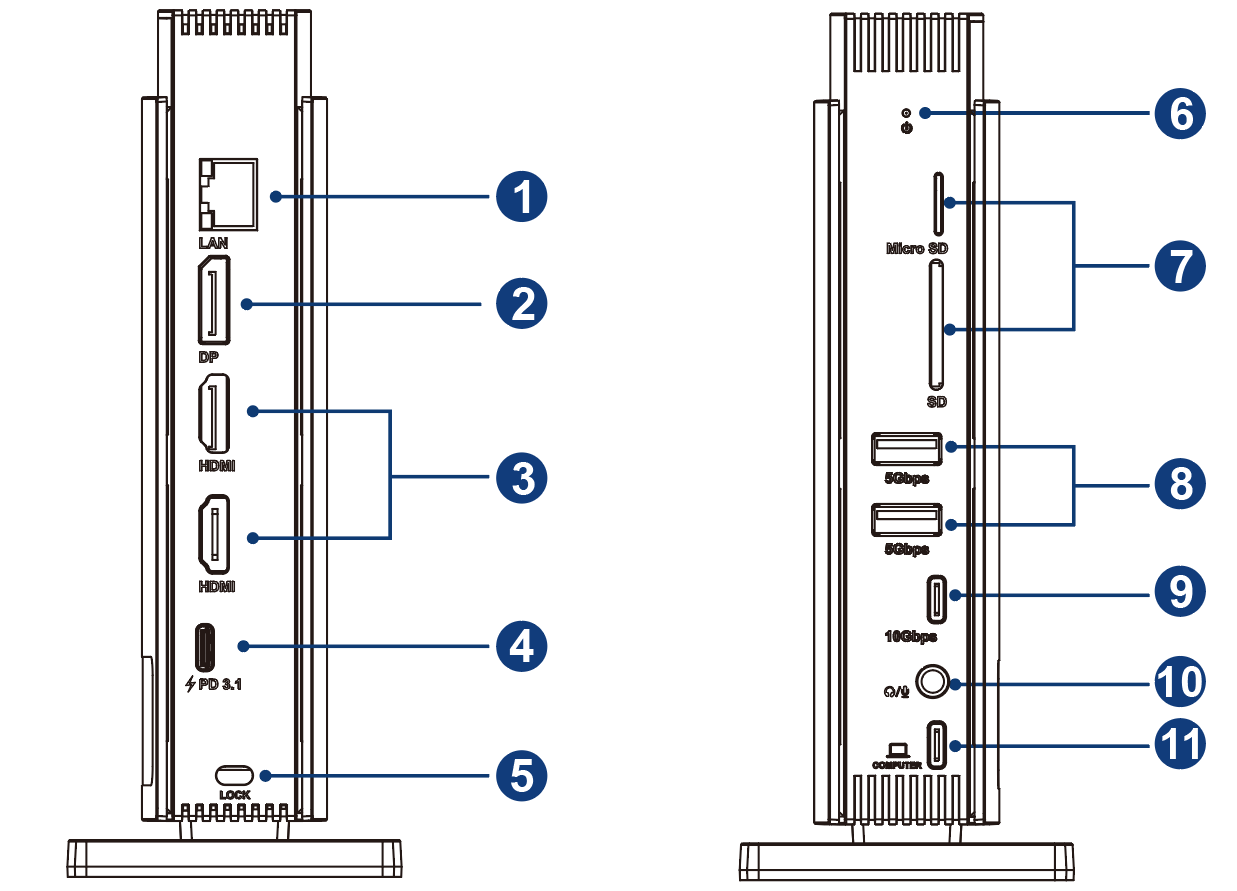

Overview​

alt text

① RJ45 Gigabit LAN

② DisplayPort(Single 8K@30Hz or 4K@144Hz)

③ HDMI(Single 8K@30Hz or 4K@144Hz)

④ USB-C IN(140W MAX)

⑤ Lock

⑥ Power LED

⑦ SD/TF Card Reader

⑧ USB-A 5G

⑨ USB-C 10G

⑩ Audio/Mic Jack

⑪ Upstream USB-C (Host)

In the Box​

  • 1x USB-C Triple Display Docking Station
  • 1x PD3.1 240W USB-C to USB-C Cable with E-Mark(1m)
  • 1x Quick Start Guide

System Requirement​

  • Computer at least has one full-functional USB-C port
  • Microsoft Windows 10/11
  • Mac OS 11 or later (Can extend a different display ONLY)
