Chapter 2 How to Use

This chapter contains the following sections :

Button Operation

Headset Using

Recharging/Replacing the Battery

Button Operation

OperationDescription
Power ButtonLong-press over 3s to turn on/off

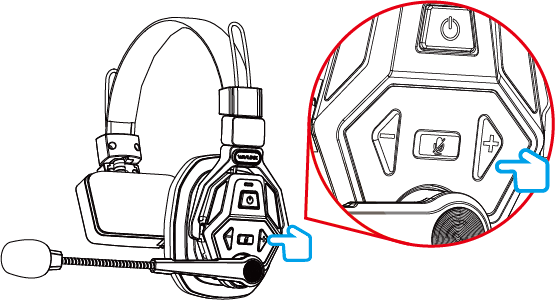

Volume+/Pair ButtonLong-press 3s to pair with the Master Headset, short-press to increase the volume.
Volume-/Clear Button on Master HeadsetLong-press 12s to clear paired Master Headsets information, and the Headset Remote restarts after successful clearing
Short-press to decrease the volume.
Mute ButtonShort-press to mute or unmute the headset.
Mic BoomSwivel over the top 270-degrees, can be worn on either side, and activates mute when upright and communicates when vertical.
Type-C Charging PortCharging the Battery while connecting to an USB-C cable.

Headset Using

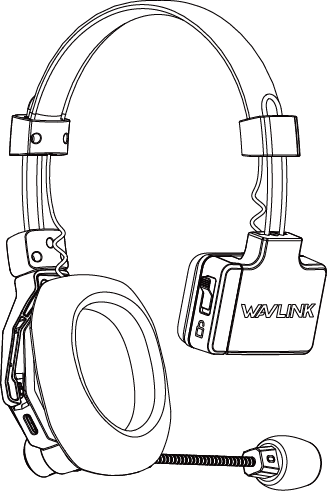

  1. Put on the headset and adjust to a comfortable size and position.

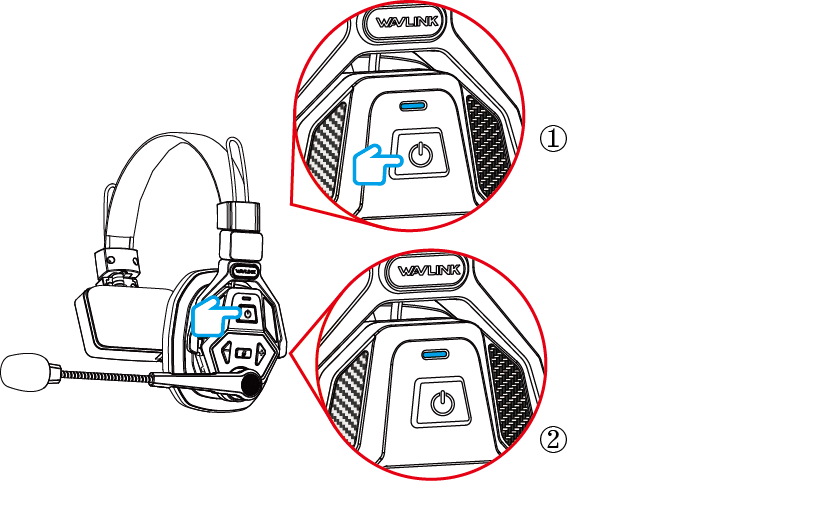

  2. Press and hold the power button to turn on/off the Master/Remote headset.

①Successful Pairing-Solid Blue(Full Charged)

②Failed Pairing-Flashing Blue(Full Charged)
3. They are paired at the factory, the connection will be established once they are powered on. If they are disconnected, try to pair them as the following steps:

3.1 If it is pairing with a repaired or replaced Remote Headset, before pairing with another Remote Headset, long pressing Volume-/Clear Button on the Master Headset for 10s to clear the paird information, the Master Headset automatically switches to restart status.

  • A solid blue light indicates a full charge. In this state, a slow blue flash means no remote headset is detected.

Note:

  • Each Master Headset can be paired with up to 7 Remote Headsets. To add a new Remote Headset, long-press the Pair button on the Master Headset.
  • A Remote Headset can only be paired with one Master Headset at a time. Therefore, before pairing with a new Master Headset, the Remote Headset must first be unpaired from the previous one.
  1. Adjust the boom and position of the microphone capsule.

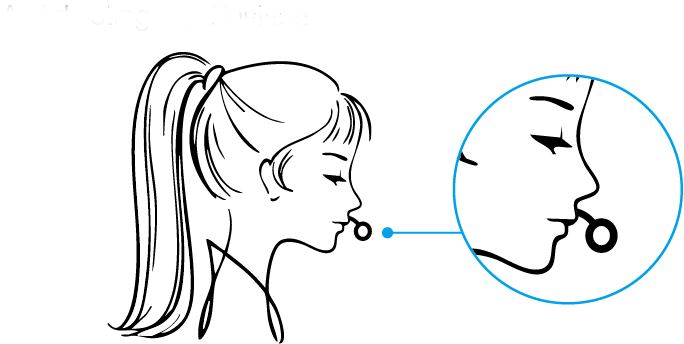

    4.1. Adjusting Mic Position
  • For best sound quality, keep the microphone about 2 cm from your mouth.

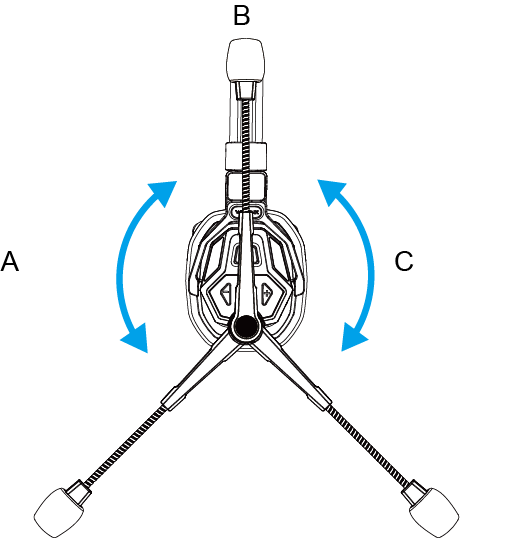

    4.2. Mute or Unmute A/C: Unmute
    B: Mute

Recharging/Replacing the Battery

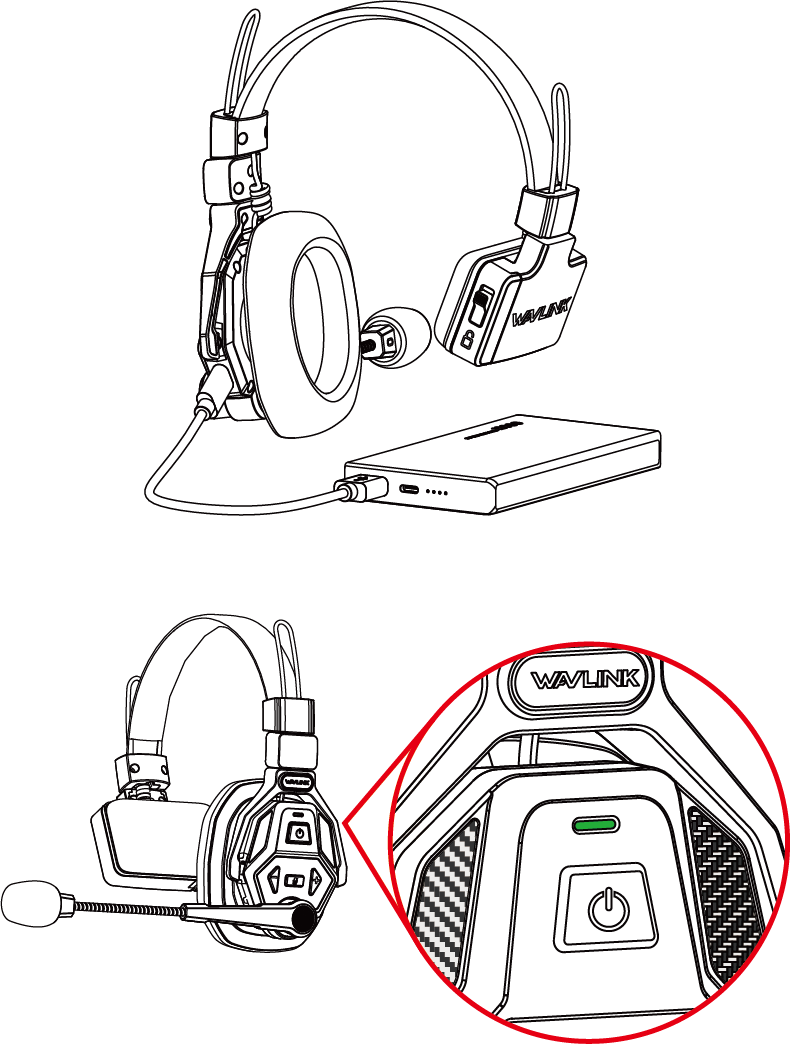

  1. Charge the Battery as the picture shown if it is low:

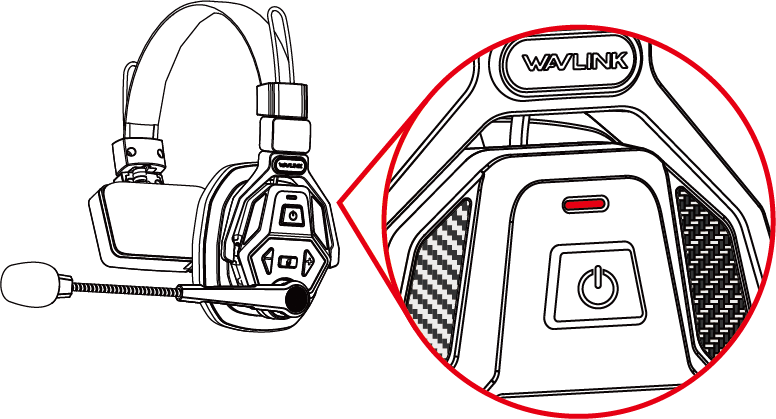

  • The indicator turns solid red when the battery drops below 20%.

  • The headset remains off during charging.

  • The indicator flashes green during charging and turns off when fully charged.
