Chapter 3 Display Resolution
This chapter introduces display resolution of the product.

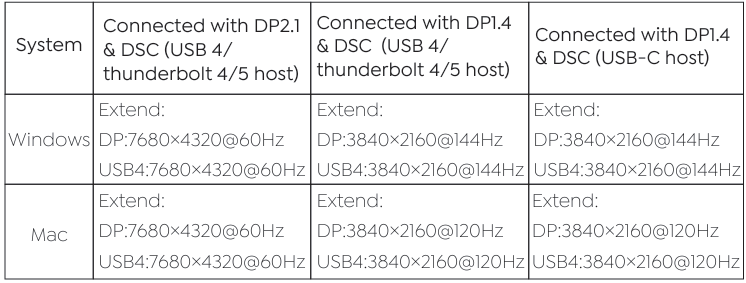

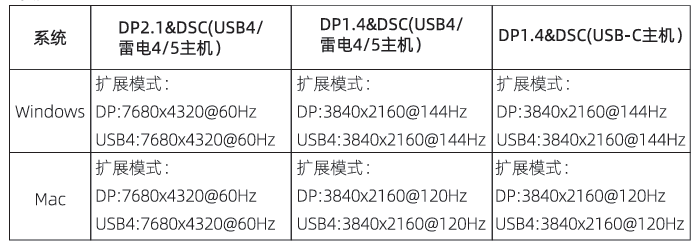

Single Display

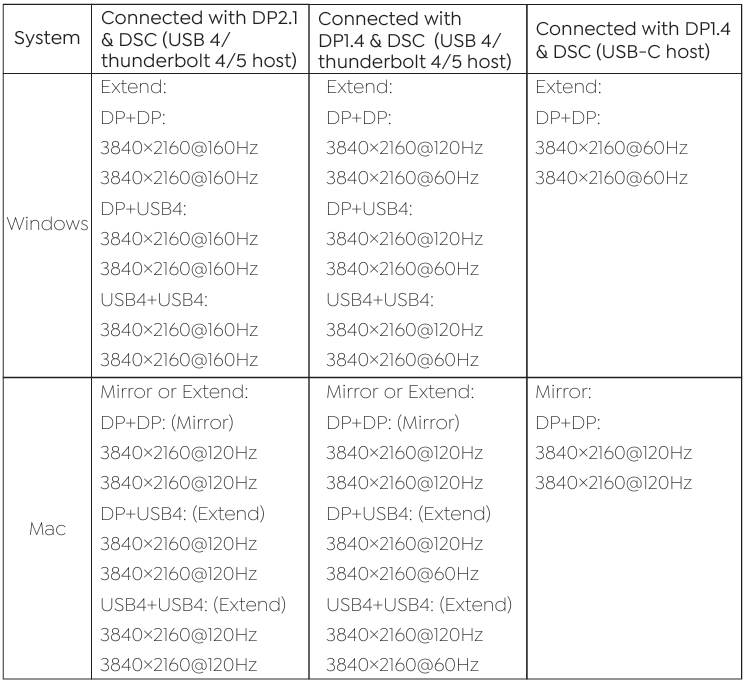

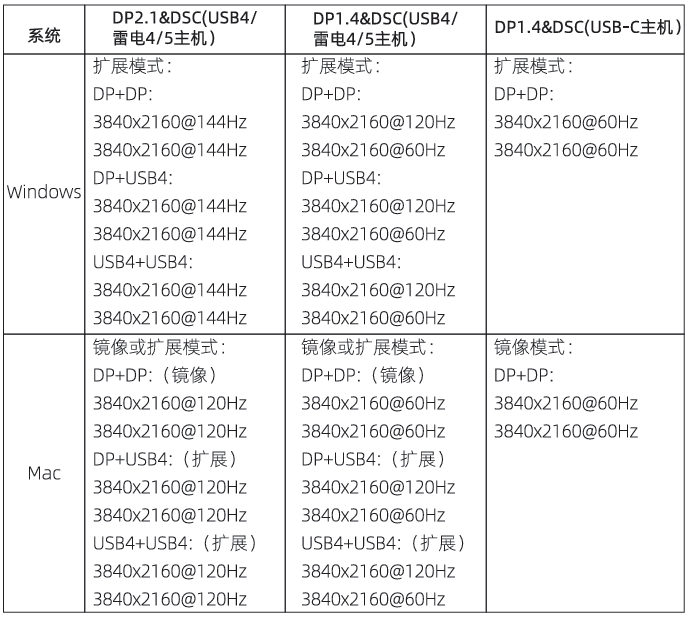

Dual Display

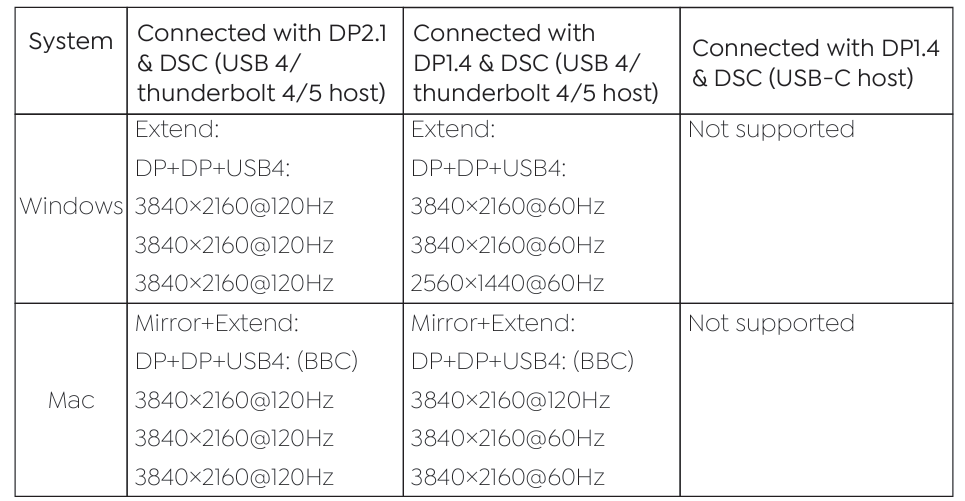

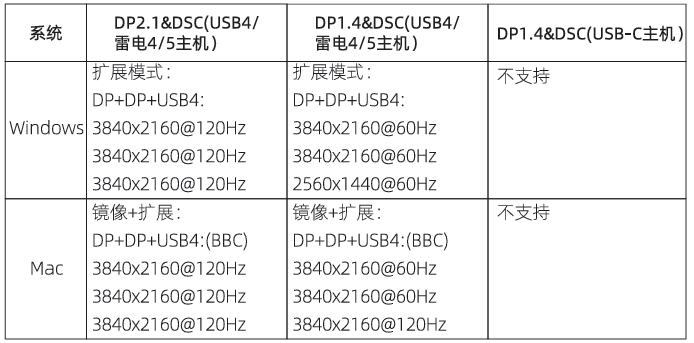

Triple Display
note
When connecting to a computer interface that supports only DP Alt Mode, the device supports dual different display via DP ports or single display via USB4 port. When connecting to the DP1.2 computer, the display resolution may be limited.
Extend means external monitors will show different content. Mirror means monitors will show the same content.
BBC means two monitors will show the same content and another monitor will show different content.
