Chapter 4 How to Use

This chapter introduces the steps of connecting the docking station.

Ensuring the driver has been installed before using this Docking Station.

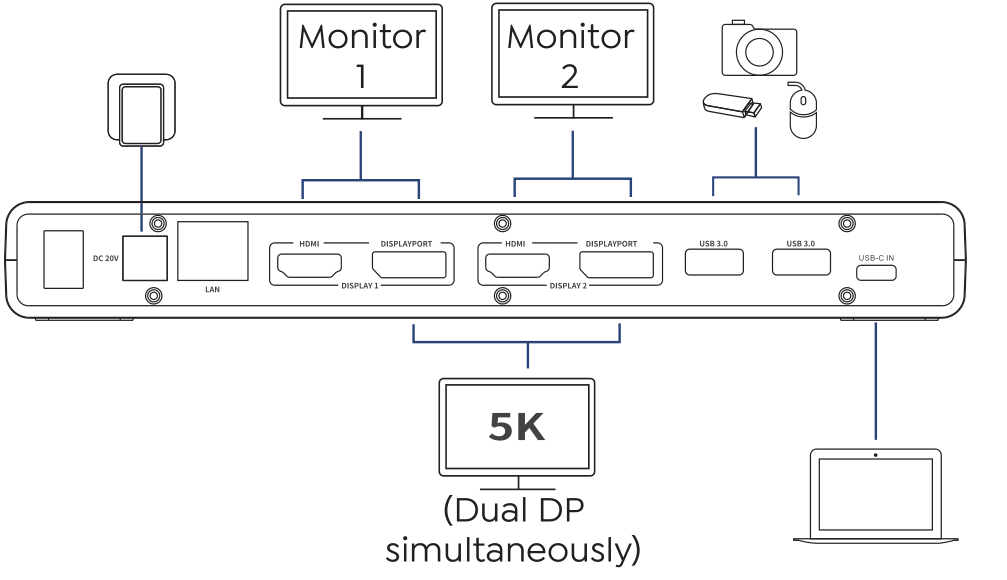

Step 1:

Connect the Power Adapter to the DC In, then plug the Power Adapter into power source.

Step 2

Connect the host laptop to USB-C Upstream port.

Step 3

Connect Display 1(HDMI or DisplayPort) and Display 2(HDMI or DisplayPort) to monitors.

Step 4

Connect USB peripherals to USB-A ports according to your needs.

Note:

1. The DP and HDMI ports in each display group cannot be used simultaneously. Only one port per group is supported at a time.
2. Supports 5K on two displays at the same time via dual DisplayPort.
