Chapter 1 Basic Information
This chapter introduces the docking station's features, appearance, and some basic information.
It contains the following sections :
• Overview
• Features

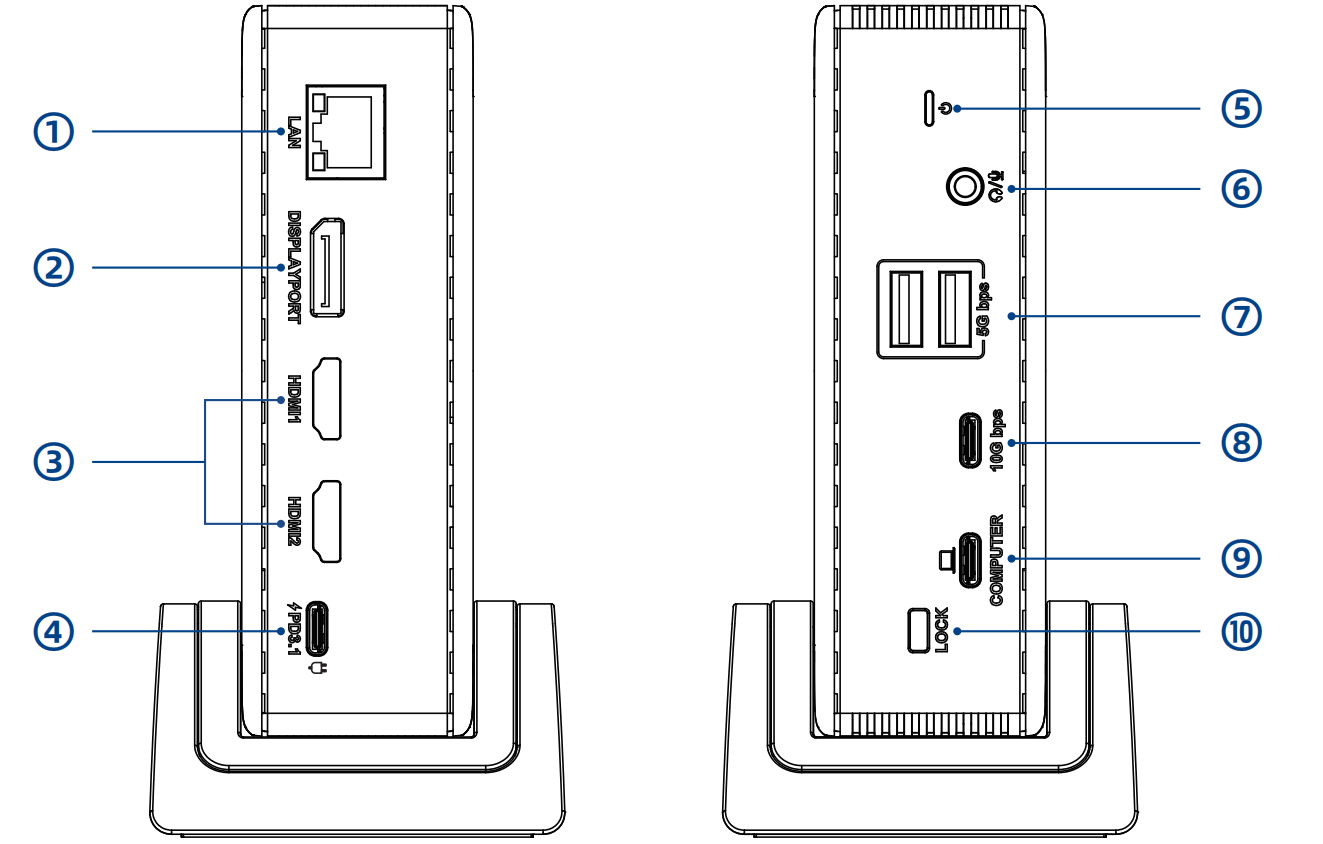

Overview
- ①.RJ45 Gigabit LAN
- ②.DisplayPort (Single 8K@30Hz or 4K@144Hz)
- ③.HDMI (Single 8K@30Hz or 4K@144Hz)
- ④.USB-C IN (140W MAX)
- ⑤.Power LED
- ⑥.Audio/Mic Jack
- ⑦.USB-A 5G
- ⑧.USB-C 5G
- ⑨.Upstream USB-C (Host)
- ⑩.Lock
System Requirement
- Computer at least has one full-functional USB-C port
- Windows 10/11
- MacOS 11 or later (Can extend a different display ONLY)
Features
- Triple Display: Three video ports 2 HDMI+1 DisplayPort.
- High-Definition Visual Experience: Up to single 8K(7680x4320)@30Hz or 4K(3840x2160)@144Hz.
- Get Rid of Power Outage: 140W for the dock, and 125W upstream charging for the Host.
- Stable Wired Ethernet Connection: One Gigabit Ethernet port.
- Fast Data Transfer: Two 5Gbps USB-A ports and one 10Gbps USB-C port.
- 4-Pole Audio Jack: Ideal for calls, gaming, or multimedia without needing separate connectors.
In the Box
-1 x USB-C Triple Display Docking Station
-1 x PD3.1 240W USB-C to USB-C Cable with E-mark (1m)
-1 x AC Power Cable
-1 x PD3.1 140W GaN Power Adapter
-1 x Quick Start Guide
