Chapter 1 Overview

• Overview

• System Requirements

• In the Box

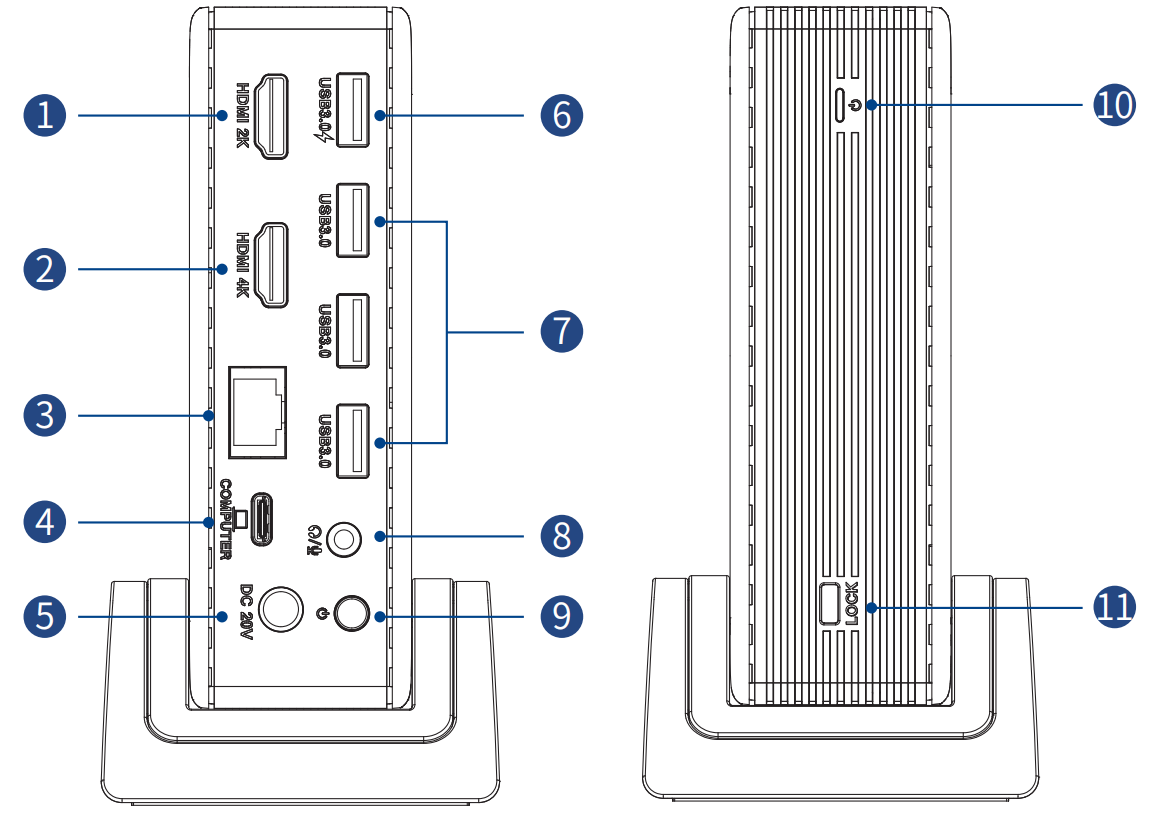

Overview

① HDMI 1 (1920×1080@60Hz)

② HDMI 2 (3840×2160@30Hz)

③ Gigabit port

④ USB-C for PC/laptop

⑤ Power port

⑥ USB 3.0 Type-A port (5Gbps+BC1.2 7.5W)

⑦ USB 3.0 Type-A port (5Gbps)

⑧ 4-Pole audio port

⑨ Power button

⑩ LED

⑪ Lock

System Requirements

• Windows 7/8/8.1/10 or higher
• Mac OS 10.10.x or higher
• Android
• Chrome OS

In the Box

• 1 x USB-C Dual HDMI Universal Docking Station
• 1 x Power Adapter 20V/6.5A
• 1 x AC Power Cable
• 1 x USB-C to C E-Mark Cable with USB-C to USB-A Adapter
• 1 x Quick Start Guide
