Chapter 1 Basic Information

It contains the following sections:

OVERVIEW

IN THE BOX

SYSTEM REQUIREMENT

LED INDICATOR

OVERVIEW

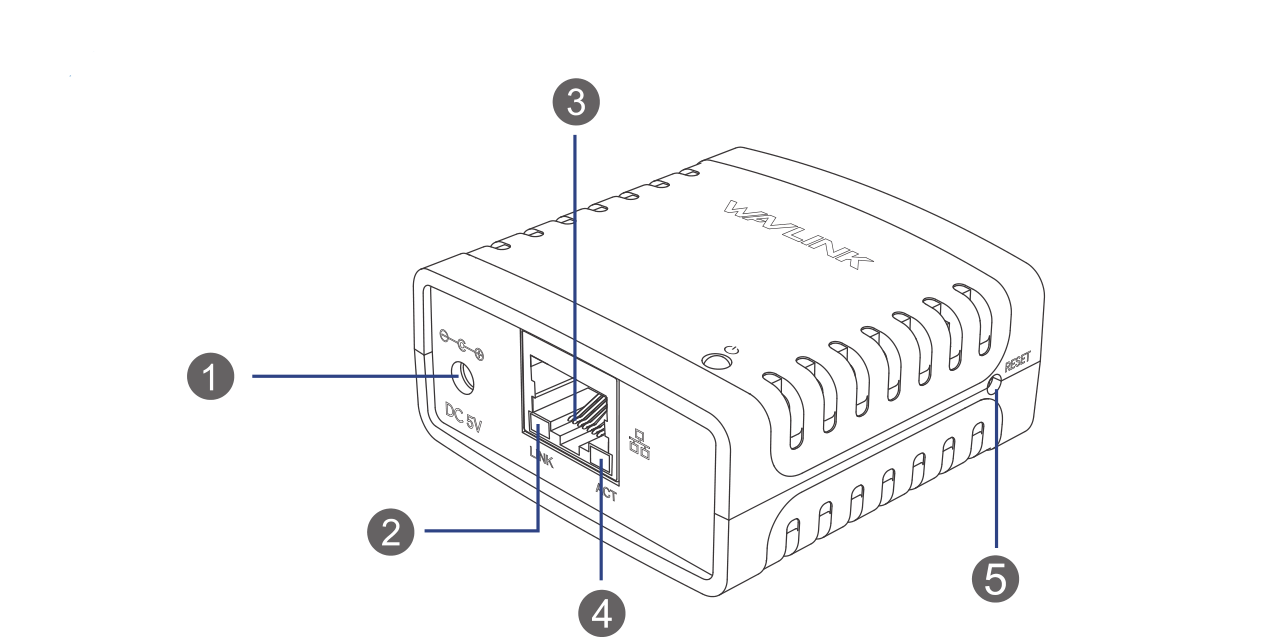

Front View

alt text

① Power Jack

② Link LED

③ RJ45 Ethernet Port

④ Activity LED

⑤ Recessed Reset Button

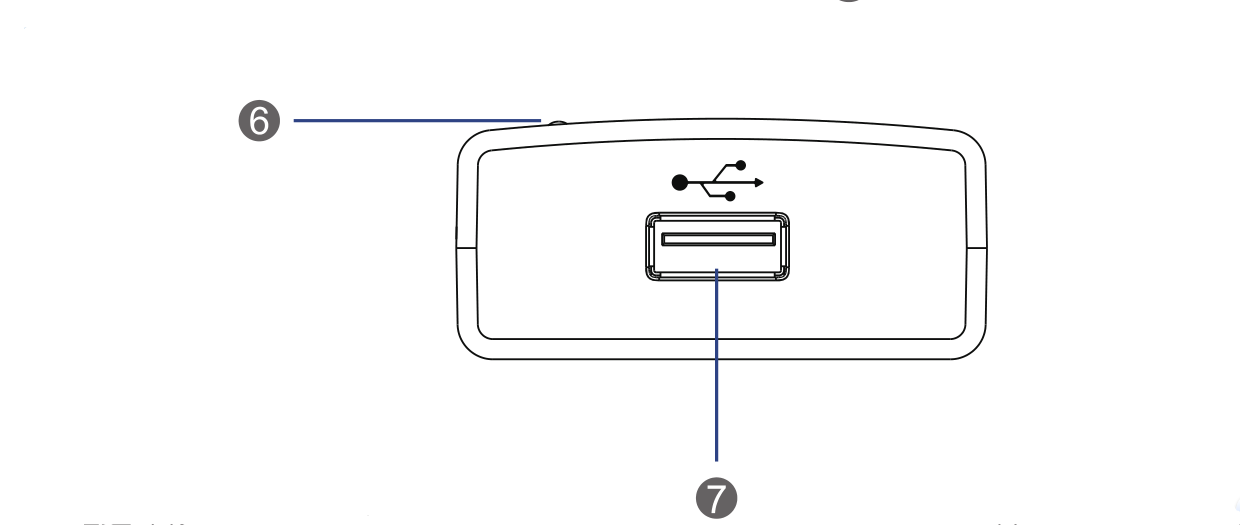

Rear View

alt text

⑥ Power LED

⑦ USB Type-A Port

IN THE BOX

  • 1 x USB 2.0 Network Print Server

  • 1 x Power Adapter

  • 1 x RJ45 Network Cable

  • 1 x Quick Start Guide

SYSTEM REQUIREMENT

  • Windows 7/8/8.1/10/11/XP

  • Windows Server 2003/2008/2012

  • Mac OS 10.7 or later

LED INDICATOR

Power LED

StateDescription
IlluminatedThe printer server is on
Not illuminated/BlinkingAn error has occurred in the printer server or power adapter

RJ45 LEDs

StateDescription
Link LED(green) is illuminatedThe print server has connected to the network
Link LED(green) isn't illuminatedThe print server doesn't connected to the network
Activity LED(yellow) is blinkingActivity is going on the network
