Chapter 1 Basic Product Info
• Overview
Overview

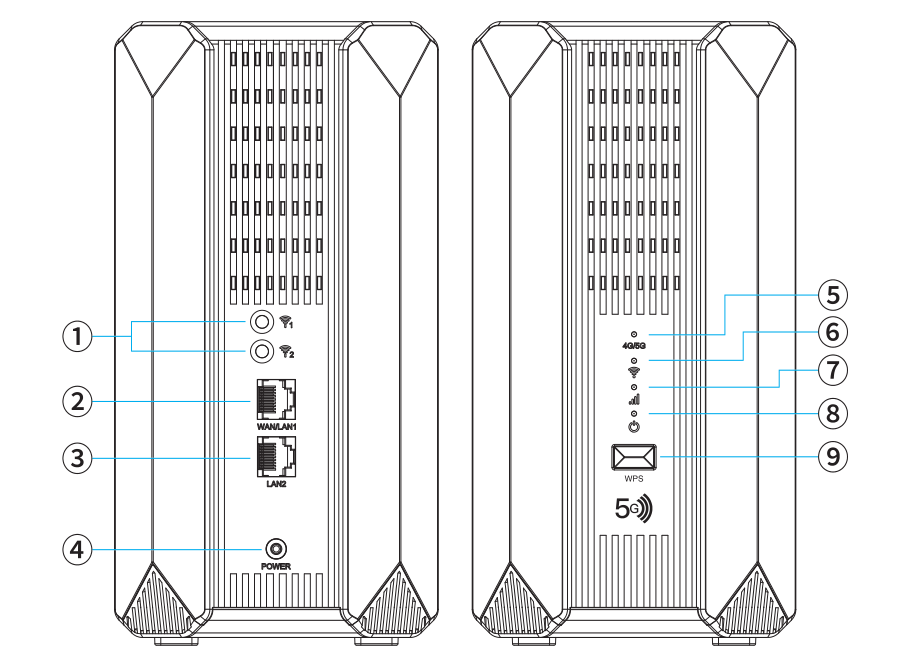

① External 5G cellular antenna port (TS-9)
② WAN/LAN1 port
③ LAN2 port
④ Power port (DC IN)
⑤ 4G/5G LED
⑥ Wi-Fi LED
⑦ SSI(Signal Strength Indicator) LED
⑧ Power LED
⑨ WPS button

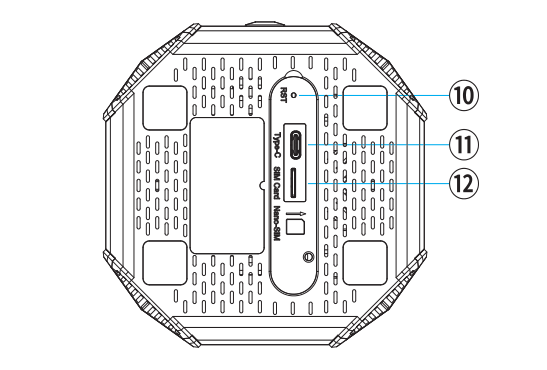

⑩ Reset button
⑪ Type-C port (only for debug)
⑫ SIM card Slot
Reset Button: press and hold for 6 seconds to reset the device. WPS Button: press and hold the WPS button for 2 seconds to enter pairing status, and wait for the terminal device to connect.
In the Box
- 1 x AX3000 Dual-Band 5G NR Router
- 1 x Power Adapter
- 1 x Ethernet Cable
- 1 x Quick Start Guide
Basic Info
Default IP: 192.168.40.1
Login: http://wavlogin.link
Default Password: admin
2.4G/5.8G SSID: WAVLINK-AX_XXXX
Official Website: www.wavlink.com
Technical Support: support@wavlink.com
LED Indicator
| LED | Status | Description |
|---|---|---|
| 5G/4G LED | Green | The device is connected to 5G network |
| 5G/4G LED | Blue | The device is connected to 4G network |
| 5G/4G LED | OFF | 5G/4G not working or SIM not inserted |
| WiFi LED | Green | Dual band WiFi works normally or When 2.4GHz WiFi is turned off, 5.8GHz WiFi works normally |
| WiFi LED | Blue | When 5.8GHz WiFi is turned off, 2.4GHz WiFi works normally |
| WiFi LED | Flashing | WPS function is in progress |
| WiFi LED | OFF | 2.4GHz and 5.8GHz WiFi are both turned off |
| SSI LED | Green | The signal strength is excellent |
| SSI LED | Blue | The signal strength is good |
| SSI LED | Red | The signal strength is weak |
| SSI LED | OFF | 5G/4G not working or SIM not inserted |
| Power | Green | Power on and working properly |
| Power | OFF | Power OFF |
