Configuration

This chapter introduces steps for setup guide:

Step 1: Connecting the Router

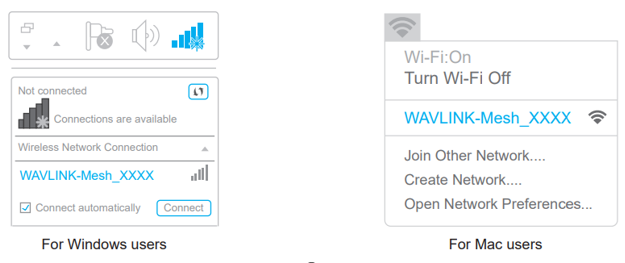

1.1 Via Wireless

Turn on your Wi-Fi, search SSID of this product on your devices (smartphone, tablet computer, laptop, etc.), and connect it, then you can start configuring.

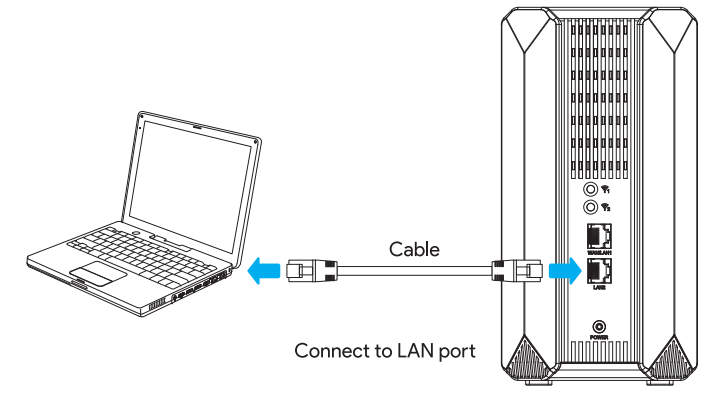

1.2 Via Cable

Connect the Ethernet cable to your PC/laptop and LAN port of the product, then you can start configuring.

Step 2: Logging in to Management Page

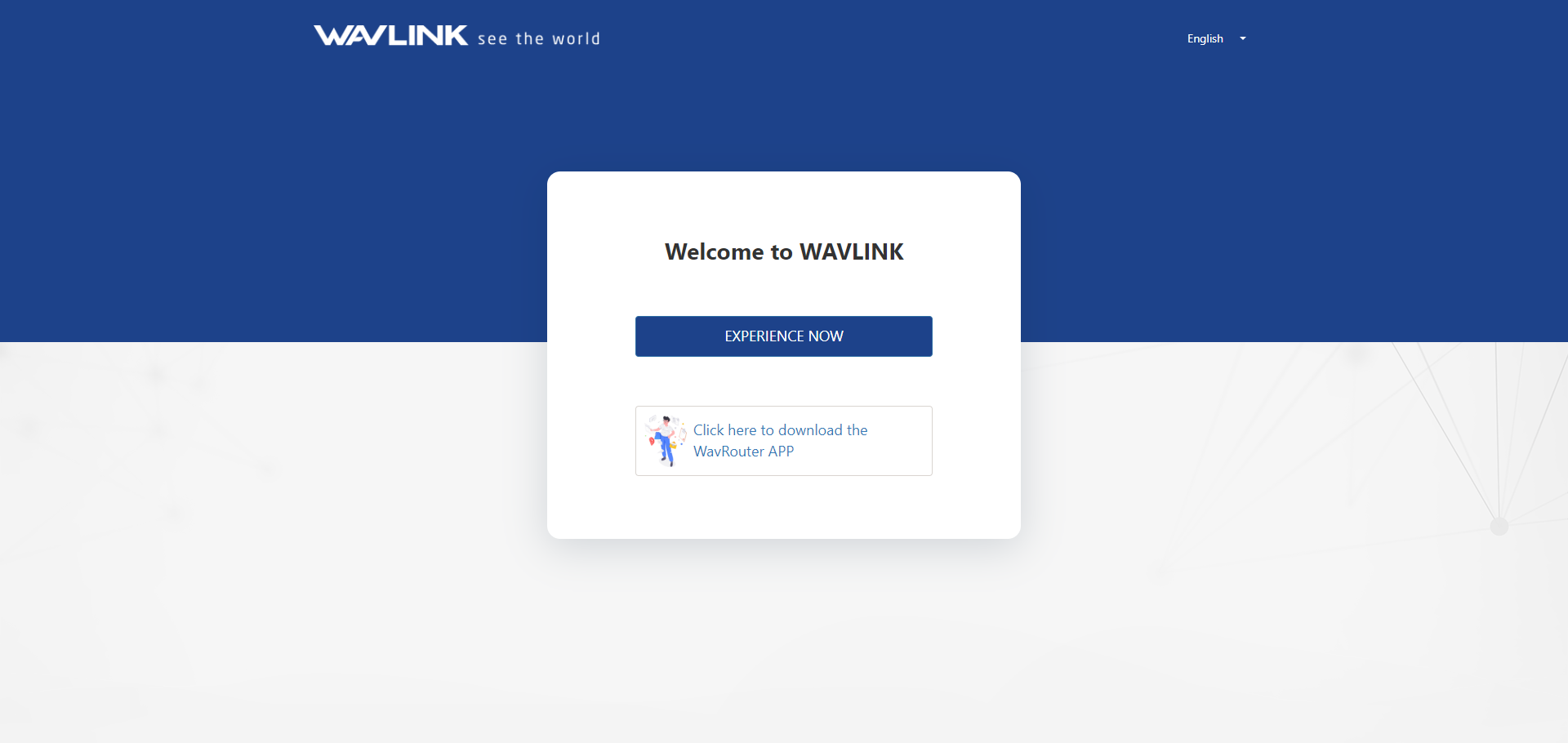

Launch a web browser and enter http://wavlogin.link in the address field.

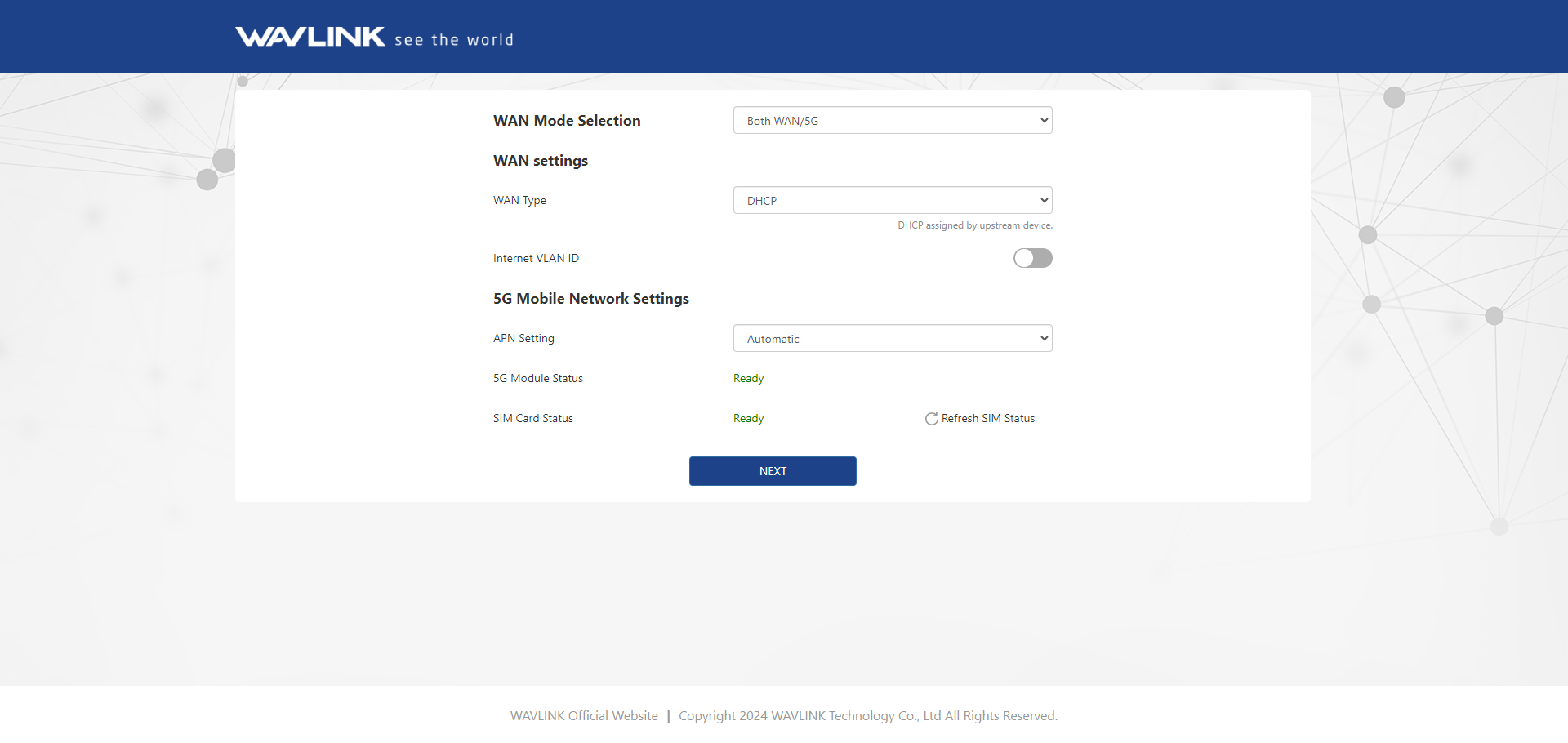

Step 3: Selecting WAN Mode

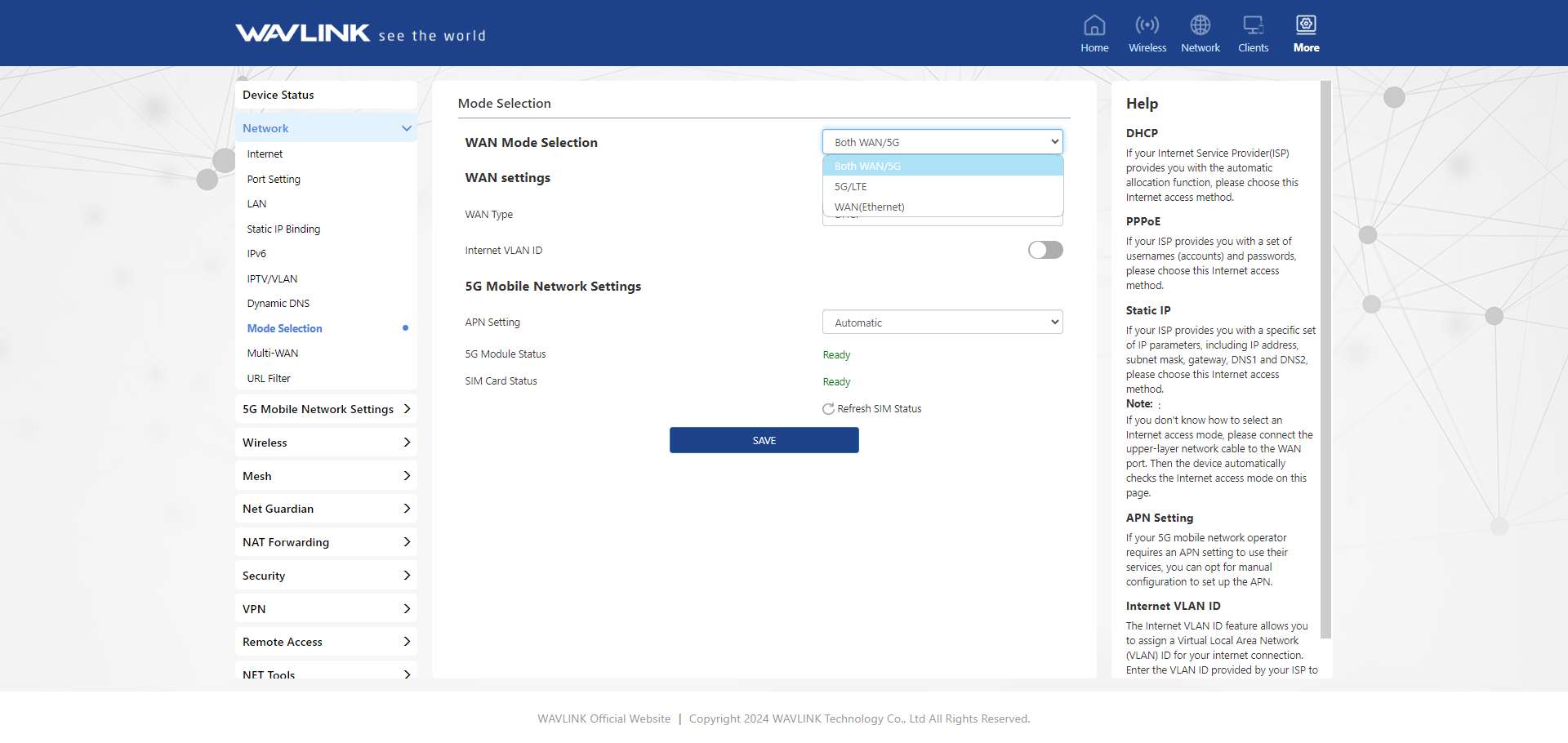

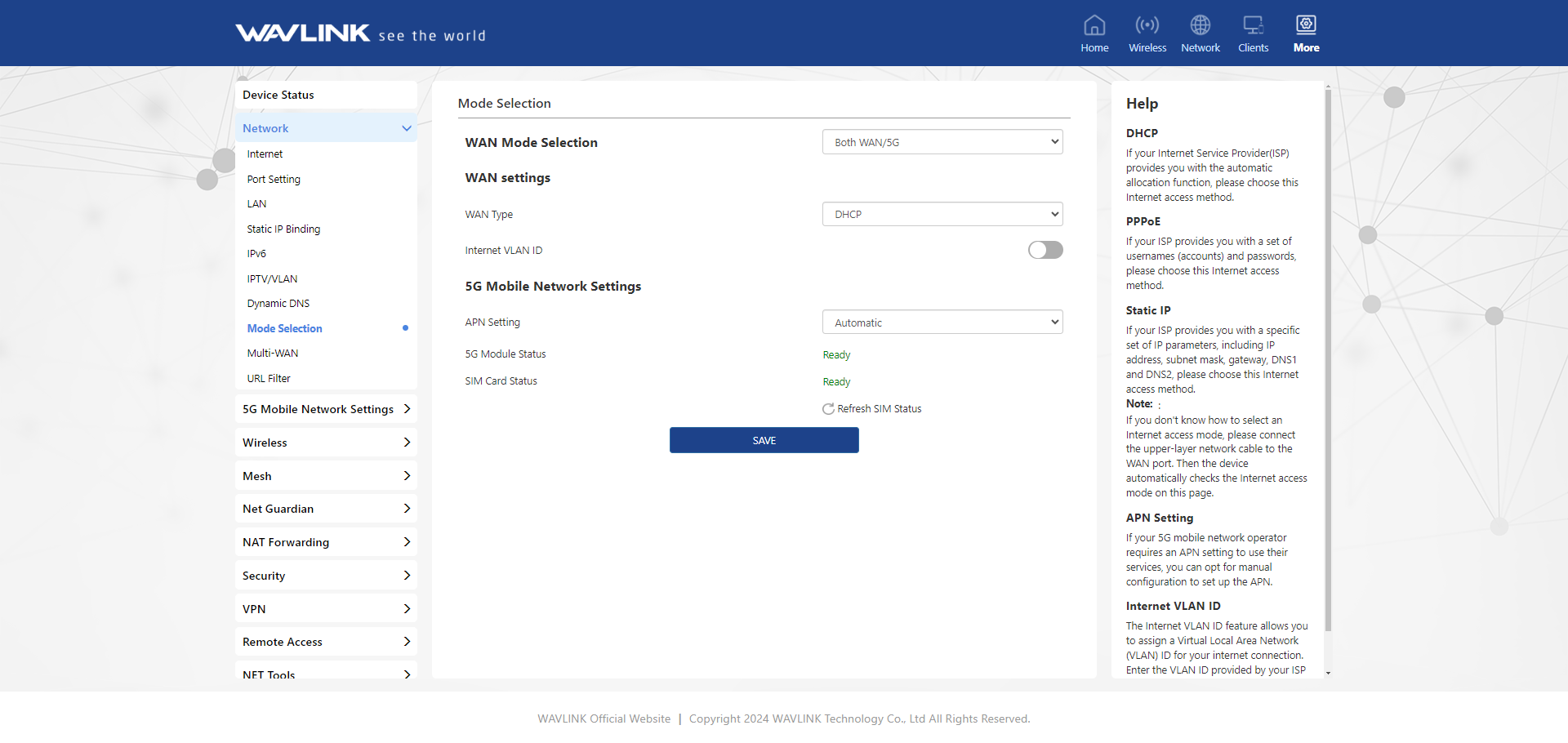

Select “Both WAN/5G” for "WAN Mode Selection", then click “NEXT”.

Note: If you choose Option I, please ensure the SIM Card is inserted and refresh SIM status.

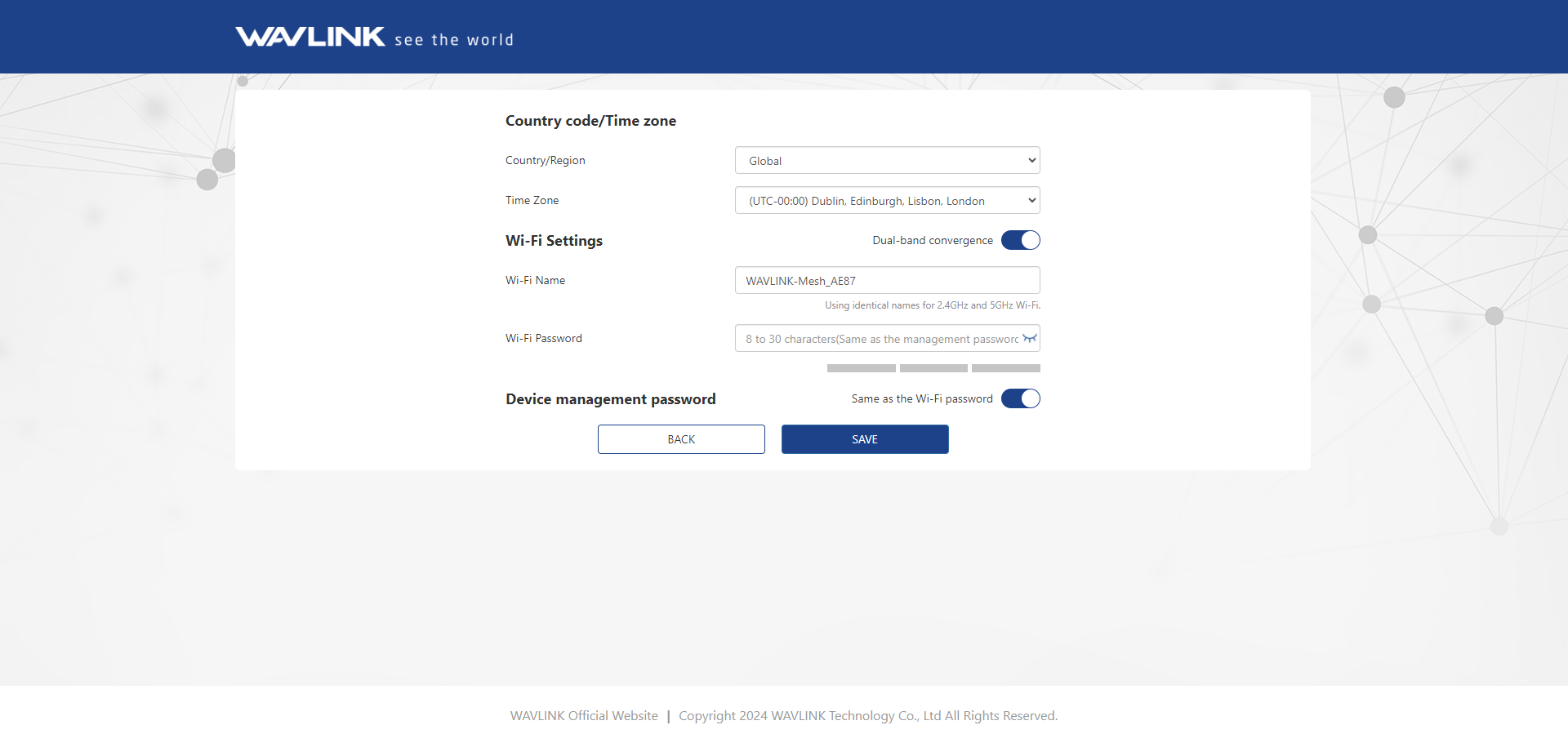

Step 4: Basic Settings

Select your Country/Region, and Time Zone; for your network security, we suggest that you set a new login password following the rules accordingly.

Note: The Dual-band convergence switch is on by default. 2.4G WiFi and 5G WiFi use the same SSID and password. Turning off the Dual-Band convergence switch allows you to set the SSID and password for 2.4G WiFi and 5G WiFi separately.
