Overview

More Translations Download PDF

This chapter contains the following sections:

• Overview

• LED Indicators

• Basic Info

• In the Box

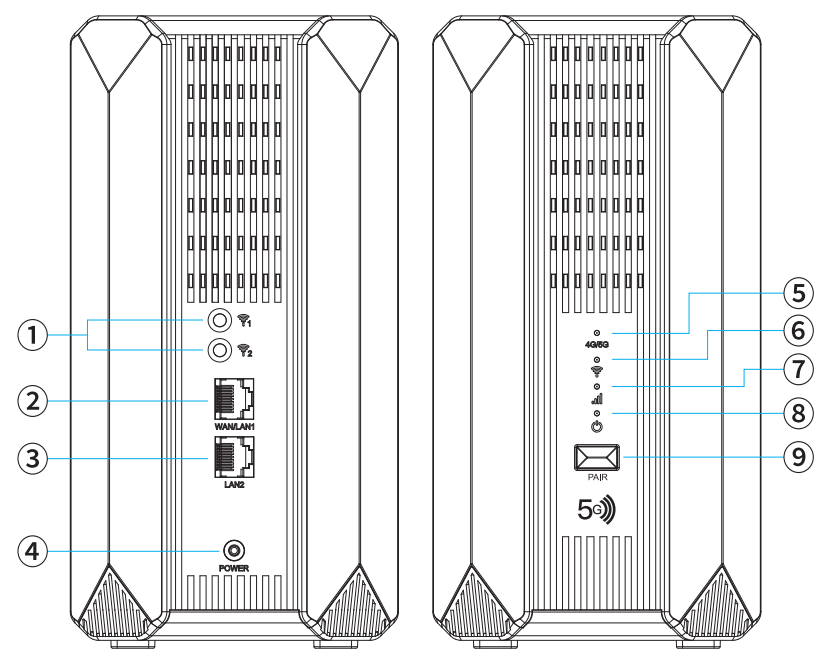

1. Overview

① External 5G cellular antenna port (TS-9)

② WAN/LAN1 port

③ LAN2 port

④ Power port (DC IN)

⑤ 4G/5G LED

⑥ Wi-Fi LED

⑦ SSI (Signal Strength Indicator) LED

⑧ Power LED

⑨ PAIR button

⑩ RESET button

⑪ SIM card slot

RESET Button: Press and hold for 6 seconds to reset the device.

PAIR Button: Press and hold for 2 seconds to pair.

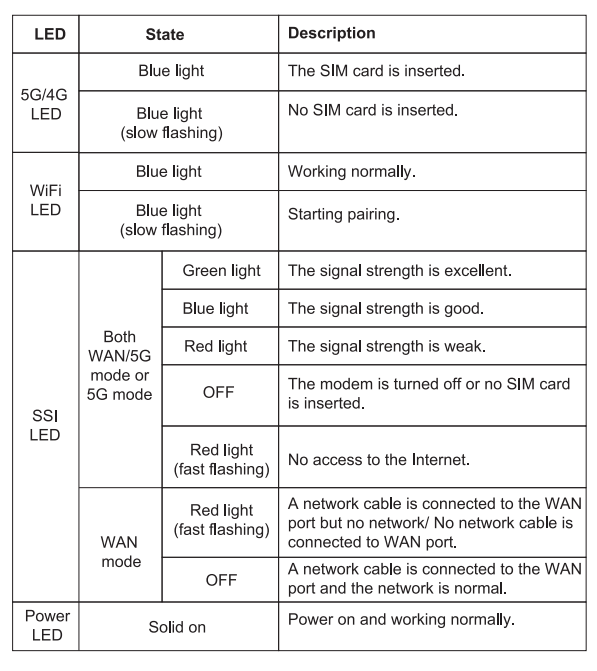

2. LED Indicators

3. Basic Info

Default IP : http://192.168.40.1

Login : http://wavlogin.link

2.4G/5G SSID : WAVLINK-Mesh_XXXX

Official Website : www.wavlink.com

Technical Support : support@wavlink.com

4. In the Box

• 1 x AX3000 Dual-Band 5GNR Mesh Router
• 1 x Power Adapter
• 1 x Ethernet Cable
• 1 x Quick Start Guide
