Chapter 1 Overview

This chapter contains the following sections :

Overview

alt text

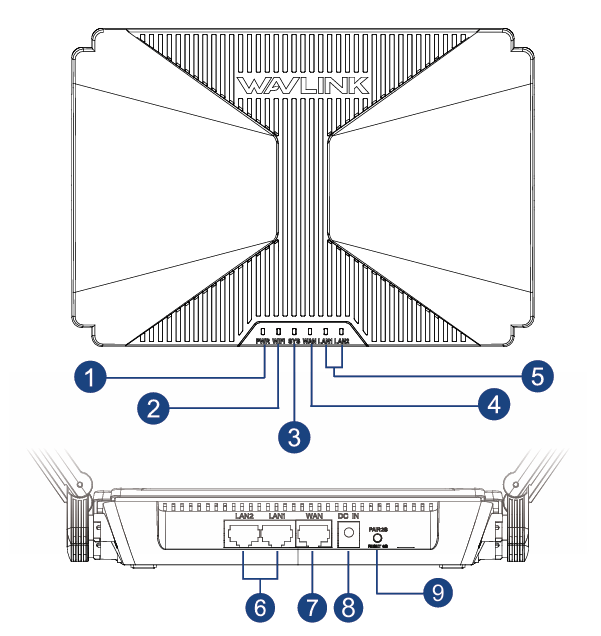

① Power LED

② WiFi LED

③ SYS LED

④ 1 x WAN Port LED

⑤ 2 x LAN Port LED

⑥ 2 x LAN Port

⑦ 1 x WAN Port

⑧ Power Port

⑨ PAIR/Reset Button

Pair Button:

Press and hold for 2 seconds to pair with the existing Everything Mesh Wi-Fi system.

Reset Button:

Press and hold for at least 6 seconds to restore the router.

Default IP: 192.168.20.1

Mesh SSID: WAVLINK-Mesh_XXXX

Official Website: www.wavlink.com

LED	Status	Description
Wi-Fi	Solid on	Wi-Fi enabled
Wi-Fi	Off	Wi-Fi disabled
WAN	Blinking	The WAN port is transmitting or receiving data
WAN	Off	The WAN port is not connected properly
LAN1/2	Blinking	The LAN port is transmitting or receiving data
LAN1/2	Off	The LAN port is not connected properly
Power	Solid on	Powered on
Power	Off	Powered off
SYS	Fast flashing	The device has no Internet connection
SYS	Slow flashing	The device is pairing
SYS	Solid on	The device has Internet connection

WiFi 6 802.11ax, 2.4GHz:573Mbps; 5GHz: 2402Mbps.
The BSS coloring technology enables better spatial reuse.
The WiFi 6 MU-MIMO and OFDMA techniques have greatly improved the device efficiency and performance.
The TWT is a resource managing technique that reduces more power consumption.
Security: WPA3-SAE/WPA2-PSK MIX, WPA2-PSK, WPA-PSK/WPA2-PSK MIX.
Support IPV4/IPV6.
Support 1 x 1000Mbps WAN port, 2 × 1000Mbps LAN ports.
Antenna: 4 x high-gain & foldable antennas; 1 x built-in antenna.
