Chapter 2 Indicator and Button
This chapter contains the following sections :
LED Indicators
| POWER | ON: The Extender is powered on. OFF: The Extender is not receiving electrical power. |
| WAN/LAN | ON: The Ethernet port is connected. OFF: The Ethernet port is disconnected. Flashing: Transferring data to/from connected devices. |
| WPS | Slow Flashing: The Extender is trying to connect to your phone or PC. Fast Flashing: The Extender is connecting to your AP or router. |
Wi-Fi Signal Strength
| Mode | ▂ | ▃ | ▄ | Description |
|---|---|---|---|---|
| AP/Router | ON | ON | ON | Full Reception: 100% |
| Repeater | ON | ON | ON | Full Reception: 100% |
| Repeater | ON | ON | OFF | Good Reception: 50% to 75% |
| Repeater | ON | OFF | OFF | Weak Reception: below 50% |
| Repeater | Flashing | OFF | OFF | Disconnected |
WPS Button
Press and hold for 2 seconds, the Extender is trying to connect to your phone or PC. Press and hold for 6 seconds to connect to your Wi-Fi AP/Router (for Repeater Mode). Reset Button: Press and hold for 3 seconds to Reset the Extender.
Please DO NOT install the Extender in where it is heavily surrounded by things. And KEEP AWAY from the strong electromagnetic radiation.

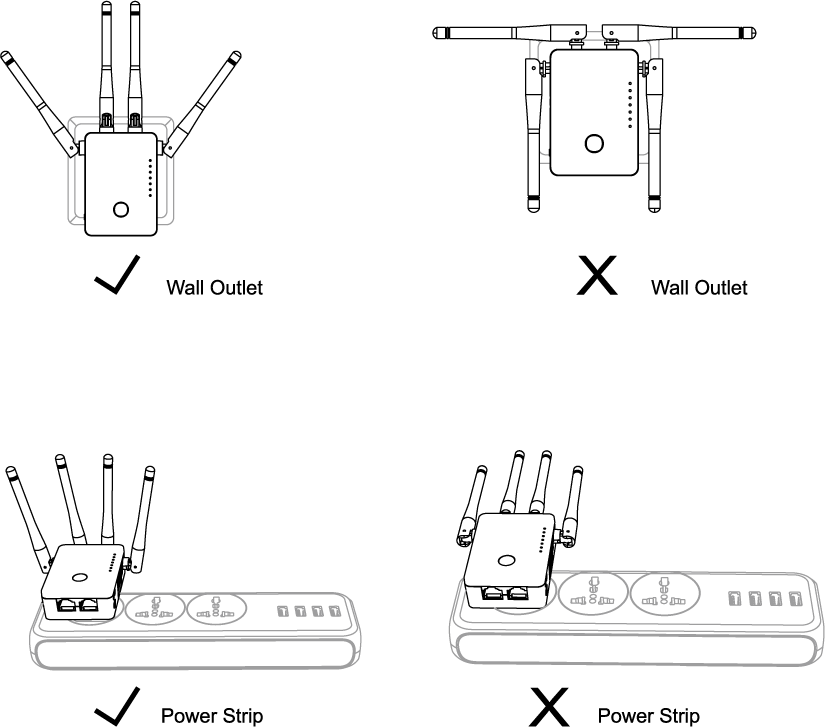

- Drawings with "√" : Recommended -Drawings with "X" : Not Recommended
