Chapter 13 System Setting

This chapter introduces firmware update, password change, system log, system time setting, indicator setting, mode switch and how to restart router.

It contains the following sections:

• Firmware Update

• Change Password

• System Log

• Time Zone

• LED Control

• Restore Factory Settings

• Scheduled Reboot

• Mode Switch

• Router Reboot

Firmware Update​

Regular firmware upgrade can obtain the newest functions and security patches, improving the performance and stability of the router, and fixing possible bugs and security risks.

WAVLINK provides two ways to upgrade your firmware: local upgrade and online upgrade. You can choose one of them to update your firmware.

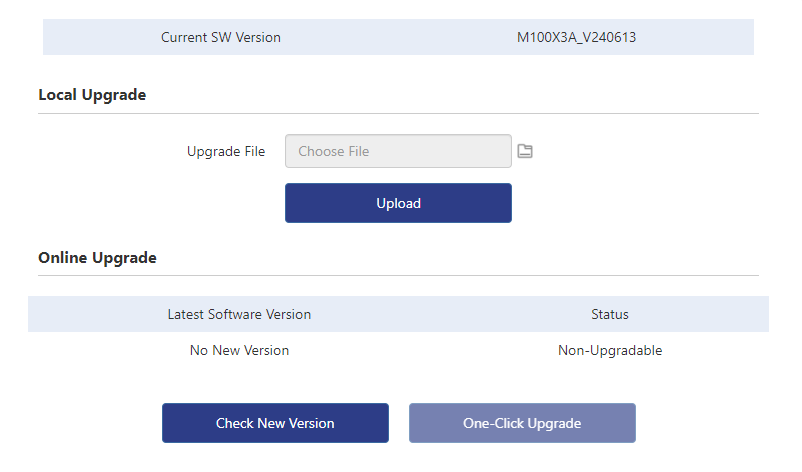

Access to More>System>Firmware Upgrade.

alt text

Local Upgrade​

  1. Access to WAVLINK official website: www.wavlink.com. Download the corresponding upgraded software of the current hardware version.

  2. Select the device that needs to be updated.

  3. Click on Choose File or File icon, and select the firmware file that needs to be uploaded. Click on Upload.

  4. Wait for the completion of updating.

note

  • After updating, the router will automatically reboot to apply new firmware. The process will take few minutes to complete, please wait patiently.

  • During updating, the router can't be powered off in case the router's firmware gets damaged.

Online Upgrade​

  1. Choose the device that needs to be updated.

  2. Click on CHECK FOR NEW VERSION to view the upgradable version to update. Or directly use ONE-CLICK UPGRADE.

  3. Wait for the update completion.

note

  • After updating, the router will automatically reboot to apply new firmware. The process will take few minutes to complete, please wait patiently.

  • During updating, the router can't be powered off in case the firmware gets damaged.

  • When CHECK FOR NEW VERSION, if the prompts show that the firmware is the newest version, there is no need to upgrade the router.

Change Password​

alt text

  1. Access to More>System>Change Password.

  2. Input the current one on the Old Password text field.

  3. Input the new one on the New Passowrd text field.

  4. Input the new one on the Confirm New Password text field, ensuring the inputed password is the same as the new password.

  5. Click on SAVE to complete password changing.

System Log​

When it comes to malfunction, reserve the system log and send it to technical support for trouble shooting.

alt text

  1. Access to More>System>System Log.

  2. Click on Export log to save the log to the computer.

Time Zone​

The system time is the time displayed when the router is running. The system time you set here is used for other time-based features, like Parental Control.

alt text

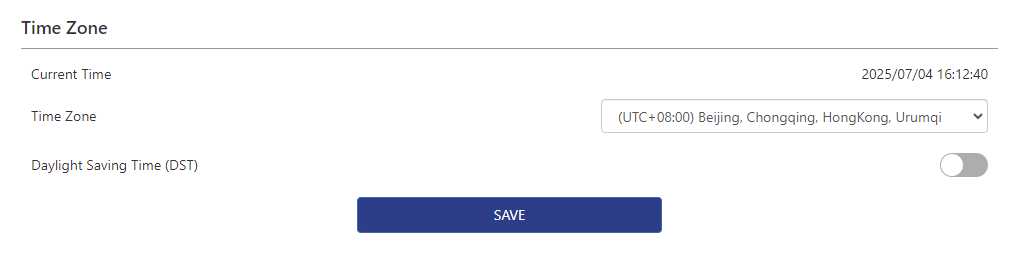

  1. Access to More>System>Time Zone.

  2. Choose the right time zone in the dropdwon list of Time Zone.

  3. Turn on/off Daylight Saving Time(DST).

  4. Click on SAVE to complete the configuration.

Led Control​

The router's indicators are used for indicating the device's status or running. By setting the indicator, you can know the device's working status more clearly, find and ban machine problems in time.

alt text

  1. Access to More>System>Led Control.

  2. Turn on/off LED Status.

  3. Click on SAVE to complete the configuration.

Restore Factory Settings​

If necessary, you can delete the current system setting and reset the router to the default factory settings.

  1. Access to More>System>Restore Factory Settings.

  2. Click on RESTORE FACTORY SETTINGS to reset the router.

  3. Wait a few minutes for the reset and reboot.

Scheduled Reboot​

The automatic reboot function can clear unnecessary data in the router and automatically choose the best wireless channel.

Before turning on Reboot Plan, please ensure the system time is right. If the router's designated reboot time is less than 60 minutes, some unnecessary reboots won't be executed.

alt text

1.Access to More>System>Scheduled Reboot.

2.Turn on Reboot Plan.

3.Choose the router's Reboot Time, and the Reboot Date to decide on reboot frequency.

4.Click on SAVE to complete the configuration.

Mode Switch​

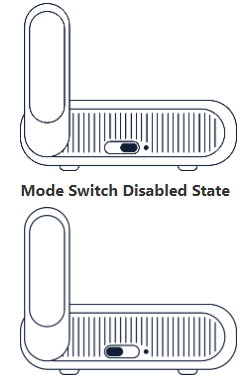

Customize the toggle switch to control functions like LED settings or VPN protocols, including OpenVPN and WireGuard. alt text

  1. Access to More > System > Mode Switch. alt text

  2. Select a function from Feature Selection to assign to the toggle switch. (Options: No Specified Function, LED, OpenVPN, WireGuard.)

  3. Click SAVE to apply the changes and finalize the toggle’s function.

Router Reboot​

When your router has a network malfunction, you can try to use the reboot function to solve the problem. Sometimes, the router may experience software errors or memory overflow issues, leading to network instability. Under these circumstances, you can reboot the router to solve this problem and get the network back up.

After modifying some settings of this router, you need to reboot the router to make the settings valid. Using the reboot function can quickly update the router's settings and make it valid.

  1. Access to More>System>Router Reboot.

  2. Click on ROUTER REBOOT.

alt text

  1. After clicking, a window will pop up, in which you will be asked whether to restart the router or not. If you want to reboot the router, choose OK. If not, choose Cancel.
