Chapter 3 Display Resolution

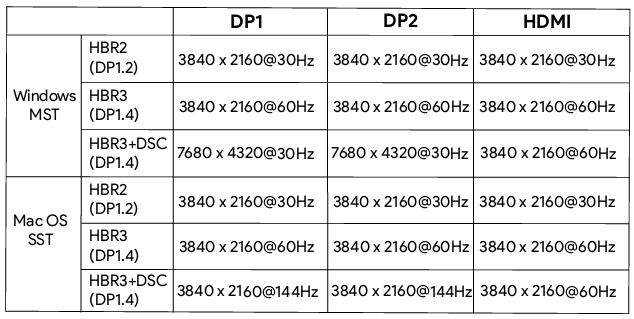

Single Display

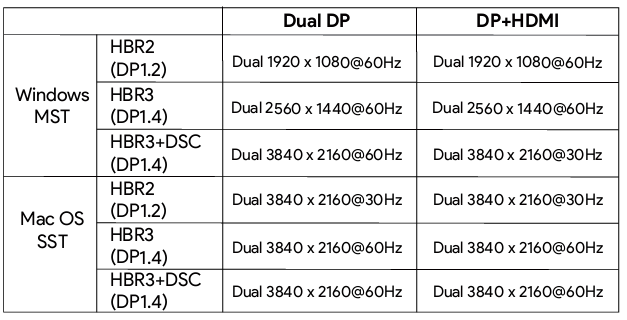

Dual Display

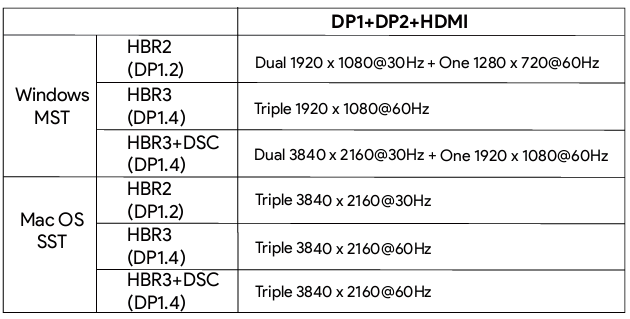

Triple Display
- The above resolutions are factory test results; The resolution may be different depending on the actual situation of the computer and monitor.
note
If you want to use the 3 displays with your PC/laptop simultaneously, please make sure that the Graphics card of the USB-C port supports at least 4 displays of DP ALT Mode, including your PC’s own screen. Check with your PC manufacturer on this. If your Graphics card doesn’t support 4 displays, please check Q&A: Q2 for details.
- Remarks for Windows based PC/laptops:
- Before you connect three monitors, we suggest you disconnect PC/laptop first, please check Q&A: Q2 for details.
- Remarks for Mac based PC/laptops:
Mac OS is Single-Stream Transport mode, so only one video source can be output such as ABB or ABBB(A is the primary display).
