Chapter 1 Product Basic Info
This chapter contains the following section:
• Overview
• Features

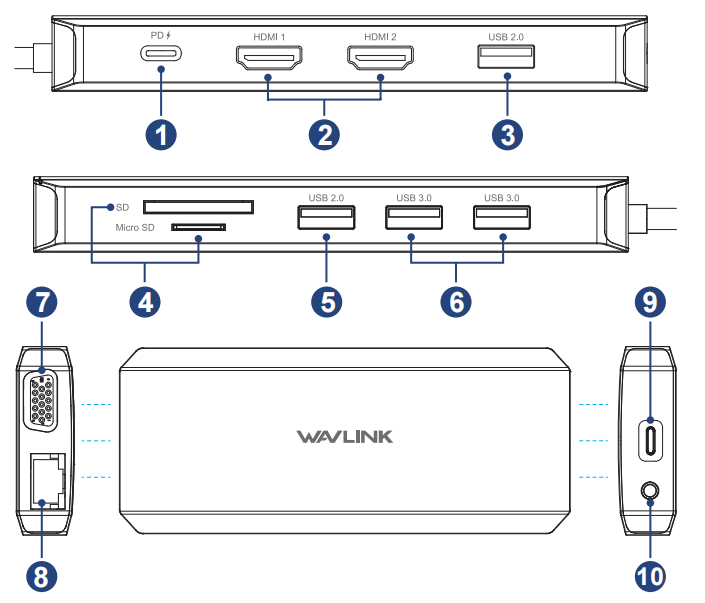

Overview
1.PD IN (100W)
2.HDMI
3.USB 2.0
4.SD 3.0 (104MB/s)
5.USB 2.0
6.USB-A (5Gbps)
7.VGA
8.1GbE
9.USB-C Host (PD 85W)
10.3.5mm Audio Combo Jack
Features
- Full-Function USB-C Required: The USB-C port on the host devices must support data transfer, PD charging & video output
- Dual USB 3.0: Up to 5Gbps speed, backwards compatible with USB2.0/1.1
- Dual USB 2.0: Max transfer speed up to 480Mbps
- SST/MST Supported: Mac devices only support one extended display
- Triple Video Output: 2×HDMI + VGA ports for triple-screen display
- PD Power Supply: 100W input, up to 85W pass-through charging for laptop
- Gigabit Ethernet: Wired network speed up to 1000Mbps
- Card Readers: Built-in SD & Micro SD card slots
- 3.5mm Audio Jack: Combined audio output & microphone input
System Requirement
- Microsoft Windows 7/8/10/11
- Apple MacOS 10.8 or later (Can extend a different display ONLY)
- Android
- Laptop with full-functional USB-C port (Power Delivery + DisplayPort Alt Mode + Data Transfer)
In the Box
- 1 x USB-C 12-in-1 Triple Display Docking Station
- 1 x Quick Start Guide
