Chapter 1 Basic Information
This chapter introduces the docking station's features, appearance, and some basic information.
It contains the following sections :
In the Box
- 1 x USB-C Dual 5K Universal Docking Station
- 1 x USB-C to C Cable(E-Mark Chip)
- 1 x USB-A (3.0) to C Cable
- 1 x DC 20V/5A 100W Power Adapter
- 1 x Quick Start Guide
Specification
- Two HDMI support resolution up to dual 4K.
- Two DisplayPort support maximum single 5K resolution.
- Supports multiple video display modes for intensive work.
- Gigabit Ethernet port supports fast and stable wired connection.
- 6 USB ports for your USB devices.
- Non-slippery pads on the bottom protect the device from falling.
System Requirement
- Windows 10/11
- Mac OS 11 to the latest
- Chrome OS
- Ubuntu
- Android

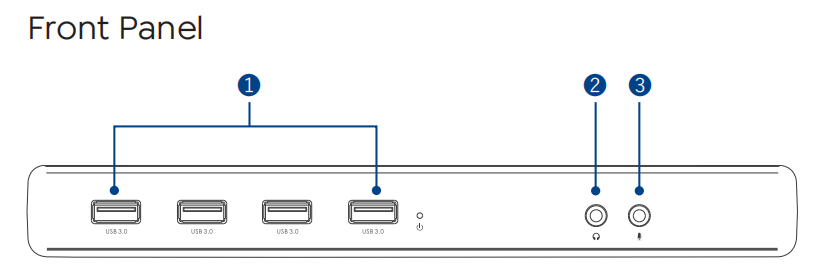

Overview
- ①.USB-A 5Gbps
- ②.3.5mm Earphone
- ③.3.5mm Mic

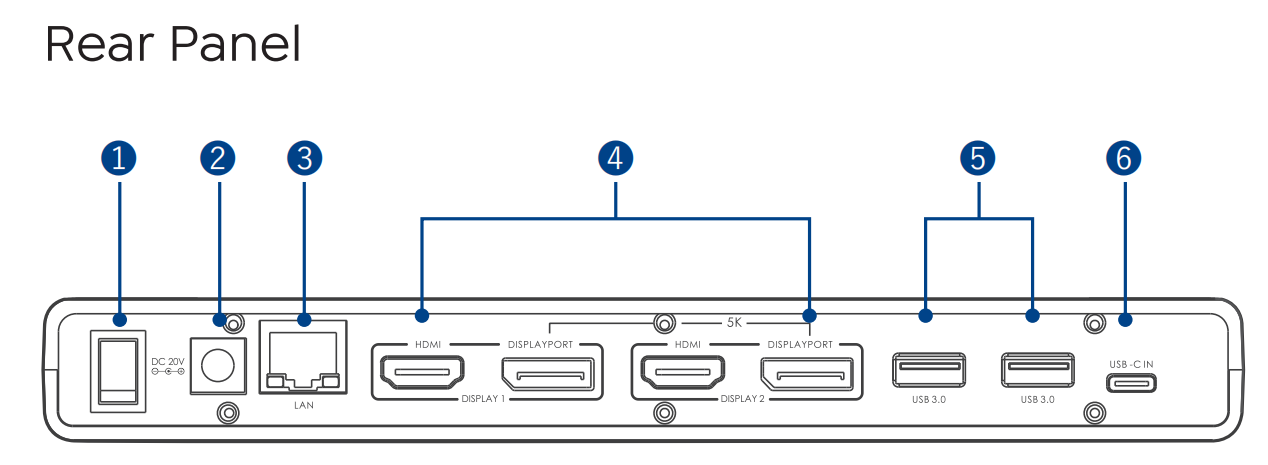

- ①.Power Switch
- ②.DC IN(20V/5A, 100W)
- ③.Gigabit Ethernet Port
- ④.DISPLAY 1/2(HDMI or DisplayPort)
- ⑤.USB-A 5Gbps
- ⑥.USB-C Upstream(Host, PD65W)
