Chapter 3 Display Resolution and Display Mode Setting
This chapter introduces this docking station's display resolution and display mode setting.
It contains the following sections:

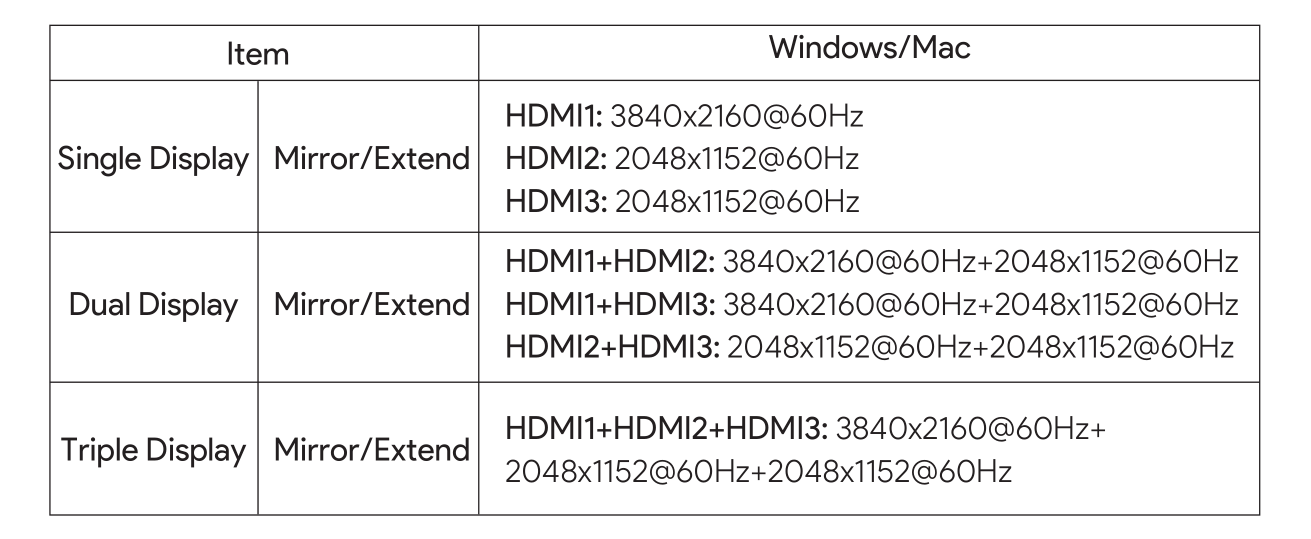

Display Resolution
HDMI 1(Alt Mode) port supports max 3840x2160@60Hz in DP1.4.
HDMI 1(Alt Mode) port supports max 3840x2160@30Hz in DP1.2.
Display Mode Setting
Before configuring the settings, please make sure this docking station has been connected to your laptop and monitors correctly.
For Windows
1.Right-click->Display settings.
2.In "Display", you can enjoy different operations of duplicating, extending and rotating on your monitors.
For Mac OS X12 or Below
1.Click Apple icon ->About This Mac.
2.Click Displays->Displays Preferences.
3.Select "Display" from the list, then you can enjoy different operations of mirroring, expanding and rotating on your monitors.
4.Or click "Gather Windows" to gather all connected displays and make separate settings.
For Mac OS X13
1.Click Apple icon ->About This Mac.
2.Click "More Info...
3.Select "Displays" from the list, then you can enjoy different operations of mirroring, expanding and rotating on your monitors.
