Overview

1×USB-C 4K Triple Display Universal Docking Station

1×USB-C to C Cable (1M)

1×USB-A to C Cable (1M)

1×Power Adapter(20V/2A)

1×DVI to HDMI Adapter

1×Quick Start Guide

Windows 10/11

Mac OS 10.14 or later

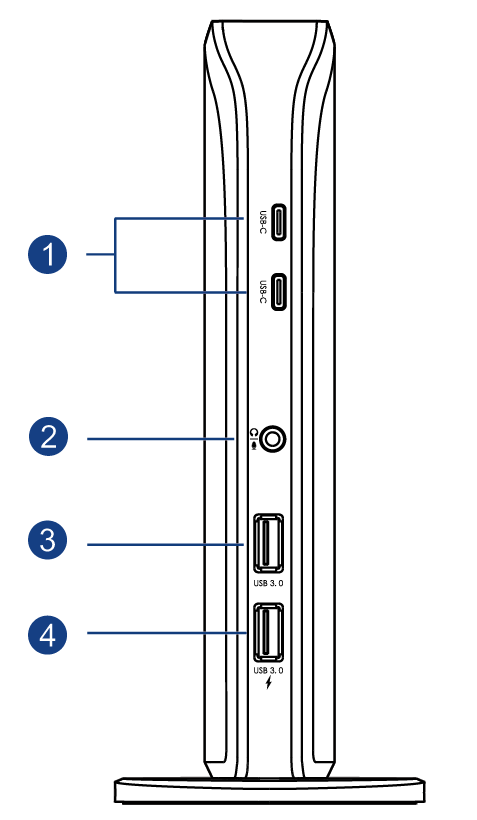

Front Panel

① USB-C Ports (5Gbps)

Connects to USB-C peripherals

② 3.5mm TRRS Port

Connects to microphone & headset

③ USB-A Ports (5Gbps)

Connects to USB-A peripherals

④ USB-A Ports (5Gbps)

Connects to USB-A peripherals with fast charging

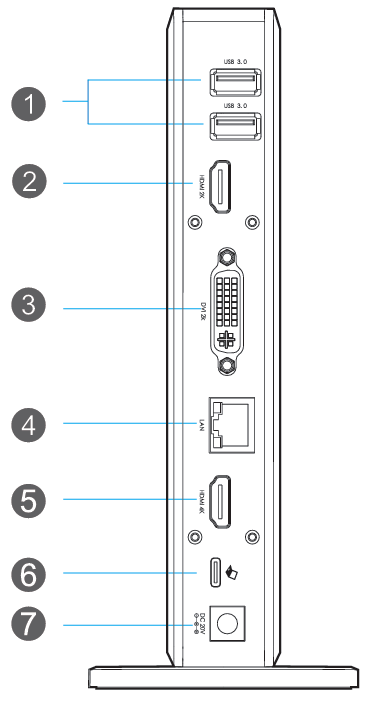

Rear Panel

① USB-A Ports (5Gbps)

Connects to USB-A peripherals

② 2K HDMI Port

Connects to 2K HDMI monitor

③ DVI Port

Connects to 2K DVI monitor

④ 10/100/1000Mbps Ethernet Port

Connects to Gigabit Ethernet network

⑤ 4K HDMI Port

Connects to 4K HDMI monitor

(USB-C VESA alternate mode only)

⑥ USB-C Upstream Port

Connects to the Host

⑦ Power Jack

External power supply for dock operation.
