Chapter 1 Overview
This chapter contains the following sections:
Package Content
- 1× Wireless HDMI Transmitter
- 1× Wireless HDMI Receiver
- 1× USB-A to USB-C Cable
- 1× Ejector Pin
- 1× Quick Start Guide

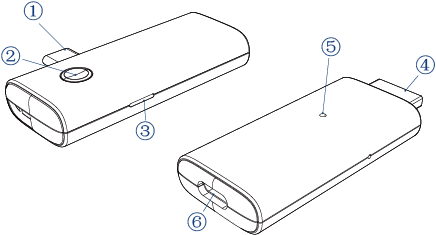

Product Overview
① TX’s USB-C(Host)
② Reset/Pair
③ TX's LED
④ RX'S HDMI
⑤ Pinhole for Reset/Pair
⑥ RX's USB-C(Power Supply)
Transmitter Indication
| LED Status | Button Operation | Indication |
|---|---|---|
| Blue flashing | / | Unpaired |
| Blue flashing | Keep pressing the PAIR/RESET button for 5s. | Off for 1s, then resumes fashing at the original rate, start pairing. |
| Solid blue on | / | Successfully paired with RX, are ready to start |
| Solid blue on | Short press the PAIR/RESET button. | Successfully paired with RX, are ready to start |
System Requirement
- Microsoft Windows 10/11
- Apple Mac OS 10.15 or later
- Compatible with most Type-C 3.1 devices with DP protocol
