Chapter 1 Basic Information

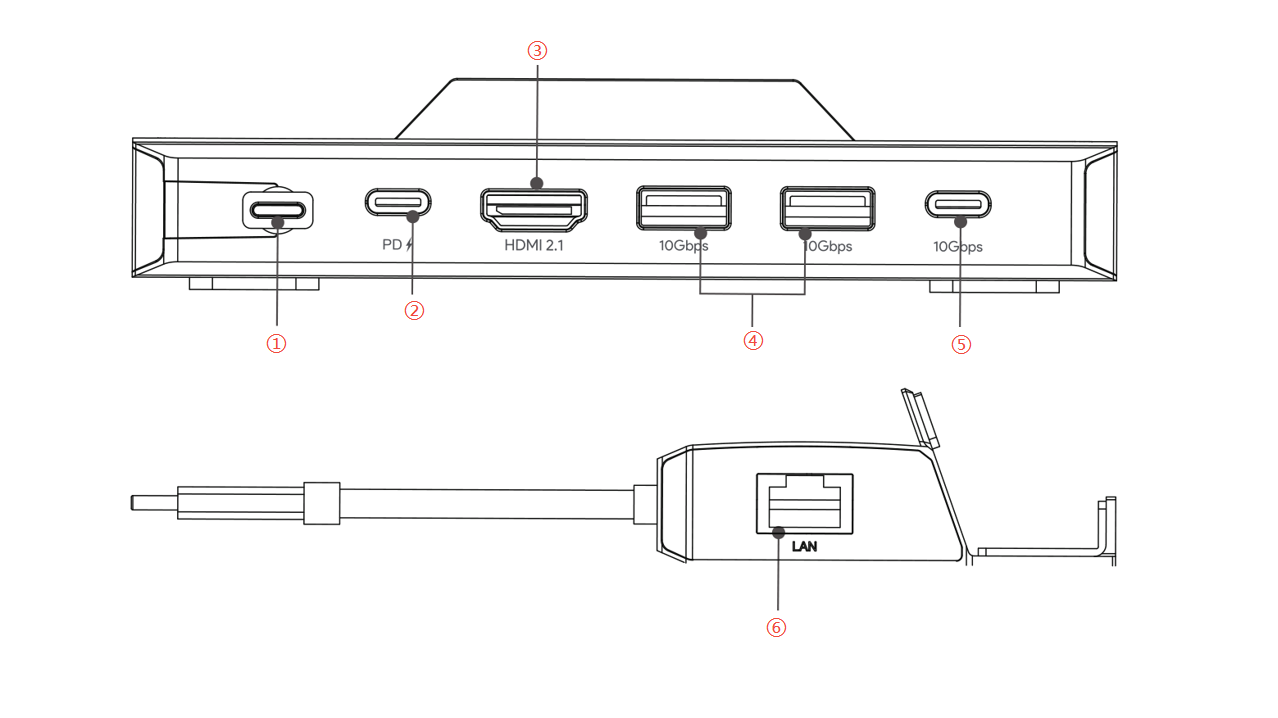

Overview
① USB-C cable
② PD IN： 100W
③ HDMI
④ USB-A
⑤ USB-C
⑥ RJ45: 1000Mbps
The USB-C port near the cable is only used as PD to supply power, no data transmission function.
Introduction
WAVLINK 6-in-1 Steam Deck/ROG Dock supports single screen extension up to UHD 4K@144Hz, bringing fabulous game vision experience. An ultra-fast RJ-45 1000M Ethernet port with 1000Mbps speed injects adrenaline to your game, no game delay permitted. PD 85W charging frees you from the worry of power loss, power full charged only for 2.5 hrs. Double USB-A and USB-C ports can connect joystick, mouse, and keyboard, showing your superb game skill.
Feature
-
Compatible with Type-C USB 3.2 Gen2 full specificatio PC.
-
USB-C power port supports PD3.0, PD IN 100W, upstream power charging up to 85Watt.
-
One HDMl port supports resolution up to 3840X2160@144Hz.
-
One Ethernet port supports up to 1Gbps (10/100/1000 Mbps).
-
One USB-C 10G ports and two USB-A 10G ports for devices’ connectivity.
-
Multi-USB ports for connection of mouse, keyboard, and USB flash disk.
-
Supports Steam Deck/Asus ROG Ally/Lenovo Legion Go.etc.
-
Not compatible with Ally X, AYANEO and Nintendo Switch.
In the Box
-
1 x 6-in-1 Steam Deck/ROG Dock
-
1 x Quick Start Guide
