Chapter 1 Basic Information

This chapter contains the following sections:

In the Box

System Requirements

Overview

In the Box

  • 1 x USB-C 10G 8K@30Hz Mini Hub

  • 1 x Thermally Conductive Silicone Pad

  • 2 x Silicone Buckles

  • 1 x Quick Start Guide

System Requirements

  • Windows 10/11

  • macOS 11 or later

  • Laptop/PC at least has one Thunderbolt 3/4 or full-functional USB-C port with Video Alt Mode and Data Transfer

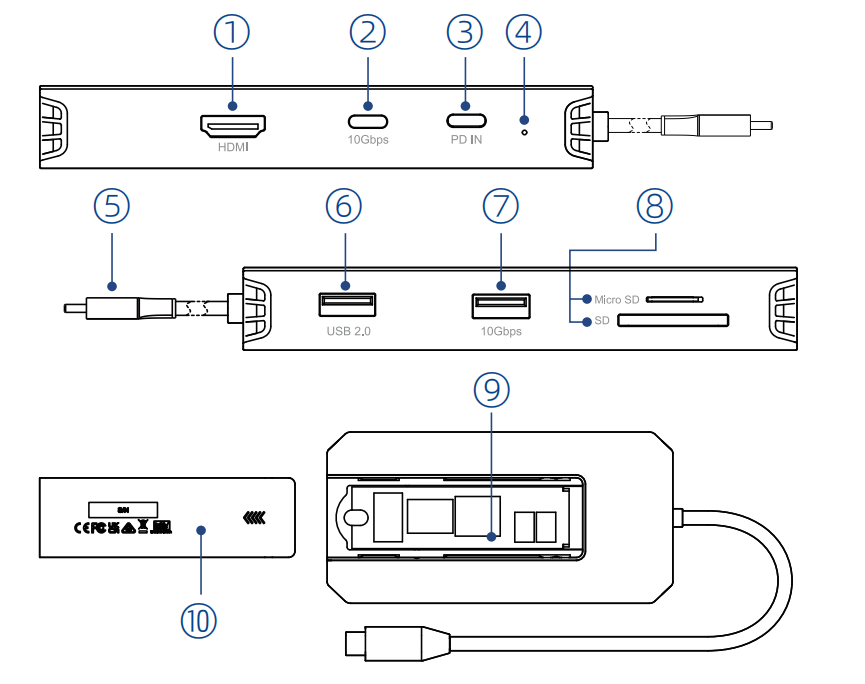

Overview

① HDMI(8K@30Hz)

② USB-C(10Gbps)

③ USB-C(PD3.0 IN 100W)

④ Power LED

⑤ USB-C Upstream Port(Host)

⑥ USB-A(480Mbps)

⑦ USB-A(10Gbps)

⑧ SD/TF Card Reader(104MB/s)

⑨ M.2 Enclosure(PCIe, SATA)

⑩ Cover
