Chapter 3 Driver Installation

More Translations Download PDF

This chapter contains the following sections :

• For Windows OS

• For Mac OS

Driver Installation

Before using this adapter, please make sure the latest PC/laptop driver has been installed. If driver can not be installed automatically, please visit www.wavlink.com/en_us/WL-UG7701 or enter www.siliconmotion.com to find and install it.

For Windows OS

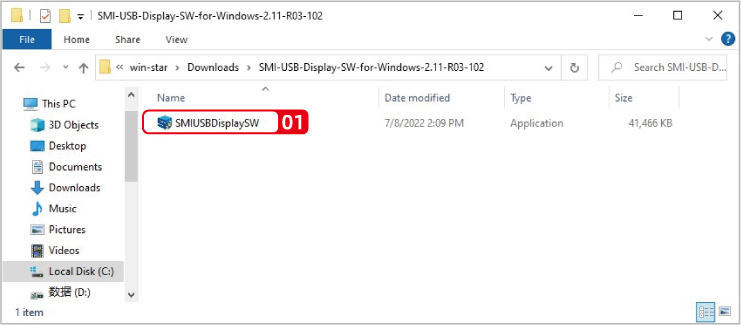

1. After extracting the file downloaded, click SMIUSBDisplaySW(.exe) in the extracted file.

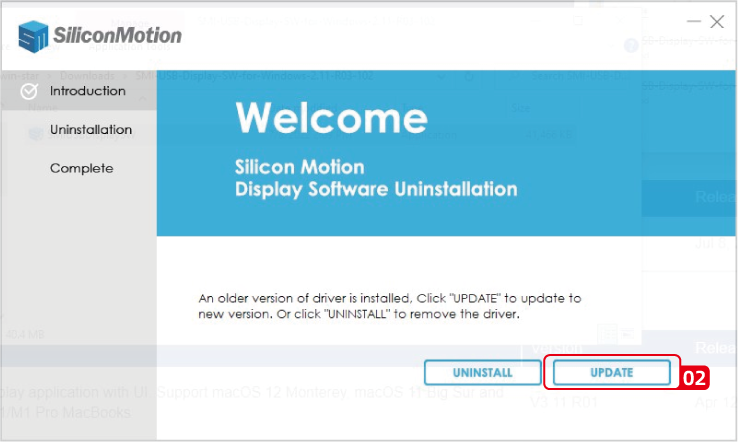

2. Click UPDATE.

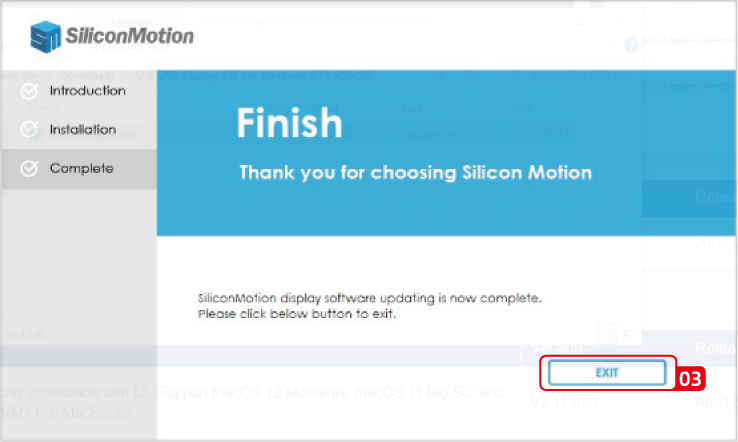

3. Click EXIT to finish the installation process.

For Mac OS

Download the Silicone Motion InstantView application for Mac OS found here: www.wavlink.com/en_us/WL-UG7701 to find and manually install it.

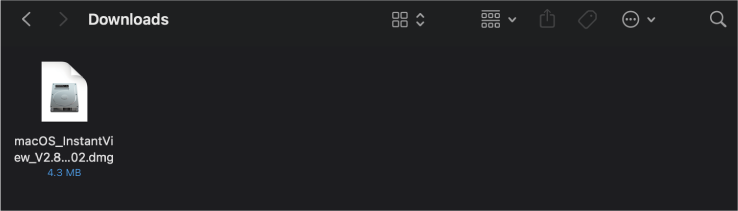

1. Double click on the file you downloaded to start the application installer.

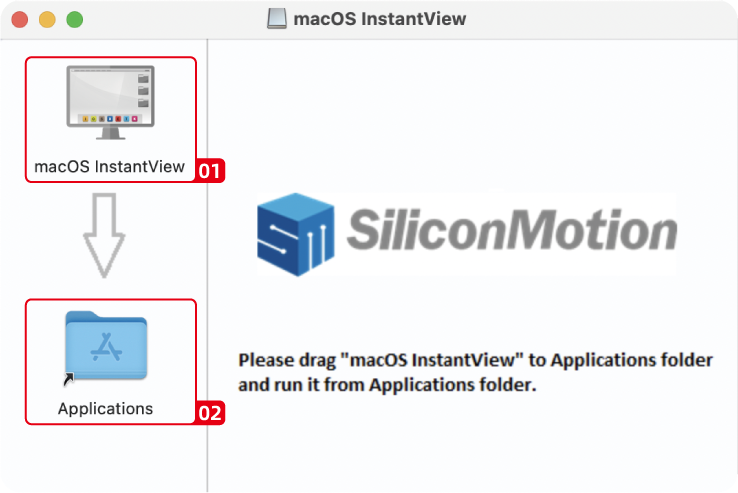

2. Drag the macOS InstantView application icon into the applications folder in the open window.

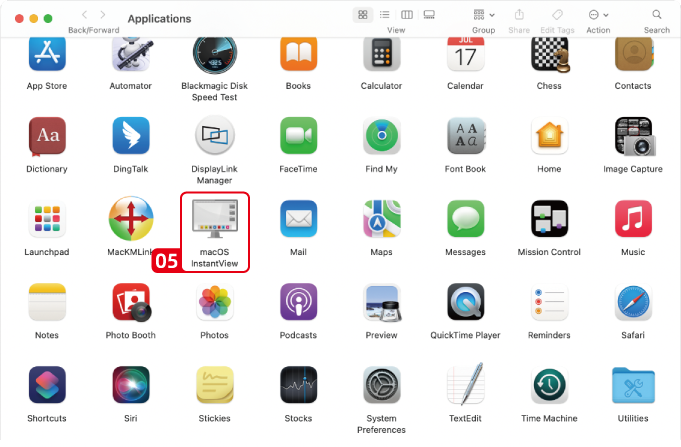

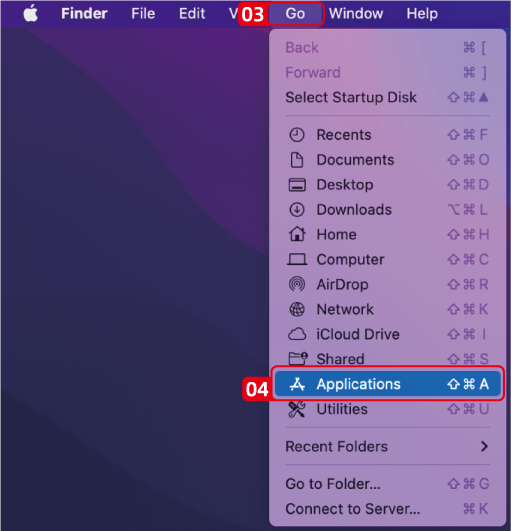

3. Navigate to your launchpad or applications folder to find the macOS InstantView and double click to launch it.

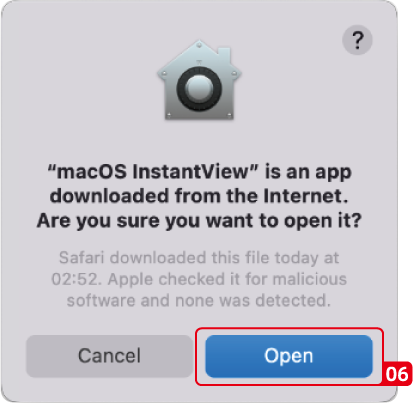

4. Click Open.

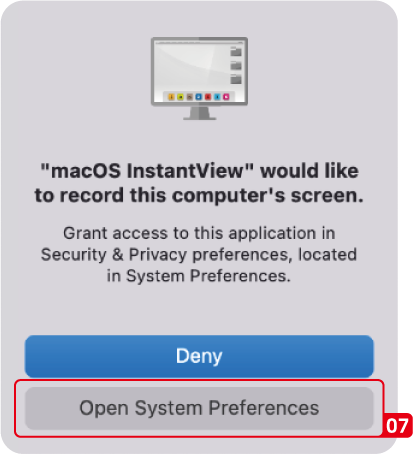

5. Click Open System Preferences. (Note: this should automatically open the Security and Privacy section, but if it does not, you can manually open the Security and Privacy settings.)

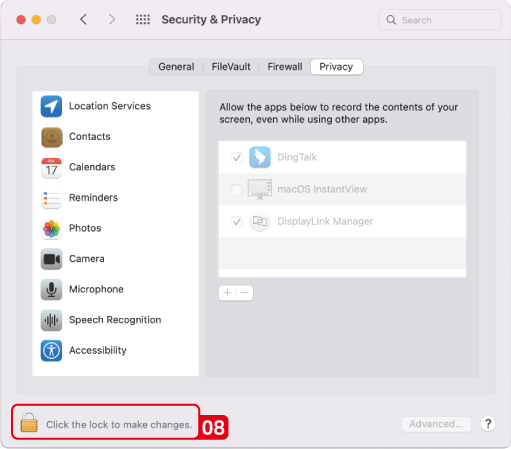

6. Click on the gold pad lock on the bottom of the application window to enable changes.

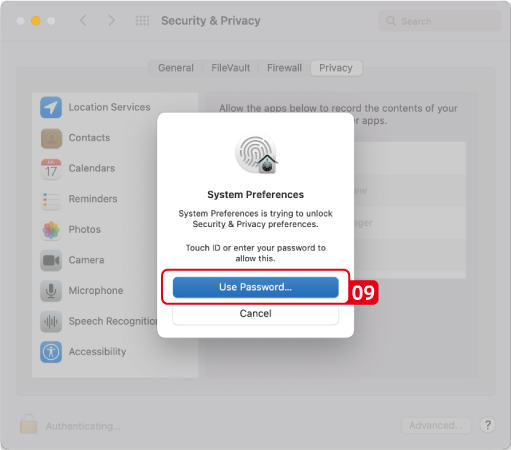

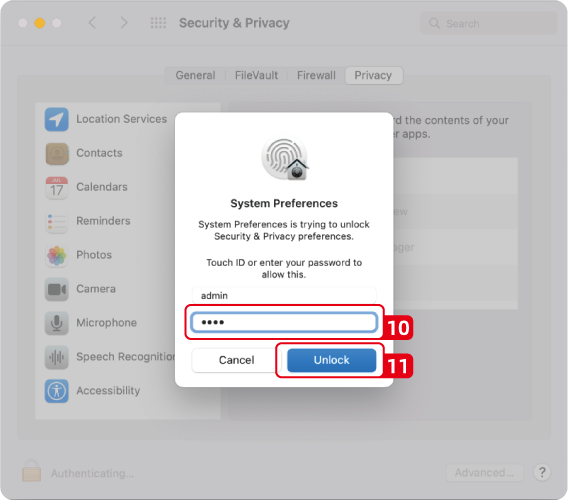

7. If promoted, enter your password and click the Unlock button.

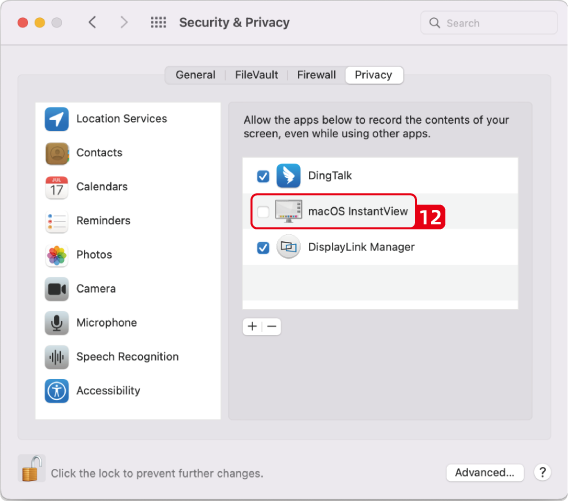

8. Click to and place a check mark next to the macOS InstantView entry.

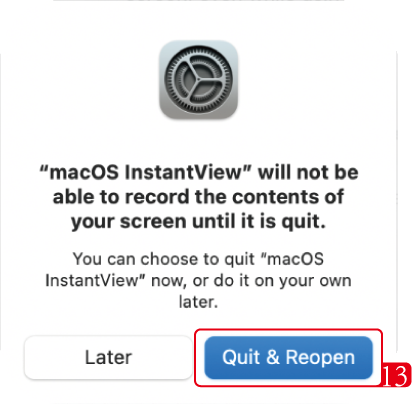

9. You will be prompted to Quit and Reopen the InstantView application in order for the change take effect. So please do so:

10. The software has now been installed and you may connect your graphics adapter or docking station.

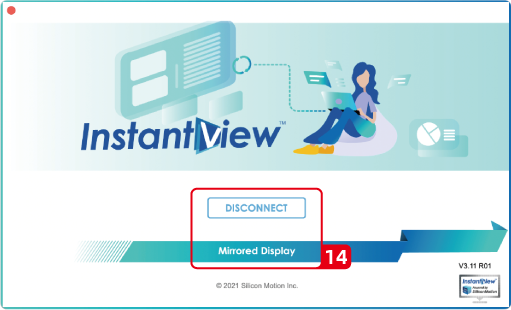

11. When the computer is connected to the docking station for the first time, the following window will appear after the driver is started.You can choose to disconnect or mirror the screen according to your personal usage. In addition, you can also close this window and go to the system settings to set the screen.
