Chapter 1 Product Basic Info
This chapter contains the following sections:
• Overview
Overview

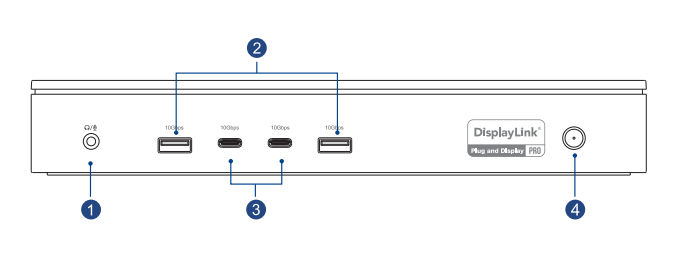

① 4-pole Audio/Mic
② USB-A 10Gbps
③ USB-C 10Gbps
④ Power Switch (with Status Indicator)

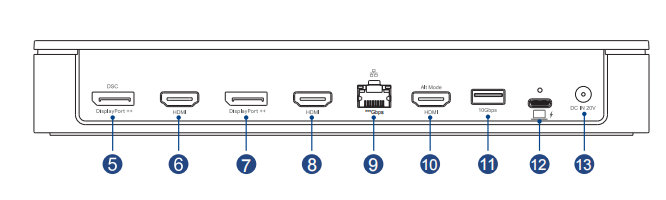

⑤ DisplayPort++ (DSC, 8K@30Hz)
⑥ HDMI 1
⑦ DisplayPort++
⑧ HDMI 2
⑨ RJ45 Ethernet
⑩ HDMI 3 Alt Mode
⑪ USB-A 10Gbps
⑫ USB-C (Host, PD 100W)
⑬ DC IN 20V
| Model | Ethernet Specification |
|---|---|
| UG75PD5-3H2D5 | 5Gbps |
| UG75PD5-3H2D2 | 2.5Gbps |
| UG75PD5-3H2D1 | 1Gbps |
Specification
- 2 x DisplayPort1.4 and 3 x HDMI ports support max 8K@30Hz or quintuple 4K display.
- 1 x Type-C UFP supports PD100W upstream charging for laptop.
- 3 x USB3.1 Type- A (10G) ports extend more connectivity to USB devices.
- 2 x USB3.1 Type- C (10G) ports extend more connectivity to USB devices.
- 1 x RJ45 Ethernet port supports high-speed data transmission.
- 1 x Kensington lock for security.
- 1 x Combo Audio/Mic port.
System Requirement
- Windows 10/11 or later
- Mac OS 11.x or later
In the Box
- 1 x Universal 8K/Quintuple 4K Docking Station
- 1 x Type-C to Type-C 10Gbps Cable with Type-C to Type-A Adapter
- 1 x DC20V/6.5A Power Adapter
- 1 x AC Power Cable
- 1 x Cable Holder
- 1 x Quick Start Guide
