Chapter 1 Overview

More Translations Download PDF

This chapter contains the following sections :

• Package Content

• System Requirement

• Product Overview

Overview

Package Content

This Universal 10G Quad 4K Docking Station includes the following items, please check it before using.

• 1× Universal 10G Quad 4K Docking Station
• 1× Type-C to Type-C 10Gbps Cable with Type-C to Type-A Adapter
• 1× DC20V/8A Power Adapter
• 1× AC Power Cable
• 1× Cable Holder
• 1× Quick Start Guide

System Requirement

• Microsoft Windows 10/11
• Mac OS 11 or later
• Compatible with computers that support Thunderbolt/USB4/USB3.2/USB3.1/USB3.0/USB2.0

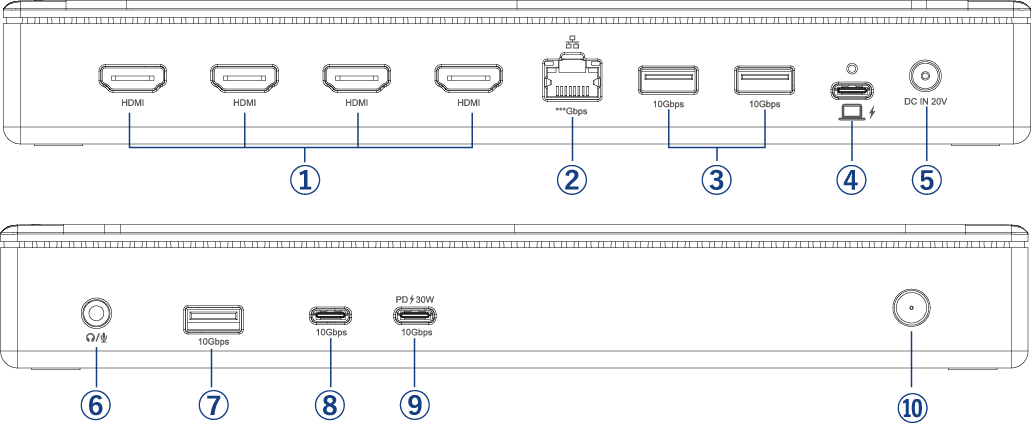

Product Overview

① HDMI

② RJ45 Ethernet

③ USB-A 10Gbps

④ USB-C(Host, PD 100W)

⑤ DC IN 20V/8A

⑥ 4-pole Audio/Mic

⑦ USB-A 10Gbps

⑧ USB-C 10Gbps

⑨ USB-C 10Gbps+30W Fast Charging

⑩ Power Switch(with Status Indicator)

Model	Ethernet Specification
UG75PD3-4H5	5Gbps
UG75PD3-4H2	2.5Gbps
UG75PD3-4H1	1Gbps
