Chapter 1 Overview
• Overview
• Features

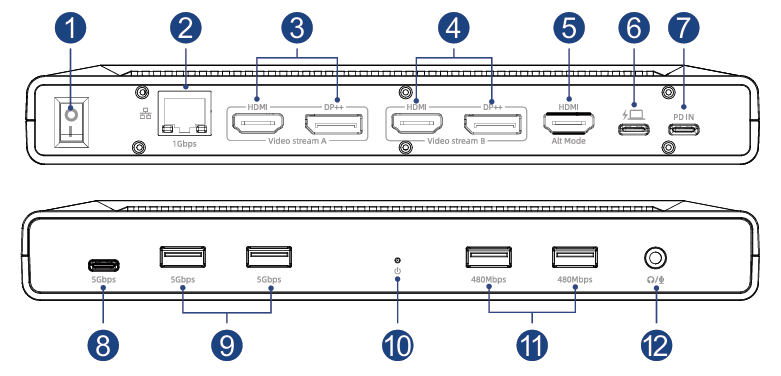

Overview
① Power Button
② 1GbE
③ Video Output A
④ Video Output B
⑤ HDMI
⑥ USB-C Host (PD 80W)
⑦ PD IN (100W)
⑧ USB-C (5Gbps)
⑨ USB-A (5Gbps)
⑩ Power Indicator
⑪ USB2.0
⑫ 3.5mm Audio Combo Jack
System Requirement
- Microsoft Windows 10/11
- Apple Mac OS 11 or later
Features
- 2 x DP ports plus 3 x HDMI ports support a crystal-clear display output up to 3 x 4K@60Hz.
- 1 x USB-C port supports PD 80W fast charging to your laptop.
- 1 x USB-C & 2 x USB-A ports provide 5Gbps data transmission.
- 1 x RJ45 Gigabit Ethernet port supports 1000/100/10Mbps network.
- 1 x integrated TRRS 4-pole phone jack provides audio out and mic in.
In the Box
- 1 x USB-C 13-in-1 4K Triple Display Elite Docking Station
- 1 x Type-C to Type-C Cable with Type-C to Type-A Adapter
- 1 x USB-C PD 100W Power Adapter
- 1 x AC Power Cable
- 1 x Quick Start Guide
