Chapter 1 Overview

• Overview

• System Requirement

• Features

• In the Box

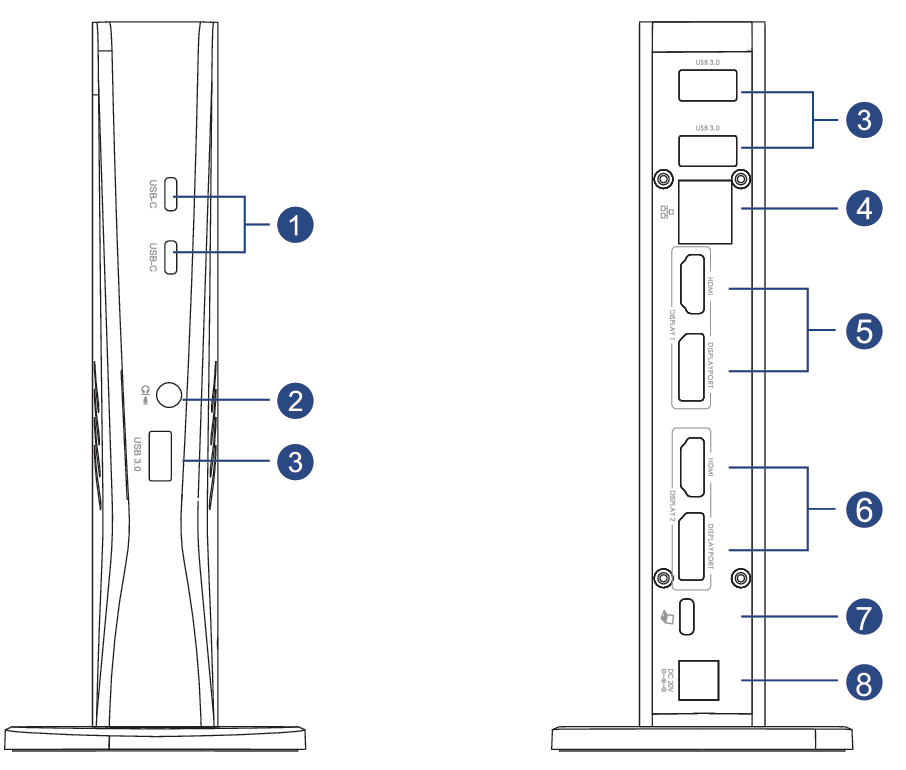

Overview​

① USB-C (5Gbps)

② 3.5mm Audio Combo Jack

③ USB-A (5Gbps)

④ 1GbE

⑤ Video Output A

⑥ Video Output B

⑦ USB-C Host

⑧ DC IN (20V)

System Requirement​

  • Windows 10/11
  • Mac OS 11 to the latest
  • Chrome OS
  • Ubuntu
  • Android

Features​

  • Working with USB-C, Thunderbolt & USB-A laptop.
  • The HDMI port supports 4K resolution, while the DisplayPort interface delivers 5K resolution.
  • USB-A and USB-C ports are convenient for both USB-based peripherals.
  • Gigabit Ethernet port provides fast and stable network for video streaming, online gaming, and other online activities.
  • The 4-Pole combo audio jack provides the convenience to connect your microphone and headset.
  • The compact and vertical design saves more space and helps to keep everything on your desk more organized.
  • The upstream USB-C port supports data transfer only and does NOT provide device charging functionality.

In the Box​

  • 1 x USB-C 12-in-1 5K Dual Display Elite Docking Station
  • 1 x USB-C to C Cable
  • 1 x USB-A to C Cable
  • 1 x DC 20V Power Adapter
  • 1 x Quick Start Guide
