Chapter 1 Overview
This chapter contains the following sections :
Package Content
- USB-C Single 4K Universal Docking Station
- USB-C to USB-C Cable
- USB3.0 A to C Cable
- DC 20V/5A 100W Power Adapter
- Quick Start Guide
Product Overview

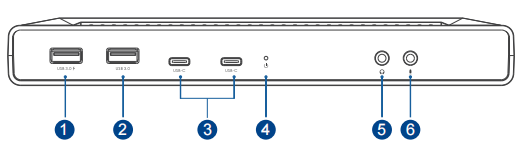

Front View
- USB-A 3.0 (5Gbps+BC1.2)
- USB-A 3.0 (5Gbps)
- USB-C 3.0 (5Gbps)
- LED
- Audio Out
- Mic In

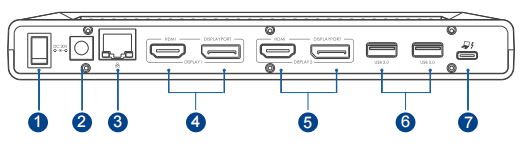

Rear View
- Power Button
- DC IN (20V/5A)
- Gigabit RJ45
- Display 1 (HDMI+DisplayPort)
- Display 2 (HDMI+DisplayPort)
- USB-A 3.0 (5Gbps)
- Upstream USB-C (Host, 65W)
Product Features
- 65W PD Charging: Supports 65W upstream charging for your host laptop.
- 4K Video Output: Two DisplayPort and two HDMI ports support up to single 4K and dual 2K resolution video output.
- Up to 6 USB-A/C 3.0: Four USB-A 3.0 and two USB-C 3.0 ports transfer data to your downstream devices at the rate of up to 5Gbps.
- BC1.2 Fast Charging: One USB-A 3.0 port supports BC1.2 fast charging.
- Gigabit Ethernet: Built in Gigabit Ethernet port provides stable network speed for your working and gaming and is backward compatible with 10/100 network.
- Audio Out & Mic In: 2.0 Audio Line-out Jack for Earphone and Line-In Jack Microphone.
- Multi-Video Modes: Supports multiple video modes for intensive work.
