Chapter 1 Overview
This chapter contains the following sections :
Overview
Package Content
This Thunderbolt™ 5 multifunctional docking station includes the following items, please check it before using.
- Thunderbolt™ 5 Multifunctional Docking Station
- 1m USB-C to USB-C Thunderbolt™ 5 Cable(80/120Gbps)
- 20V Power Adapter
- Screwdriver
- Quick Start Guide
System Requirement
- Windows 11 or higher
- Mac OS 14.6 or later (M chip)
- Compatible with Thunderbolt 5/4, USB4,and USB 3.0 computers featuring a USB-C port
Product Overview

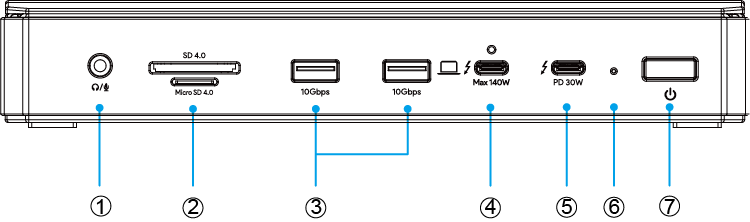

① Combo Audio Jack
② SD/Micro SD Card Reader(UHS-Ⅱ, SD 4.0)
③ USB-A(10Gbps)
④ TBT5 UFP(Host, Max. 140W Charging, Video)
⑤ TBT5 DFP(80Gbps, Video, PD 30W)
⑥ Status Indicator
⑦ Power Switch

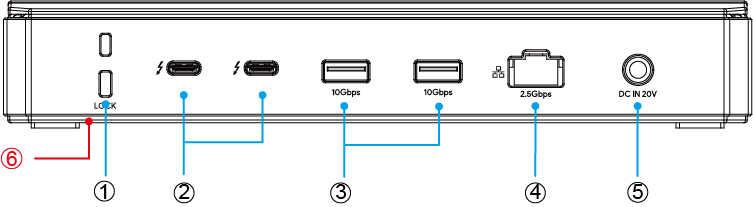

① Lock
② TBT5 DFP(80Gbps, Video, Charging)
③ USB-A(10Gbps)
④ RJ45 Ethernet
⑤ DC IN(20V)
⑥ M.2 Slot(Open at the Bottom)
