Chapter 3 Mode Configuration

More Translations Download PDF

This chapter contains the following sections :

• Router Mode

• Repeater Mode

• AP Mode

Mode Configuration​

Router Mode​

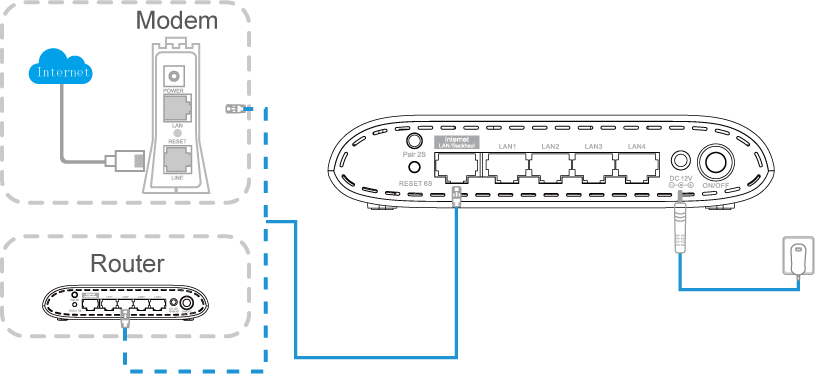

  1. Connect this router's WAN port to the Modem's or others' LAN port, then connect the DC IN to the power outlet, turn on this router.
  2. Connect your PC/Laptop to the router using the Ethernet cable or WiFi.

2.1 Using Ethernet Cable

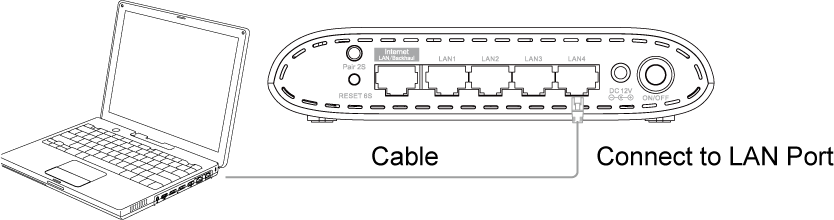

2.1.1 Turn off the WiFi on your computer, then connect the computer to the LAN port of the router. 2.2 Using Wi-Fi
2.2.1 Find the SSlD(Network Name) printed on the label at the bottom of the router.

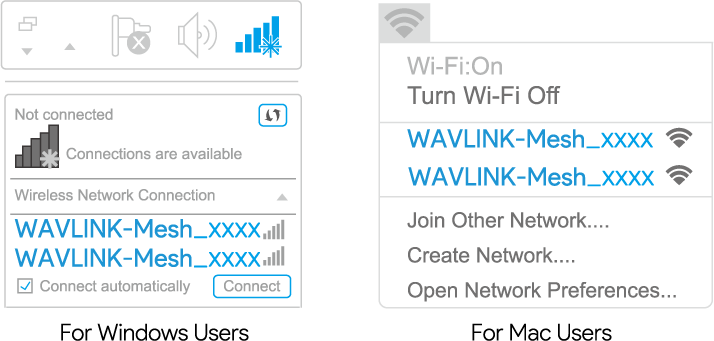

2.2.2 Click the network icon of your computer or go to Wi-Fi Settings of your computer/phone, and then select the SSlD(Network Name) to join the network.

  1. Launch a browser from your computer or smart phone and enter http://wavlogin.link or http://192.168.20.1 in the address field not search bar. Click EXPERIENCE NOW to configure. Note: lf you are unable to access to the web-based setup page please get solution from FAQ:Q1.

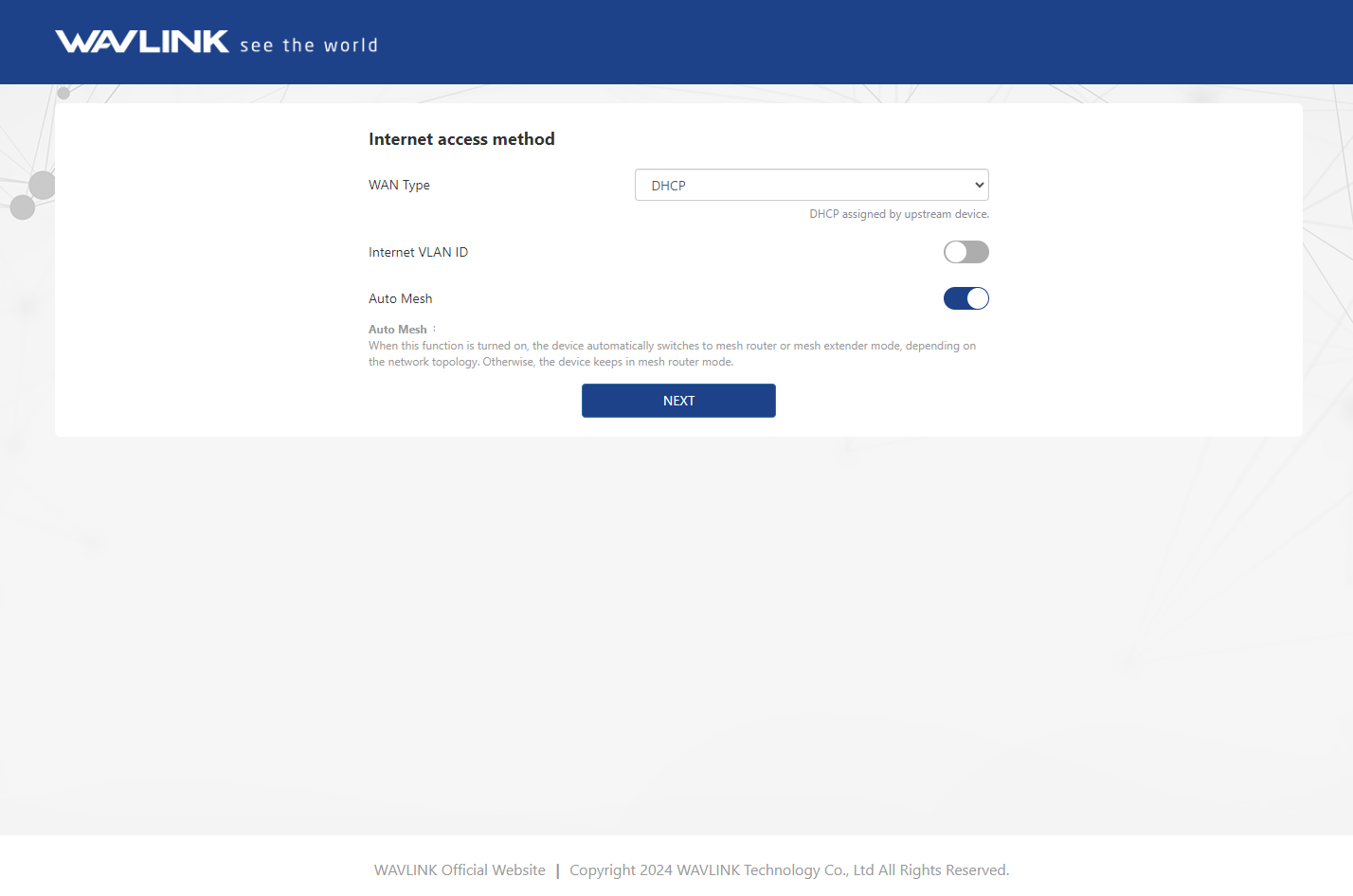

  2. After logging in, choose WAN Type. Then click NEXT. Note: You could contact ISP to check the correct Wan Type. Or if possible, please connect the host router/modem to your PC directly via Ethernet cable and check if you could get Internet. lf you could get Internet, please choose DHCP as Wan Type.lf you could not get Internet, please choose PPPoE as the Wan Type.

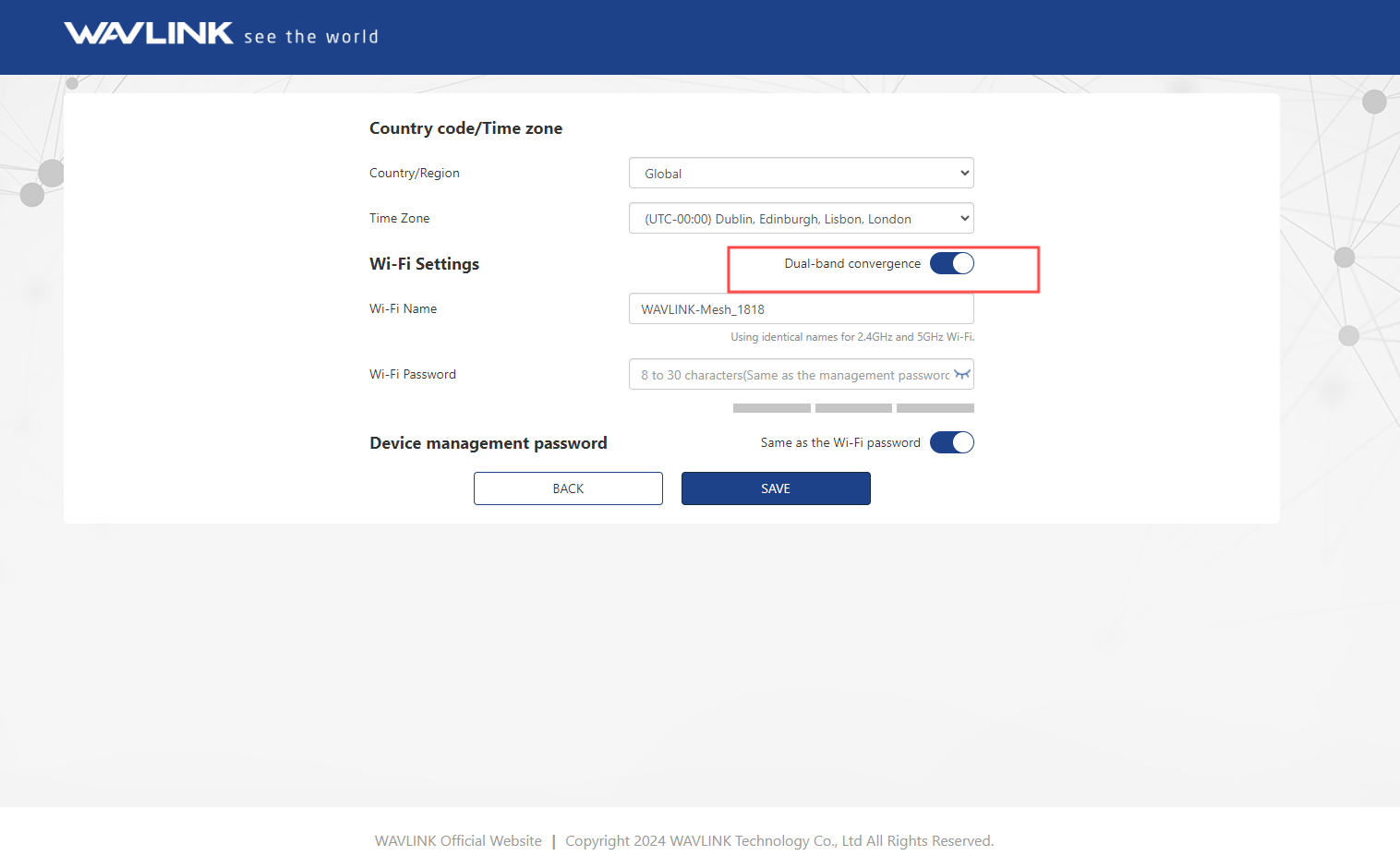

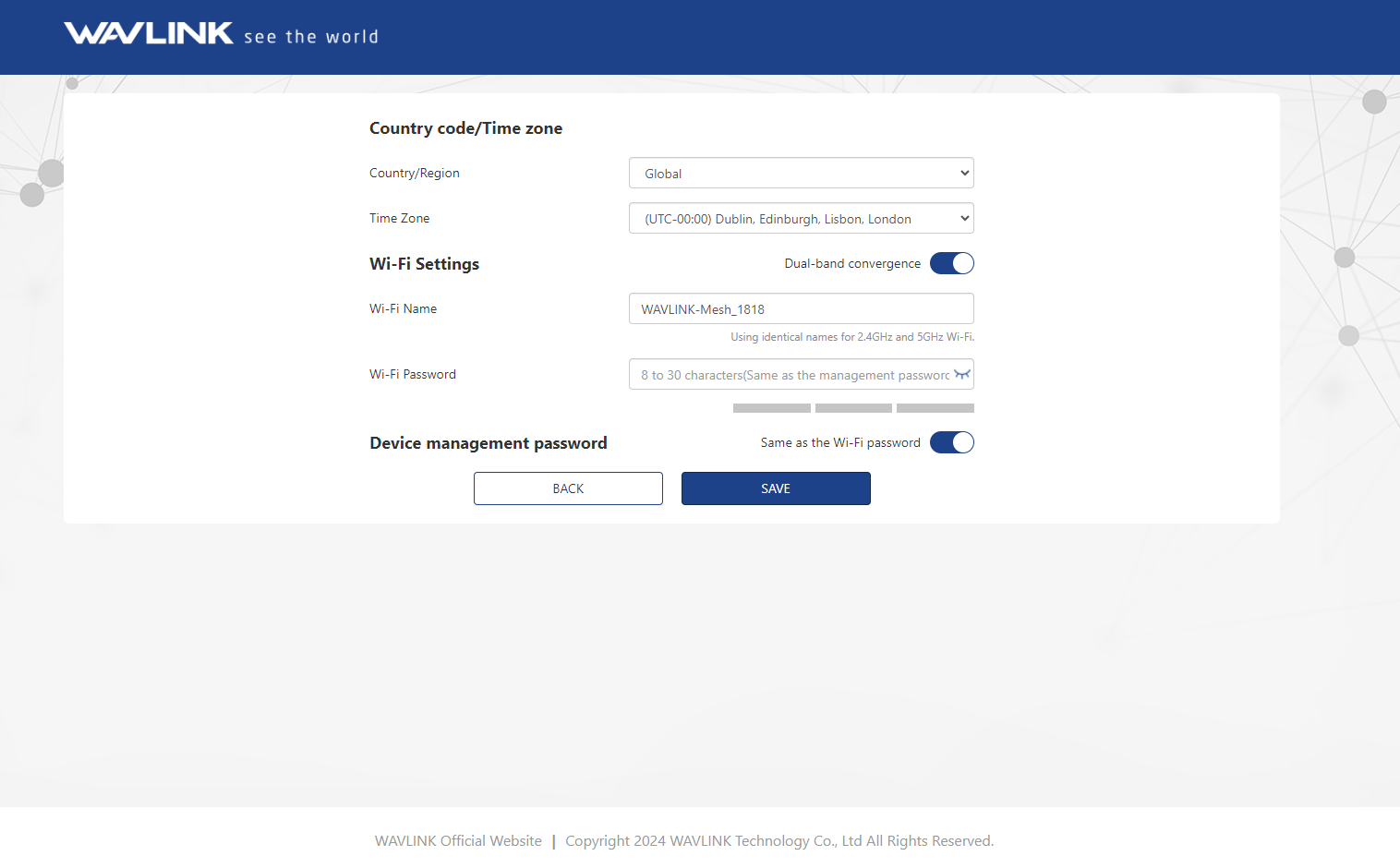

  3. Choose your Country code/Time zone, and configure the WiFi Name and create a new Wi-Fi Password for 2.4G and 5G band network.

  4. After setting, click SAVE.

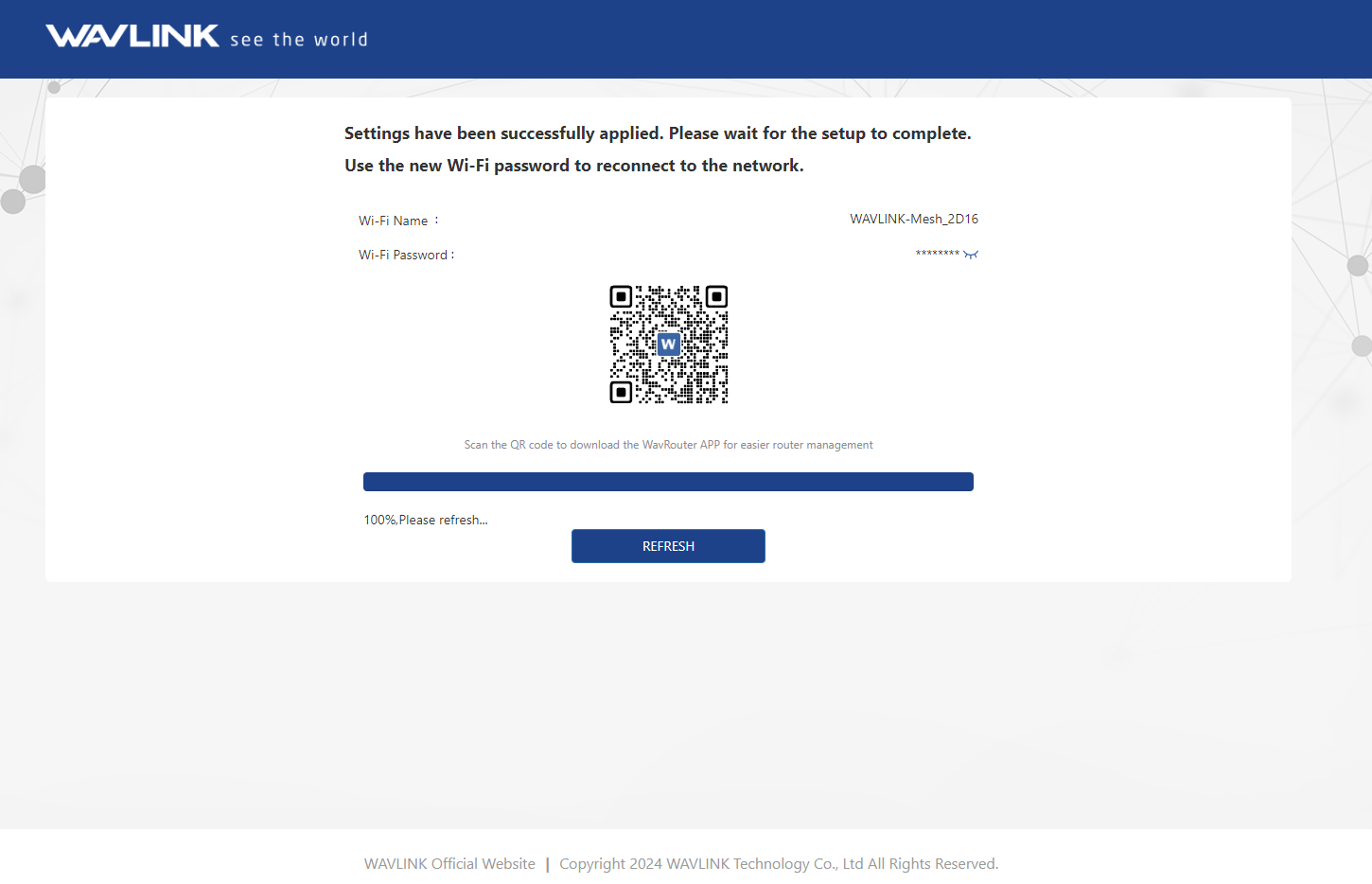

  5. Wait the setup to complete, after clicking REFRESH you can use the new Wi-Fi Password to reconnect to the Wi-Fi. Note: 1.lf you want same WiFi Name/Password for your 2.4G and 5G network, open Dual-band convergence. 2.If it is necessary for you to set the device's administration password same as the WiFi password, choose Same as the Wi-Fi password.


Repeater Mode​

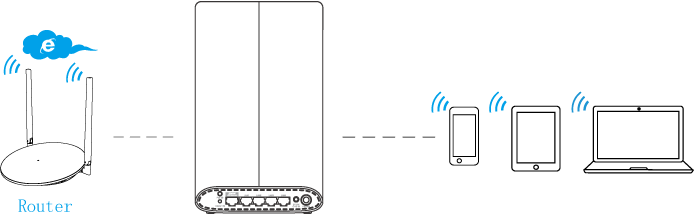

  1. lf you want to change the router mode into repeater mode to get a larger Wi-Fi coverage, put the device in the range of the existing Wi-Fi network.
  2. Launch a browser from your computer or smart phone and enter http://wavlogin.link in the address field not search bar.

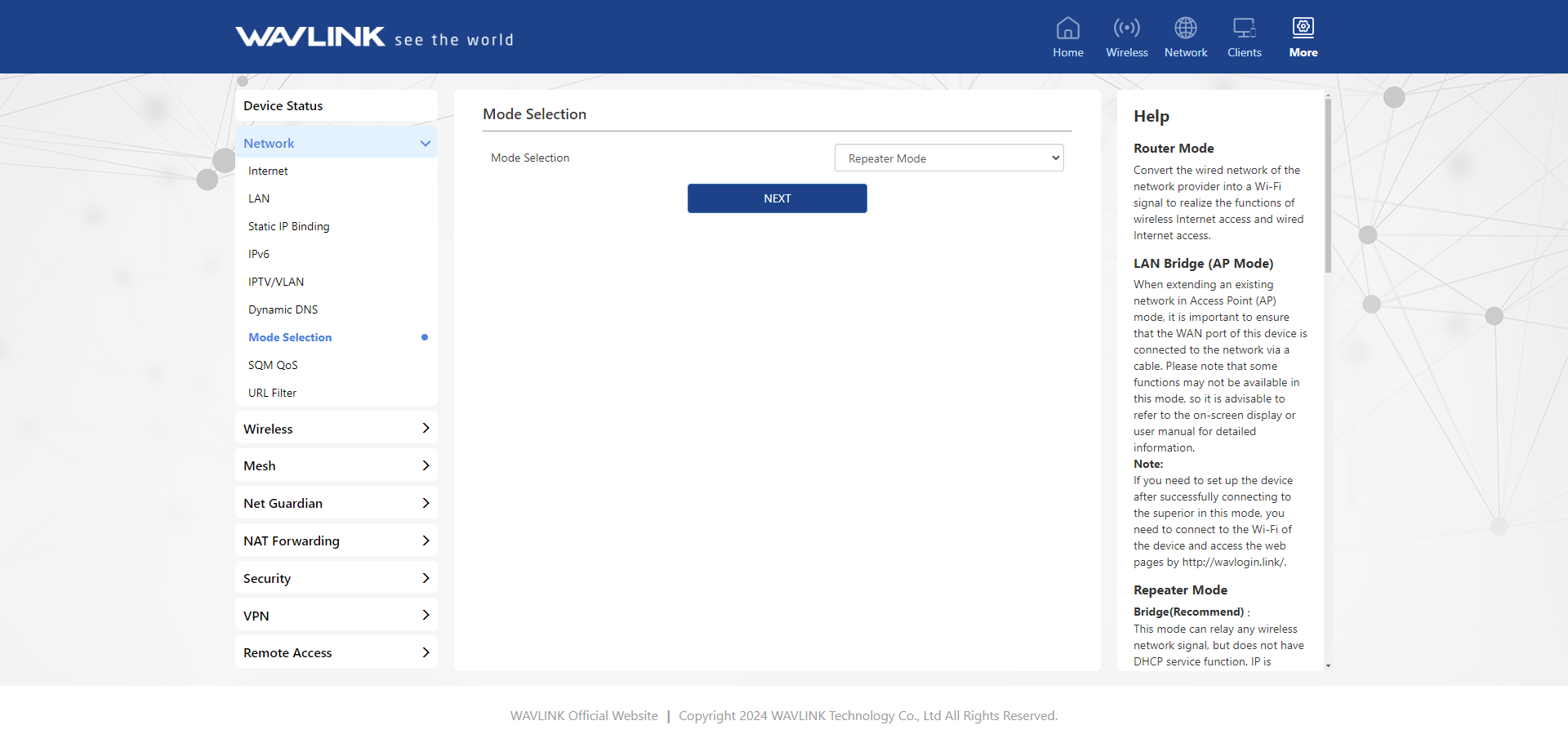

  3. Click More>Network>Mode Selection, choose Repeater Mode from the Mode Selection list.Then click NEXT.

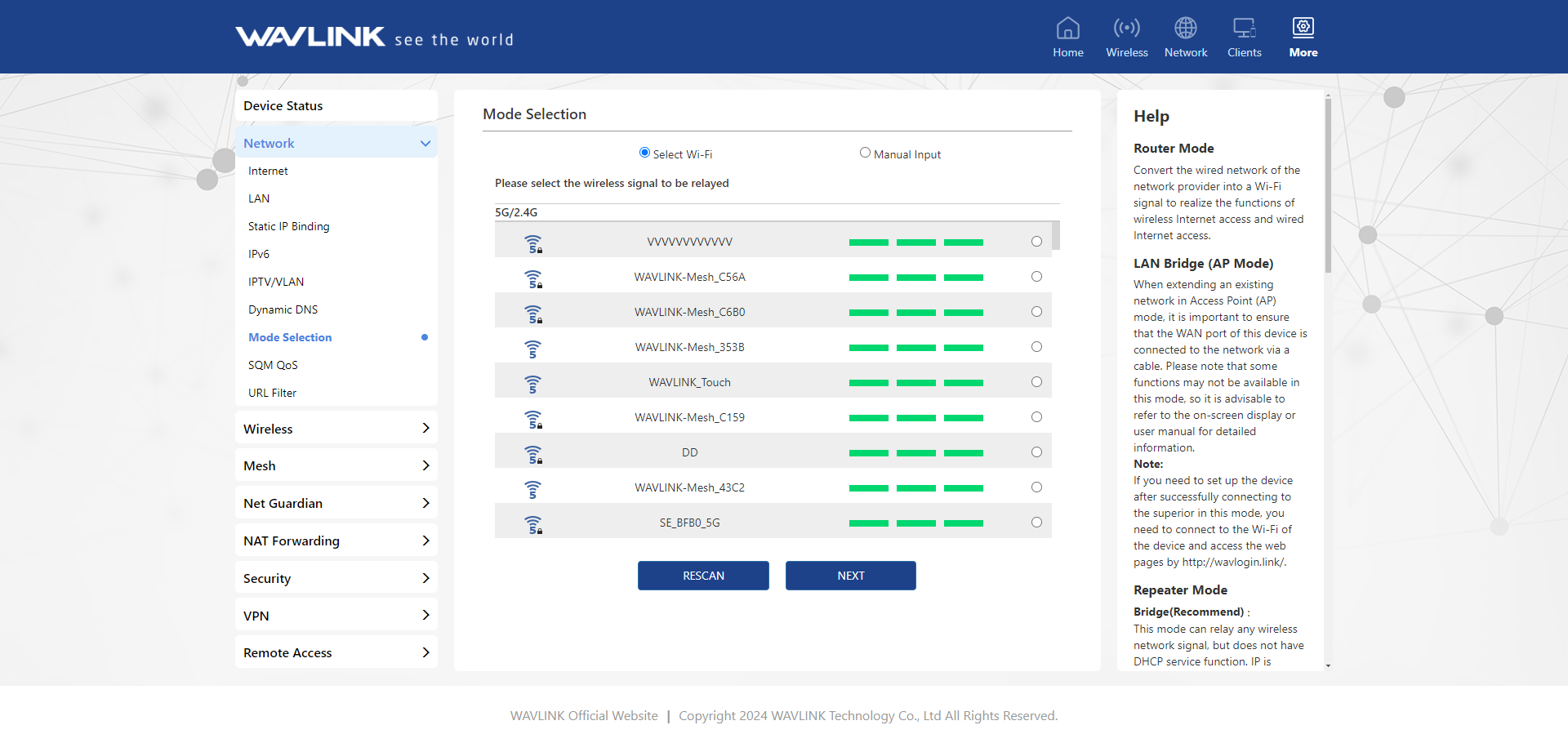

  4. Select the Wi-Fi signal of the host router and click NEXT, if you didn't find the signal, click RESCAN. lf the SSlD(network name) is hidden, try to follow the guide of Manual input(Point 6).

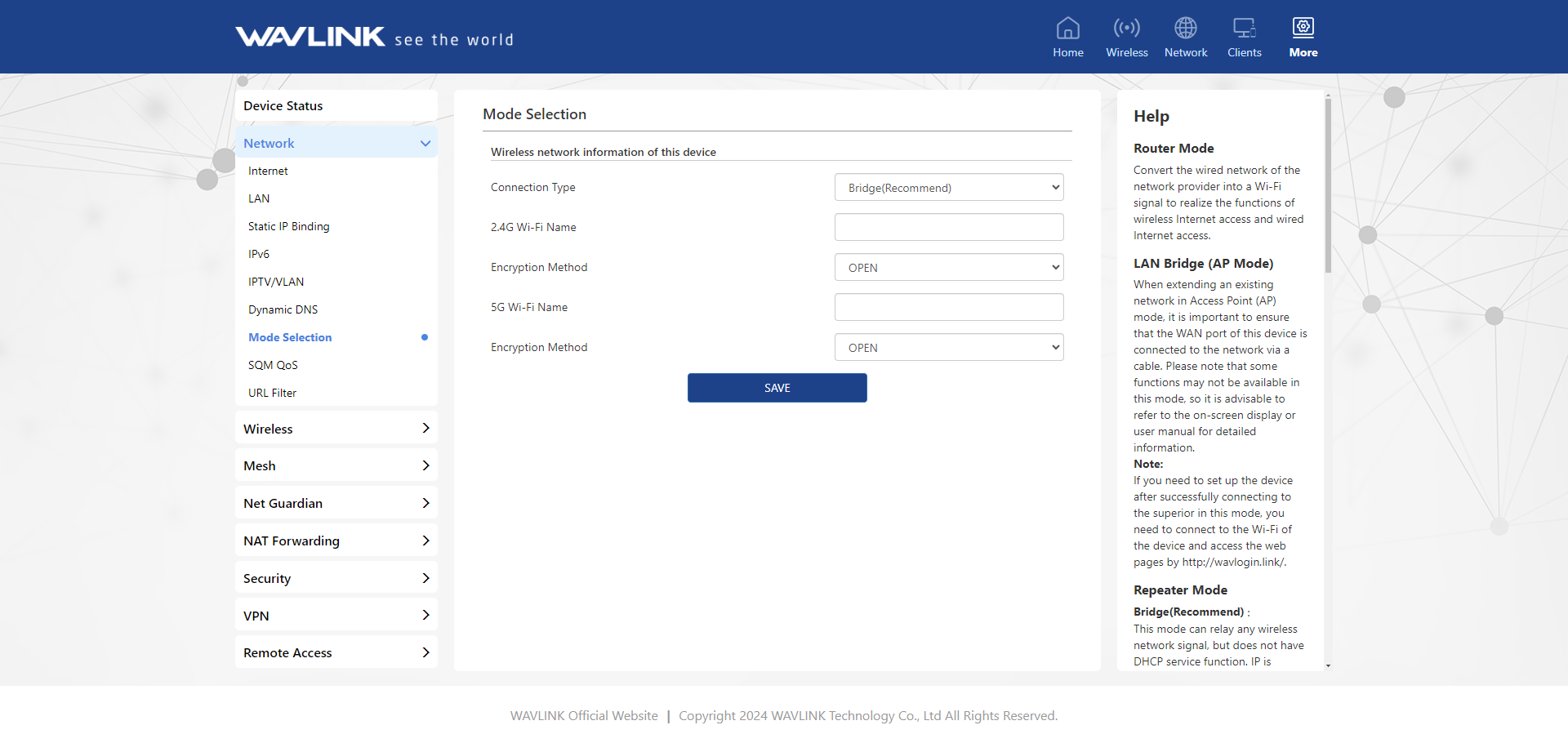

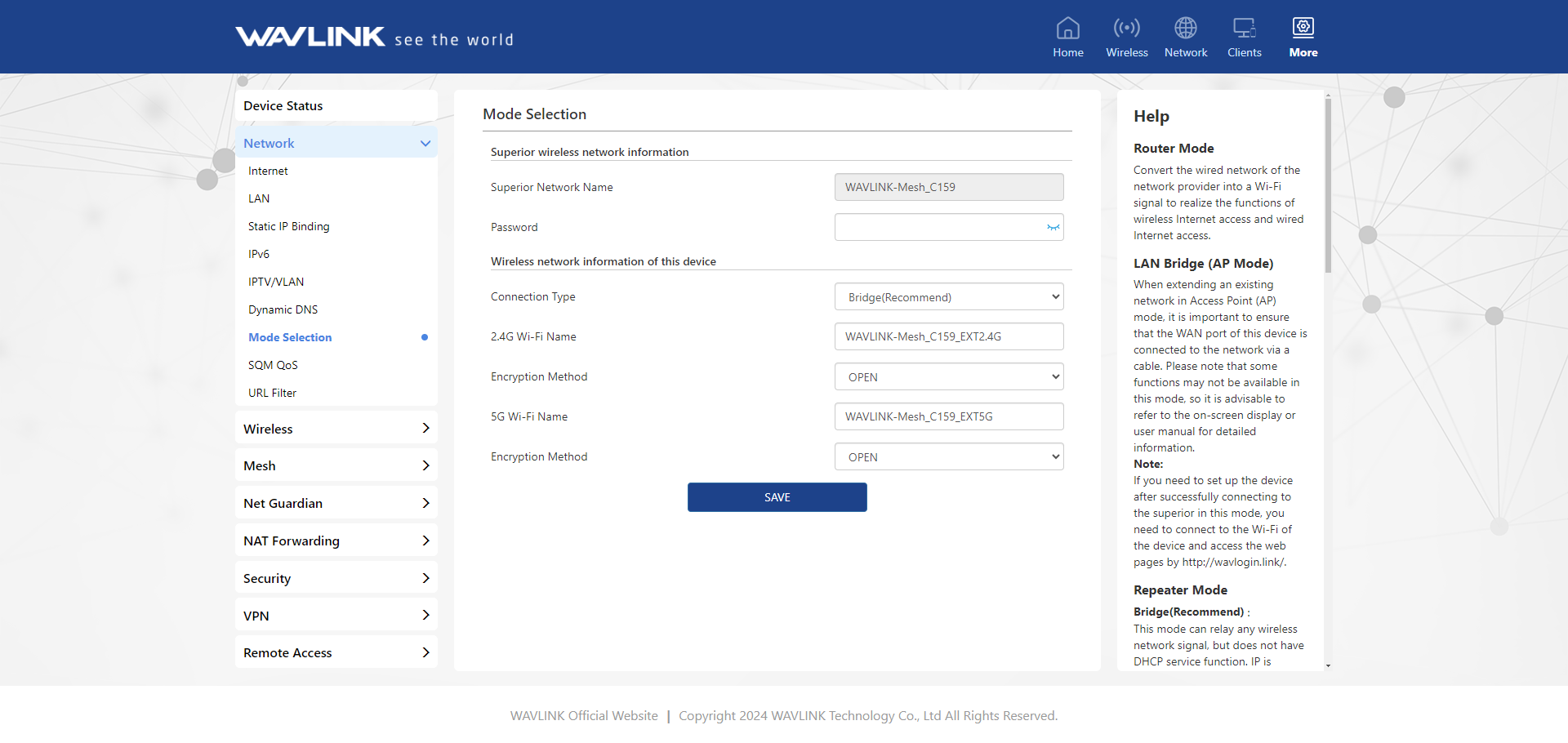

  5. Follow the wizard to set the network information of the host router and this product.

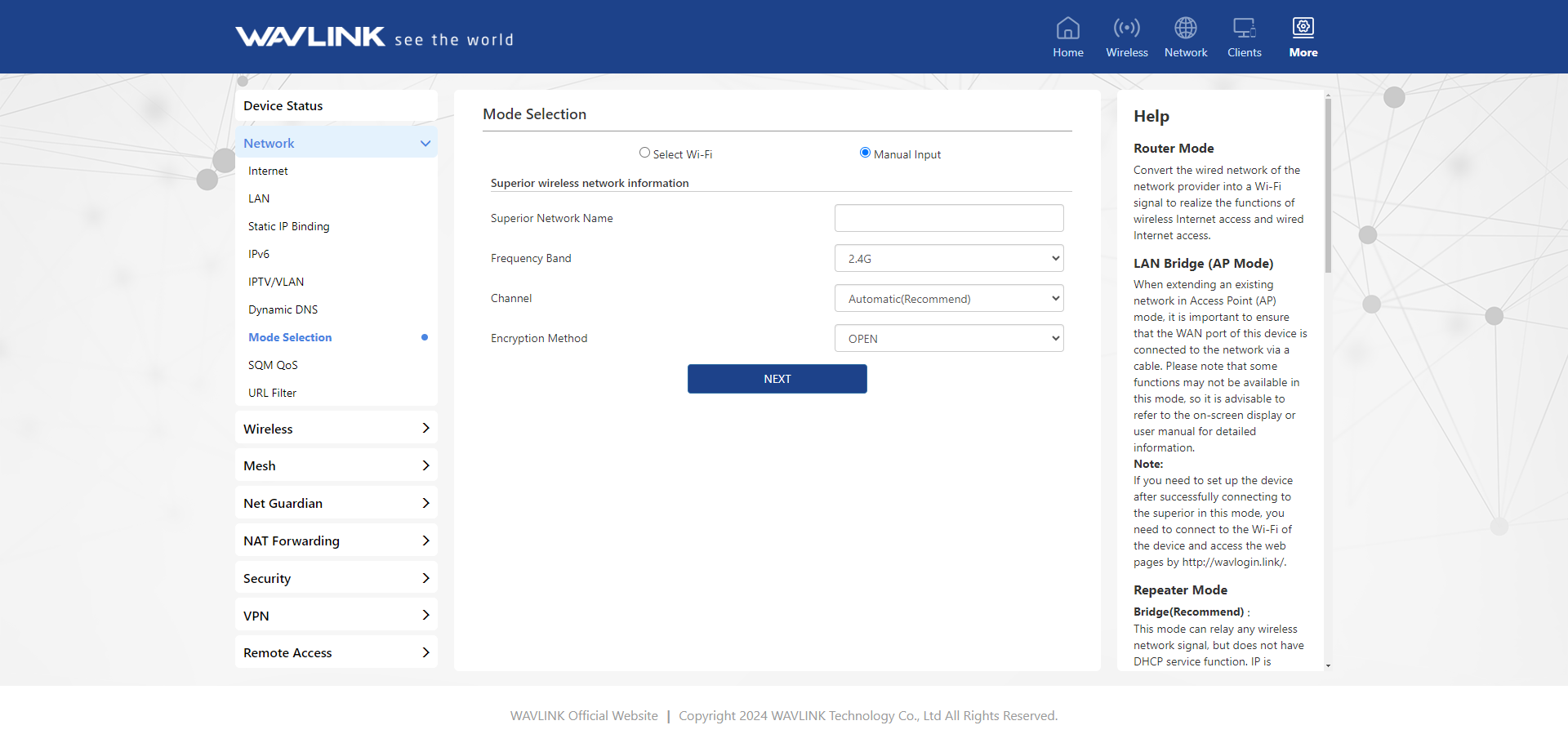

  6. lf the SSlD(network name) of the host router is hidden, please try to select Manual input and enter the SSlD of the host router manually.
  7. After setting the wireless information of the device, click SAVE.
  8. Enjoy the network by reconnecting to the WiFi.

AP Mode​

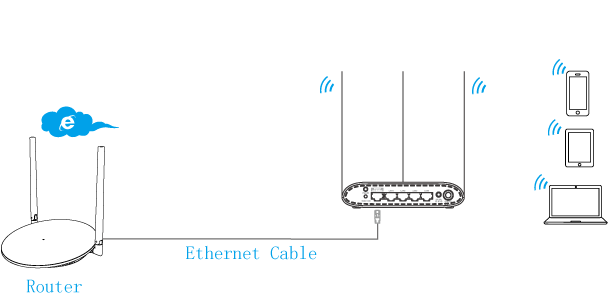

  1. lf you want to change the router mode into AP mode, connect this device's WAN port to the host router's LAN port.

  2. Launch a browser from your computer or smart phone and enter http://wavlogin.link in the address field not search bar.

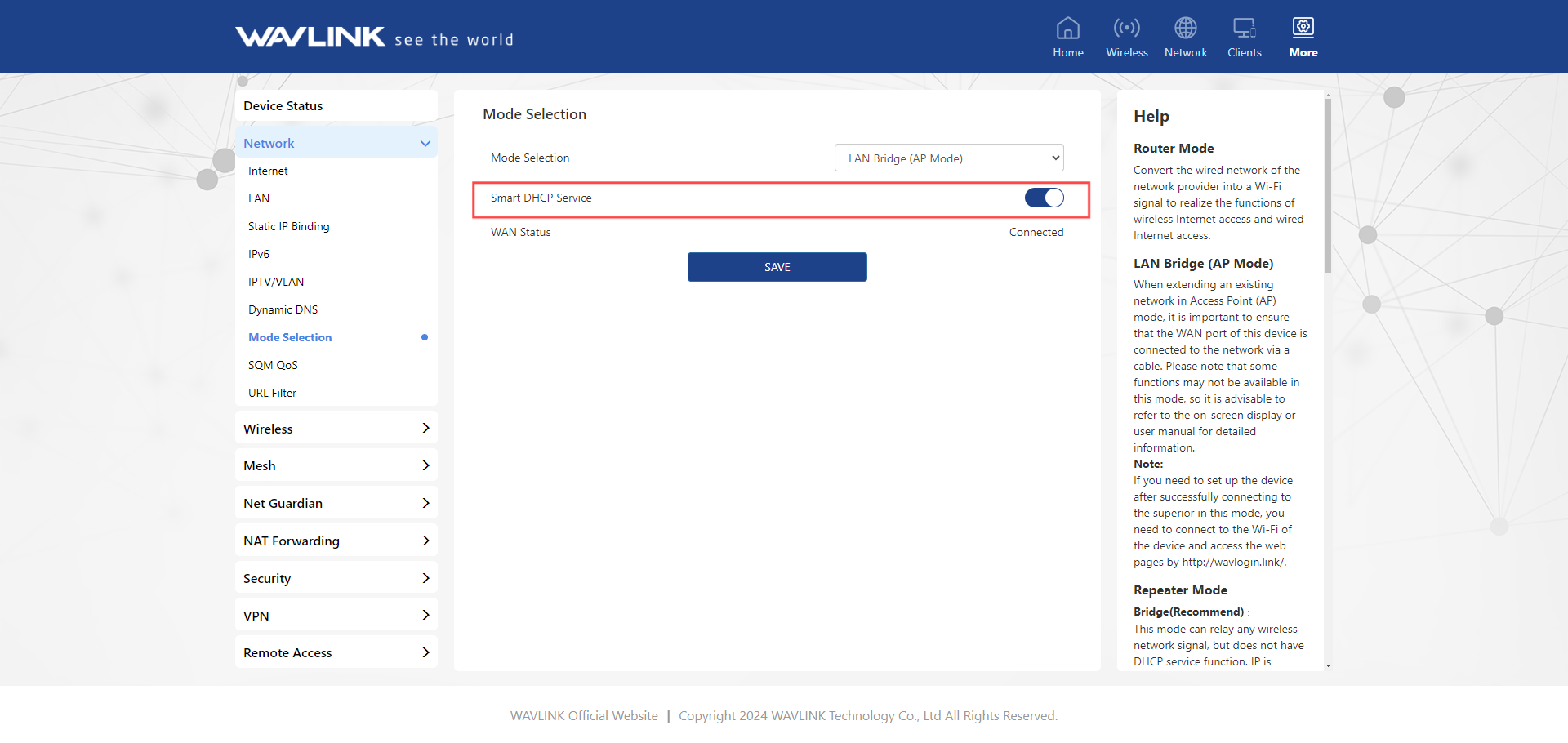

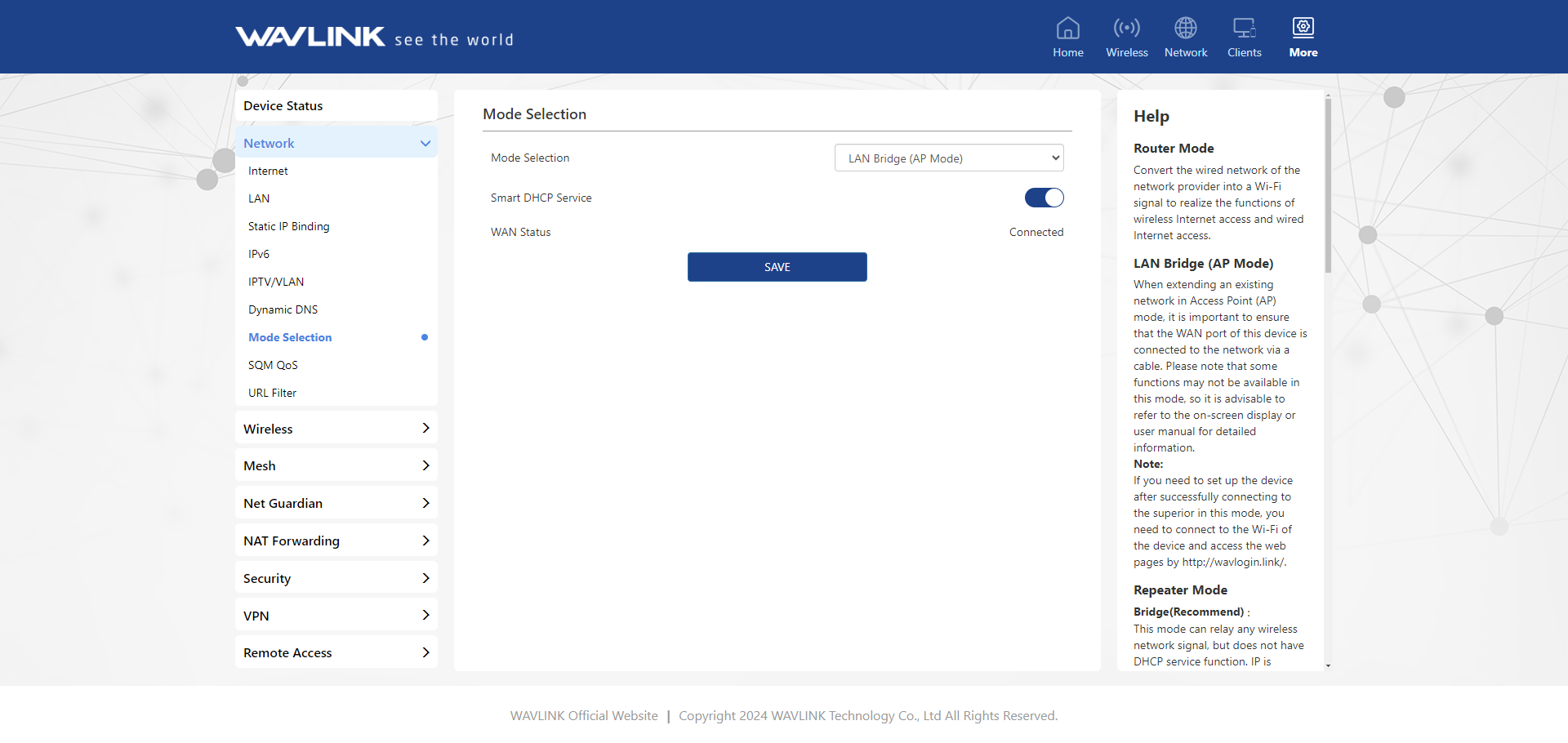

  3. Click More>Network>Mode Selection, choose LAN Bridge(AP Mode) from the Mode Selection list. Then click SAVE. Note: By turning on Smart DHCP Serve, the router will automatically configure the lP service when no higher-level device is connected. lf you do not need automatic lP configuration, you can turn off it.

  4. Enjoy the network by reconnecting to the WiFi.
