Chapter 1 Overview
This chapter contains the following sections :
• Overview
Overview

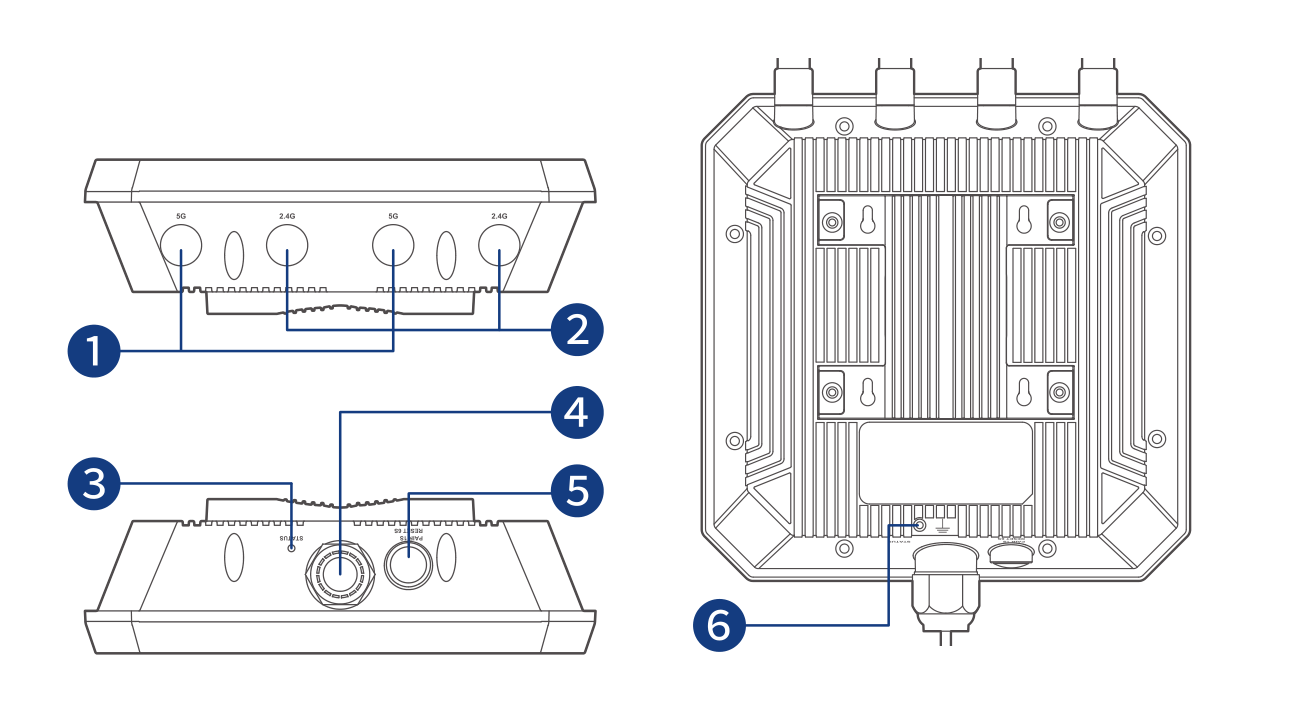

Hardware Overview
① 5G Antenna
② 2.4G Antenna
③ Status LED
④ WAN/LAN Port(PoE)
⑤ Pair/Reset Button
⑥ Grounding Terminal
Reset Button
Press and hold for 1-2 seconds to pair with the existing Everything Mesh Wi-Fi system.
After the device is powered on, and completes startup. Press and hold for 6 seconds until the indicator is fast flashing, and then release the button. The device will restore to factory settings.
Basic Info
2.4G SSID : WAVLINK-AX_XXXX
5G SSID : WAVLINK-AX_5G_XXXX
Default IP : http://192.168.30.1
Login : http://waplogin.link
LED Indicator
| Mode | LED Status & Description |
|---|---|
| Mesh AP/Mesh Router Mode | Slow blinking: The device is in pair. Solid on: The device has connected to the Internet. Fast blinking: No Internet. |
| Repeater Mode | Slow blinking: The device has connected to the upstream router but no access to the Internet. Solid on: The device has connected to the upstream router and the Internet has been connected. Fast blinking: The device has not connected to the upstream router. |
| Mesh Extender Mode | Slow blinking: The device has connected to the upstream router but no access to the Internet. Solid on: The device has connected to the upstream router and the Internet has been connected. Fast blinking: The device has not connected to the upstream router. |
| AP Mode | Solid on: The device has connected/disconnected to the Internet. |
