Chapter 1 Overview

• Overview

• Introduction

• Features

• System Requirements

• In the Box

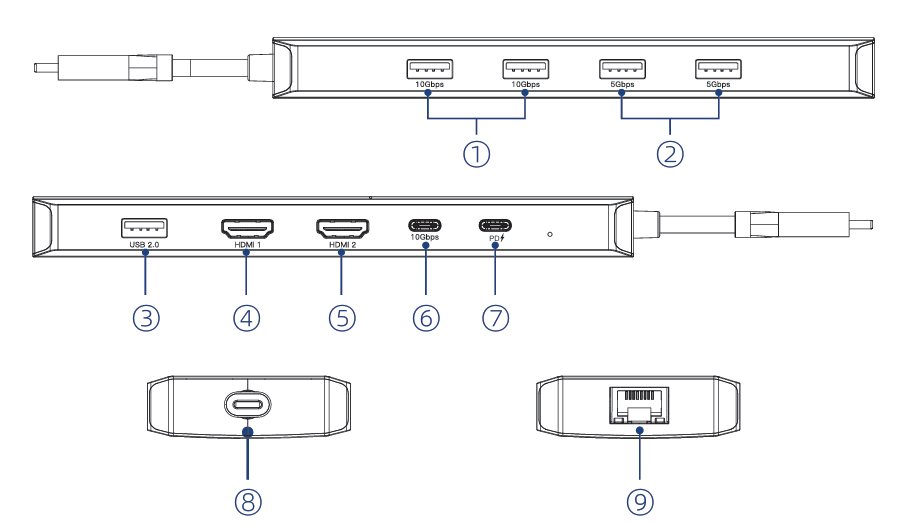

Overview​

① USB-A Port (10Gbps)

② USB-A Port (5Gbps)

③ USB-A Port (USB 2.0)

④ HDMI 1 Port (4K@30Hz)

⑤ HDMI 2 Port (4K@60Hz)

⑥ USB-C Port (10Gbps)

⑦ USB-C Port (host, 85W)

⑧ USB-C Plug

⑨ Gigabit Ethernet Port

Introduction​

It is a multi-port hub or travel dock that provides your laptop with a powerful working station and facilitate traveling. Two HDMI work for dual 4K display, one USB-C works for PD85W charging, another USB-C works for 10G data transmission, five USB-A work for more USB devices’ connectivity and one Gigabit Ethernet port works for wired Internet.

Features​

  • Two HDMI support dual 4K resolution, HDMI 1 supports resolution up to 4K@30Hz, and HDMI 2 supports resolution up to 4K@60Hz.
  • One USB-C port supports PD 85W charging and transfers speed up to 10Gbps.
  • Two USB-A ports transfer speed up to 10Gbps, and two USB-A ports transfer speed up to 5Gbps.
  • One RJ45 Gigabit port provides stable and high-speed network and is backward compatible with 100/10Mbps network.
  • Plug and Play, is easy to use.

System Requirements​

  • Microsoft Windows 7/8/10/11
  • Mac OS 10.8 or later（Can extend a different display ONLY）
  • Android
  • Requires your computer/smartphone has at least one USB-C port with full-function

In the Box​

  • 1 × USB-C 10G Dual 4K 10-in-1 Hub
  • 1 × Quick Start Guide
