Chapter 1 Basic Information
This chapter introduces the docking station's features, appearance, and some basic information.
It contains the following sections :
Specification
- One DP and two HDMI work for triple video output, supporting single DP Max. 4K@144Hz/8K@30Hz or dual 4K@60Hz.
- One PD3.0 USB-C upstream port provides 100W upstream charging for the laptop.
- Two USB-C transfer speed up to 10Gbps, and are backward compatible with USB 3.0/2.0.
- Four USB-A transfer speed up to 5Gbps, one of them supports BC1.2 fast charging, and are compatible with USB 2.0/1.1.
- One 2.5Gbps LAN port for a stable and fast wired network, and is backward compatible with 1000/100/10Mbps network.
- One 3.5mm 4-pole jack for audio output and input.
In the Box
- 1 x USB-C 8K@30Hz/4K@144Hz Triple Display Docking Station
- 1 x USB-C to USB-C 1m Cable (E-mark)
- 1 x 20V/6.5A Power Adapter (130W)
- 1 x AC Power 1.5m Cable
- 1 x Quick Start Guide
System Requirement
- Windows 10/11
- MacOS 10.15 or later (Can extend a different display ONLY)
- Requires that laptop supports PD 3.0
- Laptop with full-functional USB-C port (Power Delivery + DisplayPort Alt Mode + Data Transfer)

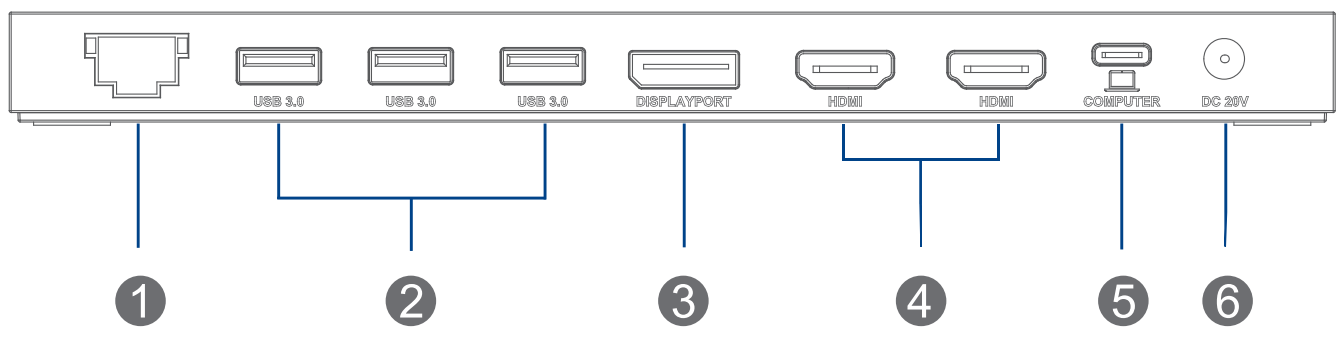

Overview
1.2.5G Ethernet port
2.5Gbps USB-A port
3.DisplayPort
4.HDMI port
5.Upstream USB-C port
6.DC IN (20V/6.5A)
1.Power button
2.5Gbps USB-A with BC1.2 charging
3.10Gbps USB-C
4.3.5mm 4-pole jack
