Chapter 1 Overview
This chapter contains the following sections :
Overview
Package Content
This docking station includes the following items, please check it before using.
- USB-C Dual Display Docking Station
- USB-C to USB-C Cable
- 130W Power Adapter
- Quick Start Guide
System Requirement
CPU Processor: Core i5 or above RAM: 4GB Host Laptop: USB3.1 Gen 2 Type-C hosts supporting full-function(DP Alt Mode, Power Delivery, Data Transfer) and full -screen video playback OS:Microsoft Windows 7/8/10, Apple Mac OS 10.x or later, Chrome OS
Product Overview

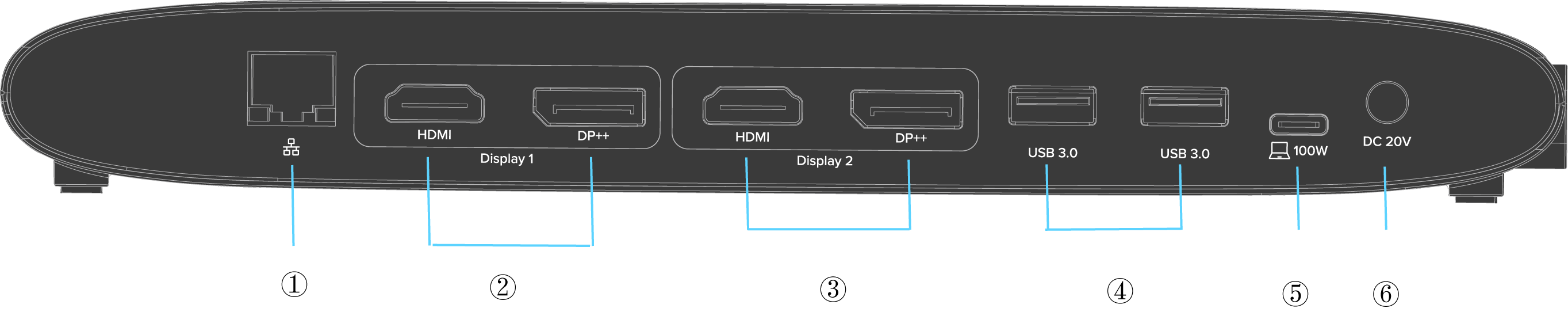

① R45 Ethernet 1000Mbps LAN
② Display 1(HDMI or DisplayPort)
③ Display 2(HDMI or DisplayPort)
④ USB-A 5Gbps
⑤ USB-C Upstream(Host, PD 100W)
⑥ DC IN(20V)
① Power LED
② USB-A 5Gbps
③ USB-A 5Gbps+BC 1.2 7.5W Fast Charging
④ 3.5mm Earphone
⑤ 3.5mm Mic
⑥ SD/TF Card Reader(312MB/s)
