Chapter 1 Overview

• Overview

• System Requirement

• Features

• In the Box

Overview​

Front Panel

① 3.5mm Audio Combo Jack

② USB-A (5Gbps)

③ USB-A (5Gbps+7.5W)

④ Power Indicator

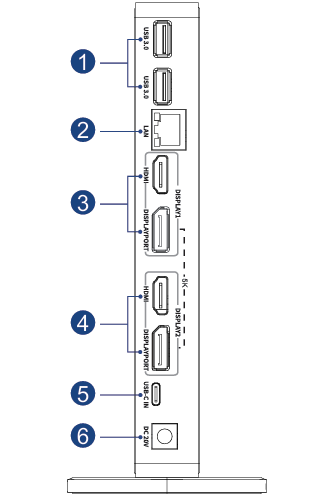

Rear Panel

① USB-A (5Gbps)

② 1GbE

③ Video Output A

④ Video Output B

⑤ USB-C Host

⑥ DC IN (20V)

System Requirement​

  • Laptop or PC with USB 3.0 port(s)
  • Windows 10/11
  • Mac OS X 10.15 or later
  • Android v5.0 Lollipop or later

Features​

  • USB-C connects to the host laptop with data transfer rate up to 5Gbps.
  • USB 3.0 port provides data transfer rate up to 5Gbps, approximately 10x faster than USB 2.0.
  • Two DisplayPort support UHD at up to 4K(4096 x 2160)@60Hz and ultra 5K(5120 x 1440)@60Hz.
  • Two HDMI ports support UHD at up to 4096 x 2160@60Hz and other lower resolutions.
  • Gigabit Ethernet port provides high speed, secure networks and is backward compatible with 10/100Mbps Ethernet.
  • 4-Pole Audio Jack solves trouble figuring out audio ports for headset and microphone.

In the Box​

  • 1 x USB-C 13-in-1 5K Dual Display Elite Docking Station
  • 1 x USB 3.0 Type-C to Type-C Cable
  • 1 x USB 3.0 Type-A to Type-C Cable
  • 1 x DC 20V Power Adapter
  • 1 x Quick Start Guide
