Chapter 1 Basic Information
This chapter introduces the docking station's features, appearance, and some basic information.
It contains the following sections :
In the Box
- 1 x USB-C Dual 5K Universal Docking Station
- 1 x USB-C to C Cable
- 1 x USB-A to C Cable
- 1 x DC 20V Power Adapter
- 1 x Quick Start Guide
Specification
- Working with USB-C, Thunderbolt & USB-A laptop.
- The HDMI port supports 4K resolution, while the DisplayPort interface delivers 5K resolution.
- USB-A and USB-C ports are convenient for both USB-based peripherals.
- Gigabit Ethernet port provides fast and stable network for video streaming, online gaming, and other online activities.
- The 4-Pole combo audio jack provides the convenience to connect your microphone and headset.
- The compact and vertical design saves more space and helps to keep everything on your desk more organized.
- The upstream USB-C port supports data transfer only and does NOT provide device charging functionality.
System Requirement
- Windows 10/11
- Mac OS 11 to the latest
- Chrome OS
- Ubuntu
- Android

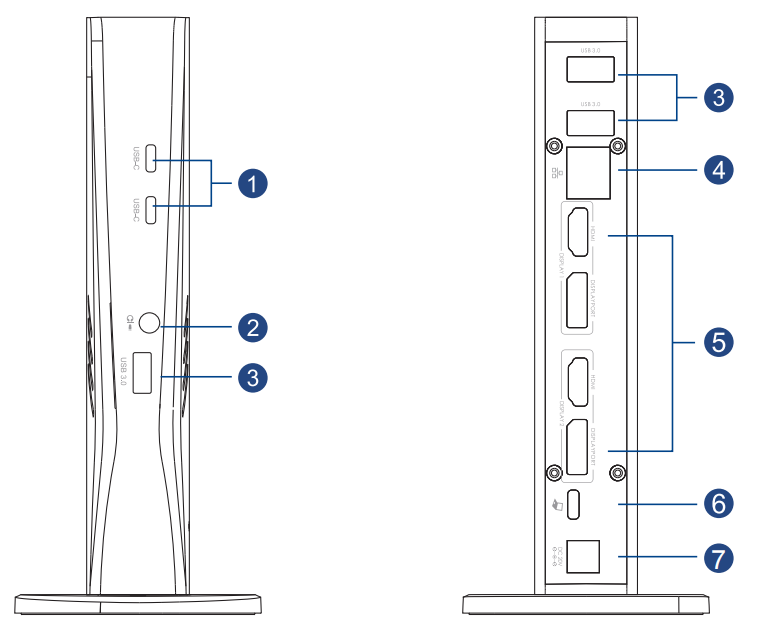

Overview
- ①.USB-C(5Gbps)
- ②.4-Pole TRRS Jack(Mic in & Audio out)
- ③.USB-A Port(5Gbps)
- ④.Gigabit Ethernet Port(10/100/1000Mbps)
- ⑤.DISPLAY 1/2(HDMI or DisplayPort)
- ⑥.USB-C Upstream(Host)
- ⑦.Power Jack(DC 20V)
