Chapter 1 Basic Information
This chapter introduces the docking station's appearance and some basic information.
It contains the following sections:

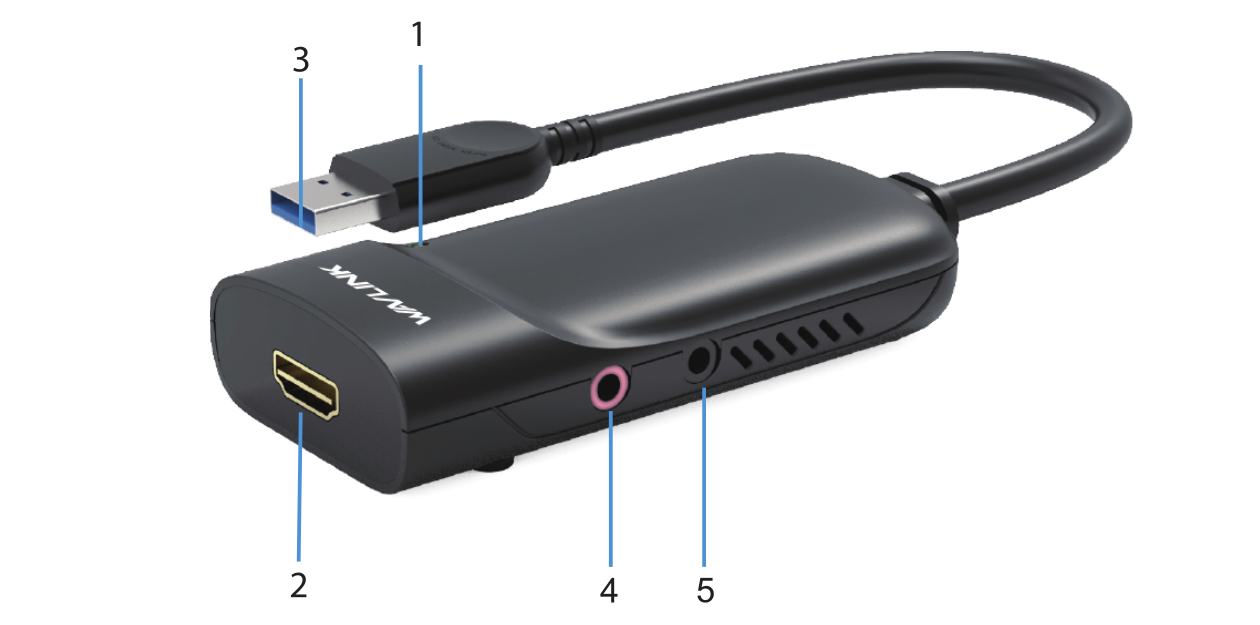

OVERVIEW
① LED Indicator: Indicates the working status.
② HDMI: Support resolutions up to 2048 x1152@60Hz.
③ USB 3.0: Provide data transfer rate up to 5Gbps.
④ Pole Phone Jack: Connect to the microphone.
⑤ Earphone Port: Connect to the headset.
FEATURES
- Turn any monitor, projector or HDMl compatible HDTV into a USB connected display.
- The HDMI port provides images with high resolution up to 2048 x1152@60Hz.
- USB3.0 port offers flexible connectivity with maximum 5Gbps data transfer.
- Extend up to 6 display units on Windows and 4 display units on Mac
- Support Extended and Mirror modes.
IN THE BOX
-
1xUSB 3.0 to HDMI 2K Adapter
-
1 xUSB-A to USB-C Converter
-
1 x Quick Start Guide
SYSTEM REQUIREMENT
-
Windows 7, 8, 10 or later
-
Mac OS X 10.11 or later
