Chapter 1 Overview
This chapter contains the following sections :

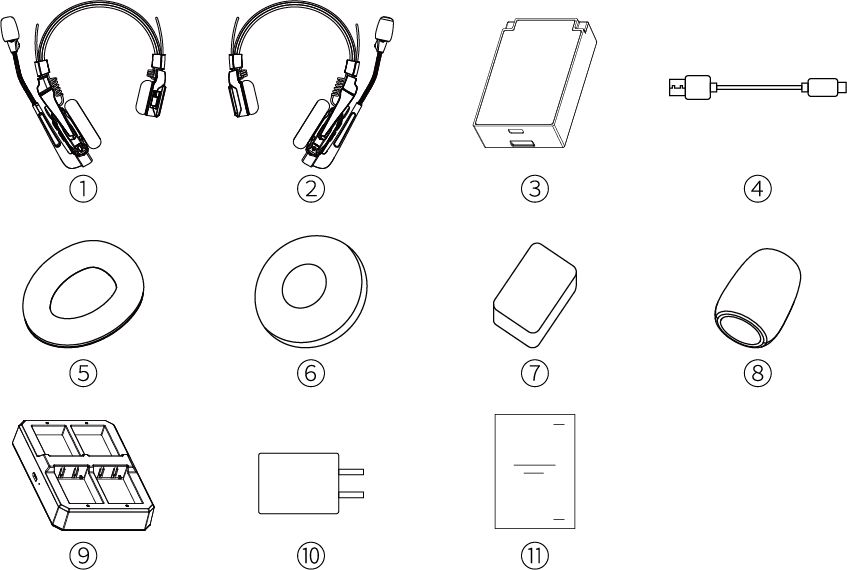

Package Content
There are the following items in the box, please check before using:
① 1*Master Headset
② 1*Remote Headset
③ 4*Detachable Lithium Battery
④ 1*USB-A to USB-C Cable
⑤ 2*Headset Ear Cushion
⑥ 2*Round Foam Ear Cushion
⑦ 2*On-ear Foam Cushion
⑧ 2*Microphone Cover
⑨ 1*4-Seater Battery Charging Station
⑩ 1*USB-C Power Adapter (for Battery Charging Station)
⑪ 1*Quick Start Guide
Product Overview
① SYS/Status Indicator
② Power Button
③ Volume-/Clear
④ Volume+/Pair
⑤ Mute
⑥ Audio Indicator
⑦ Type-C Port
⑧ Battery Compartment
LED Indicator
| Indicator | Status | Description |
|---|---|---|
| SYS/Status | Blue on | The Master/Remote Headset has been enabled and normally connected to the Remote/Master (Full Charged). |
| SYS/Status | Flashing blue | The Master/Remote Headset has been enabled and not normally connected to the Remote/Master Headset. |
| SYS/Status | Red on | The battery level is below 20%, it needs to be charged. |
| SYS/Status | Green on | The battery is being charged, and turns off after fully charged. |
| MIC | Red on | MUTE on. |
| MIC | Green on | The MIC is working properly. |
