Chapter 1 Overview

• Overview

• Introduction

• Features

• System Requirements

• In the Box

• Tips

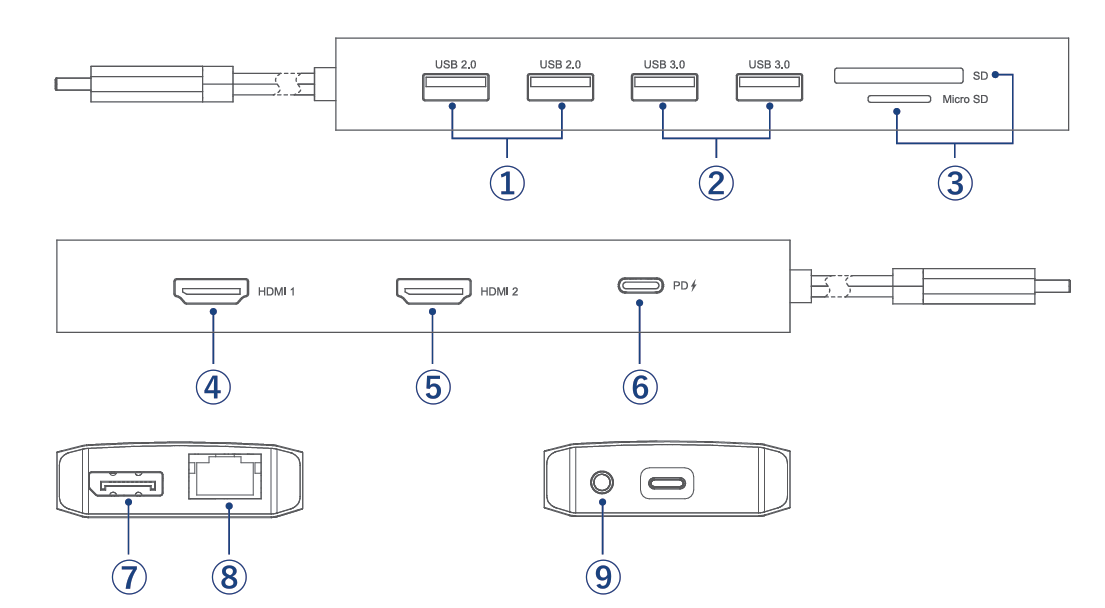

Overview​

① USB 2.0

② USB 3.0

③ SD/Micro SD

④ HDMI 1 (4K@60Hz)

⑤ HDMI 2 (4K@60Hz)

⑥ USB-C ( PD IN 100W)

⑦ DisplayPort (4K@144Hz)

⑧ Gigabit RJ45 Ethernet

⑨ 4-pole Audio/Mic

Introduction​

This triple display docking station can help your laptop connect with different devices simultaneously. Connect HDMI screens or DP screen to corresponding ports relatively and you can view HD images. SD/Micro SD card reader slots offer more choices to process data. Gigabit Ethernet facilitates your browsing experience.

Features​

  • Compatible with laptop or smartphone with USB-C port of full function with Data Transfer, USB-C Power Delivery and DP Alt Mode.
  • Two USB 3.0 ports transfer speed up to 5Gbps, and are backward compatible with USB 2.0/1.1 devices.
  • Two USB 2.0 ports transfer speed up to 480Mbps.
  • Support SST/MST.
  • Three video ports (HDMI 1+HDMl 2+DP) for triple display.
  • The USB-C port provides upstream devices with 100W power delivery, whereas maximum 85W PD to the laptop.
  • Max Ethernet speed: 1000Mbps.
  • SD/Micro SD card reader slots.
  • Audio out & Mic in 3.5mm jack.

System Requirements​

  • Microsoft Windows 7/8/10/11
  • Apple Mac OS 10.8 or later（Can extend a different display ONLY）
  • Android
  • Requires your computer/smartphone has at least one USB-C port with full-function

In the Box​

  • 1 × USB-C Triple Display Docking
  • 1 × Quick Start Guide

Tips​

  1. It would be better to conncet a USB-C power adapter to its built-in USB-C PD port to avoid insufficient load capability.

  2. HDMI and DP Ports: Only can be used when the USB-C port of your host device(laptop/smartphone/tablet) can output video.

  3. USB-A port is not compatible with Apple SuperDrive/Nintendo and it is not recommended that you charge a tablet or iPad through it.

  4. Some laptops may have a limitation on power output and it is recommended that you only connect an HDD/SSD external hard drive at a time.

  5. For security, please use the adapter or cable that is original or owns a third-party certification to charge your laptop.
