Chapter 1 Overview

More Translations Download PDF

• Overview

• System Requirements

• In the Box

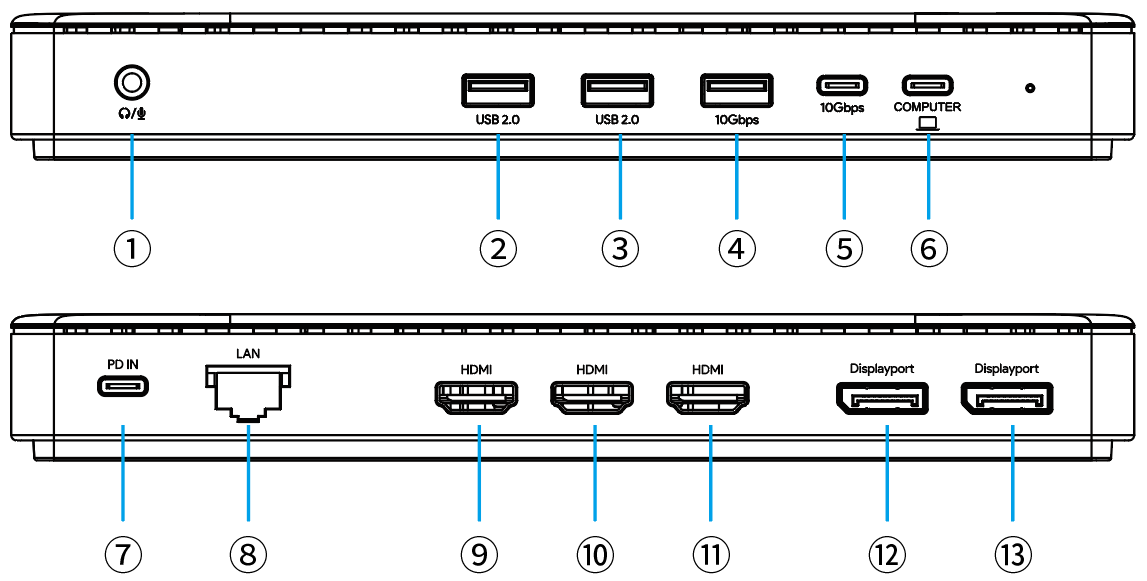

Overview

① 4-Pole Phone Jack

② USB-A 2.0

③ USB-A 2.0

④ USB-A 10G

⑤ USB-C 10G

⑥ USB-C Upstream (Host, PD 85W)

⑦ PD IN (100W)

⑧ LAN (2.5G)

⑨ HDMI

⑩ HDMI

⑪ HDMI

⑫ Displayport

⑬ Displayport

System Requirements

• Microsoft Windows 10/11
• Mac OS 13 or later
• Compatible with Thunderbot 4/3, USB3.1/3.0, and legacy USB-A port laptops

In the Box

• 1 × Triple Display 4K Docking Station
• 1 × USB-C to USB-C Cable with USB-C to USB-A Adapter(1M)
• 1 × Quick Start Guide
