Overview

• In The Box

• System Requirements

• Overview

In The Box

1×USB 3.0 Dual 2K Universal Docking Station

1×DVI Male to HDMI Female Adapter

1×USB-A to USB-C Adapter

1×Power Adapter(DC 12V)

1×USB 3.0 Type-A to Type-B Cable

1×Quick Start Guide

System Requirements

Windows 7/8/10/11

Mac OS 11.X or later

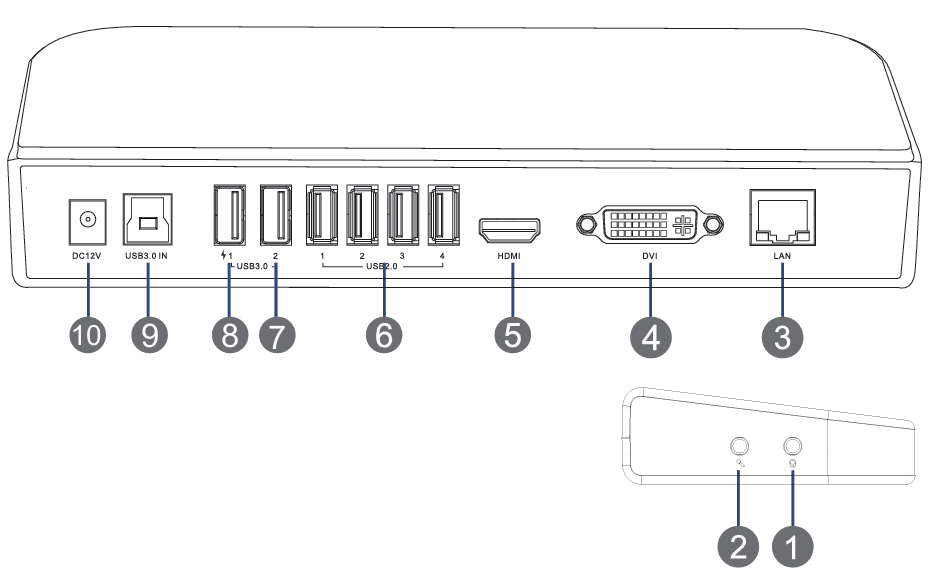

Overview

① Headphone Output

② Microphone Input

③ LAN Port (1Gbps)

④ DVI Port (2048×1152@60Hz)

⑤ HDMI Port (2048×1152@60Hz)

⑥ USB 2.0 Type-A Port

⑦ USB 3.0 Type-A Port (5Gbps)

⑧ USB 3.0 Type-A Port (5Gbps+ BC1.2 7.5W)

⑨ USB 3.0 Type-B Port (Host)

⑩ DC Power Port
