Chapter 1 Overview
This chapter contains the following sections :
Package Content
This Thunderbolt™ 4 display docking station includes the following items, please check it before using.
- 1×Thunderbolt™ 4 Triple Display Docking Station
- 1×0.8M Thunderbolt 4 Cable
- 1×Cable Holder
- 1×160W Power Adapter
- 1×AC Power Cable
- 1×Quick Start Guide
System Requirement
- PC with Thunderbolt™ 4 Windows 10/11
- Mac with Thunderbolt™ 3 Mac OS 11 or later
- Compatible with Other USB4 and MFDP Hosts(Full-functional USB-C, supports DisplayPort+USB3.1+Power Delivery)

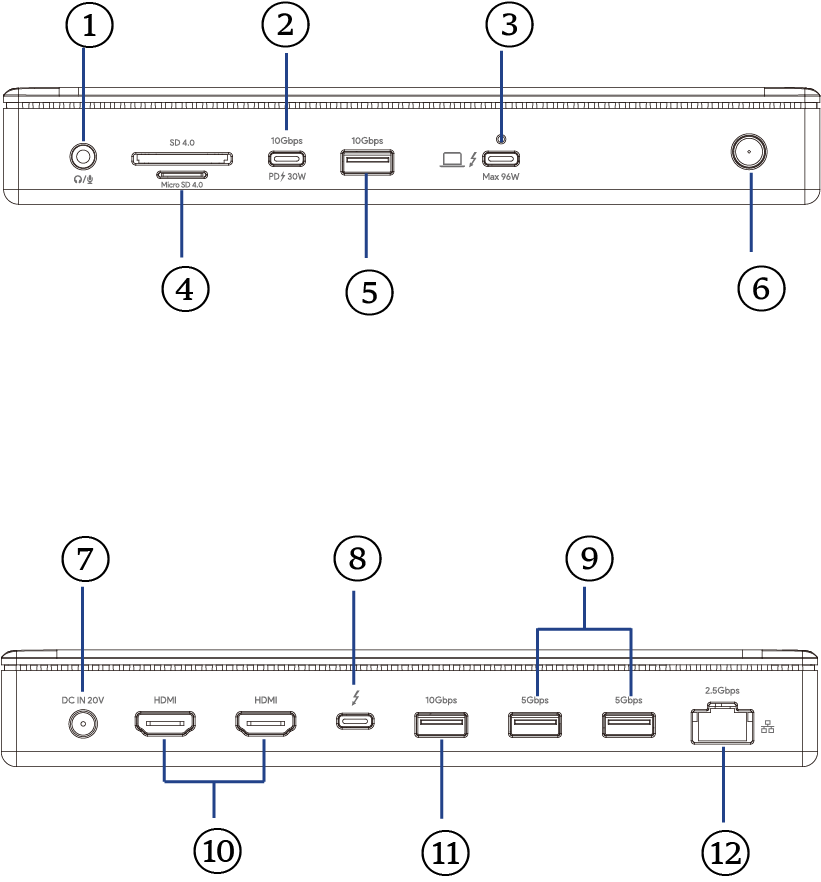

Product Overview
①Audio/Mic
②USB-C(10Gbps, PD30W)
③Thunderbolt 4 Upstream(40Gb/s, 96W)
④SD/TF Card Reader(312MB/s)
⑤USB-A(10Gbps)
⑥Power Switch&Status LED
⑦DC 20V/8A 160W
⑧Thunderbolt 4 Downstream(40Gb/s, PD15W, 8K@60Hz/4K@120Hz)
⑨USB-A(5Gbps)
⑩HDMI 2.1(8K@60Hz/4K@120Hz)
⑪USB-A(10Gbps)
⑫RJ45 2.5G Ethernet
