Chapter 1 Overview

More Translations Download PDF

This chapter contains the following sections :

• Package Content

• System Requirement

• Product Overview

Overview

Package Content

This Thunderbolt™ 5 multifunctional docking station includes the following items, please check it before using.

• Thunderbolt™ 5 Multifunctional Docking Station
• 1m USB-C to USB-C Thunderbolt™ 5 Cable(80/120Gbps)
• 20V Power Adapter
• Screwdriver
• Quick Start Guide

System Requirement

• Windows 11 or higher
• Mac OS 14.6 or later (M chip)
• Compatible with Thunderbolt 5/4, USB4,and USB 3.0 computers featuring a USB-C port

Product Overview

① Combo Audio Jack

② SD/Micro SD Card Reader(UHS-Ⅱ, SD 4.0)

③ USB-A(10Gbps)

④ TBT5 UFP(Host, Max. 140W Charging, Video)

⑤ TBT5 DFP(80Gbps, Video, PD 30W)

⑥ Status Indicator

⑦ Power Switch

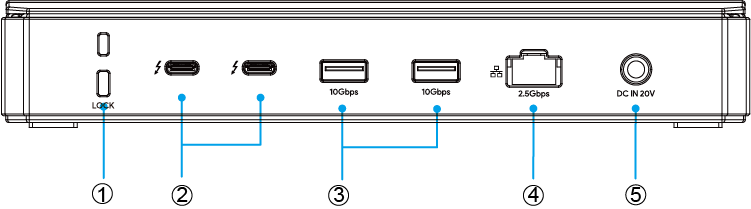

① Lock

② TBT5 DFP(80Gbps, Video, Charging)

③ USB-A(10Gbps)

④ RJ45 Ethernet

⑤ DC IN(20V)
