Chapter 1 Overview
This chapter contains the following sections :

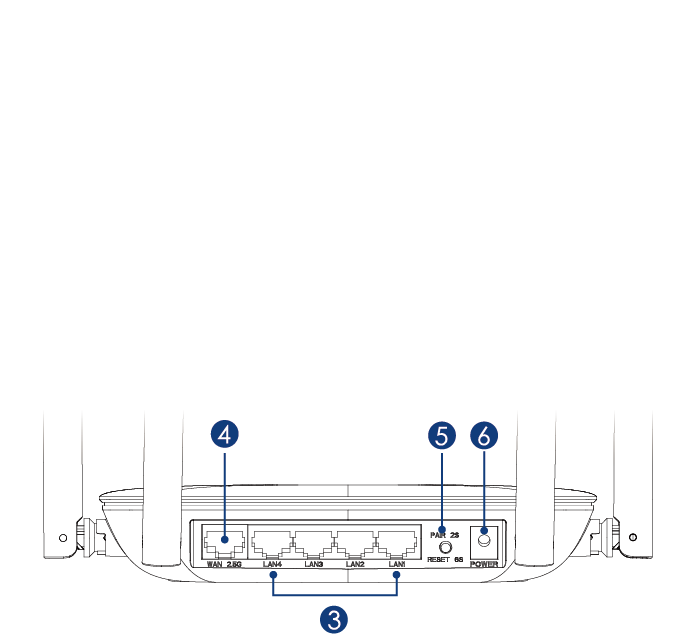

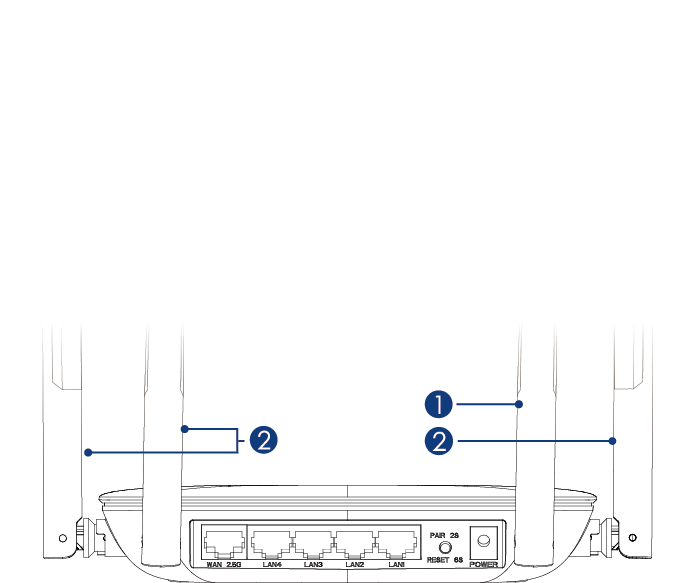

Hardware Overview
① 2.4G Antenna
② 5G Antenna
③ 4× Gigabit LAN
④ 1× 2.5G WAN
⑤ PAIR/RESET
⑥ DC IN
Basic Info
2.4G SSID:WAVLINK-Mesh_XXXX
5G SSID:WAVLINK-Mesh_XXXX
Default IP: http://192.168.20.1
Login:http://wavlogin.link
LED Indicator
| Mode | LED Status and Description(Blue) |
|---|---|
| Router Mode | Solid on:The Internet connected Fast blinking:No Internet connected Slow blinking:In pairing |
| Repeater Mode | Solid on:The Internet connected Slow blinking:Upper router connected but the Internet disconnected Fast blinking: Upper router disconnected |
| AP Mode | Solid on: The Internet connected Fast blinking:No Internet connected Slow blinking:In pairing |
Note: Press the RESET/PAIR button for more than 6s, then the light becomes solid on. Press the RESET/PAIR button for 2s, the LED will be slow blinking.
