Chapter 1 Overview
This chapter contains the following sections:

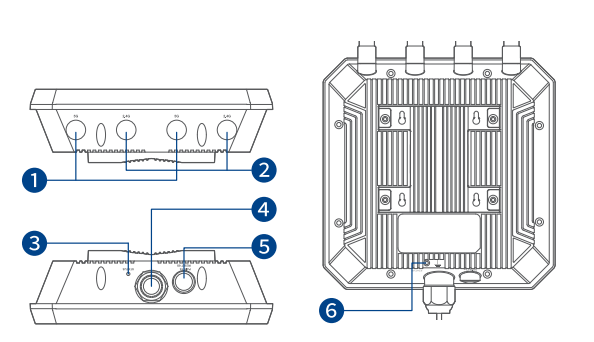

Hardware Overview
① 5G Antenna
② 2.4G Antenna
③ Status LED
④ WAN/LAN Port (PoE)
⑤ Pair/Reset Button
⑥ Grounding Terminal
Reset Button Press and hold for 1-2 seconds to pair with the existing Mesh Wi-Fi system.
After the device is powered on, and completes startup. Press and hold for 6 seconds until the indicator flashing, and then release the button. The device will restore to factory settings.
Default Parameters
Default IP: 192.168.30.1
2.4G SSID: WAVLINK-AX_XXXX
5G/AC SSID: WAVLINK-AX_5G_XXXX
LED Indicators
| Position | LED Status | Description |
|---|---|---|
| Mesh AP/Mesh Router Mode | Slow blinking | The device is in pair. |
| Mesh AP/Mesh Router Mode | Solid on | The device has connected to the Internet. |
| Mesh AP/Mesh Router Mode | Fast blinking | No Internet. |
| Repeater Mode | Slow blinking | The device has connected to the upstream router but no access to the Internet. |
| Repeater Mode | Solid on | The device has connected to the upstream router and the Internet has been connected. |
| Repeater Mode | Fast blinking | The device has not connected to the upstream router. |
| Mesh Extender Mode | Slow blinking | The device has connected to the upstream router but no access to the Internet. |
| Mesh Extender Mode | Solid on | The device has connected to the upstream router and the Internet has been connected. |
| Mesh Extender Mode | Fast blinking | The device has not connected to the upstream router. |
| AP Mode | Solid on | The device has connected/disconnected to the Internet. |
