Chapter 1 Overview
This chapter contains the following sections :
• Overview
Overview

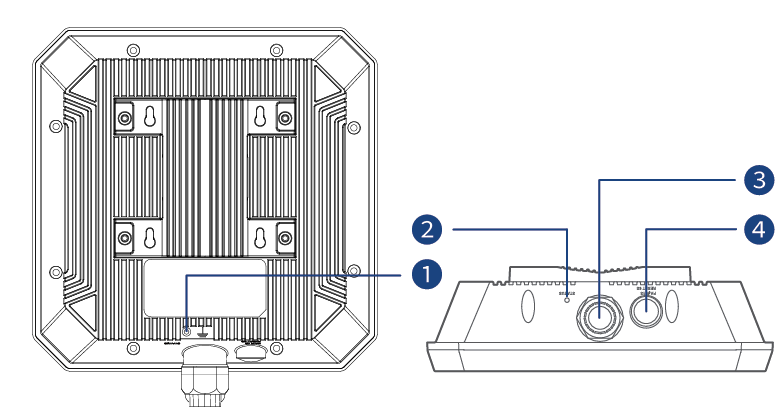

① Grounding Terminal
② Status LED
③ WAN/LAN Port (PoE)
④ Pair/Reset Button
Reset Button
Press and hold for 6 seconds to restore the device to default settings.
Pair Button
Press and hold for 2 seconds to pair with the existing Everything Mesh Wi-Fi system.
Default Parameters
2.4G SSID: WAVLINK-AX_XXXX
5G SSID: WAVLINK-AX_5G_XXXX
Default IP: 192.168.30.1
Login: http://waplogin.link
Official Website: www.wavlink.com
Technical Support: support@wavlink.com
LED Indicators
| Mode | LED Status | Description |
|---|---|---|
| Mesh AP/Mesh Router Mode | Slow blinking | The device is in pair. |
| Mesh AP/Mesh Router Mode | Solid on | The device has connected to the Internet. |
| Mesh AP/Mesh Router Mode | Fast blinking | No Internet. |
| Repeater Mode | Slow blinking | The device has connected to the upstream router but no access to the Internet. |
| Repeater Mode | Solid on | The device has connected to the upstream router and the Internet has been connected. |
| Repeater Mode | Fast blinking | The device has not connected to the upstream router. |
| Mesh Extender Mode | Slow blinking | The device has connected to the upstream router but no access to the Internet. |
| Mesh Extender Mode | Solid on | The device has connected to the upstream router and the Internet has been connected. |
| Mesh Extender Mode | Fast blinking | The device has not connected to the upstream router. |
| AP Mode | Solid on | The device has connected/disconnected to the Internet. |
